Mining industry
In mining and mineral processing operations, typical operating conditions include high-solids tailings slurry, large-particle mineral slurry, ore washing fluids, and acidic or alkaline process water commonly found in mining applications. These media are characterized by strong abrasion, a certain level of corrosion, and issues such as metal ion deposition, scaling, and solid sedimentation. As a result, slurry pumps used in mining require high wear resistance and operational stability. This is particularly evident in tailings slurry transfer, acid mine drainage treatment, and reagent preparation sections, where conventional pump designs often suffer from rapid impeller wear, efficiency decline, and unplanned downtime.
Changyu Pump provides UHB series mining slurry pumps, manufactured with higher-grade wear- and corrosion-resistant materials to meet slurry fluid pumping requirements with solids content up to 40%. With a stable structural design, the pumps are capable of maintaining reliable and continuous slurry transfer performance even under heavy-duty, continuous operating conditions.
Mining Slurry and Process Fluids
Typical media handled by UHB mining slurry pumps in mineral processing operations
Minerals slurry
Tailings slurry
Circulating cooling water
Concentrate slurry
Серная кислота
Ore washing water
Production wastewater
Acid mine drainage
- Хвостовой шлам
- Flotation Tailings Slurry
- Thickener Underflow
- Process Water Slurry
- Mineral Slurry
- Рудная целлюлоза
- Grinding Circuit Slurry
- Cyclone Feed Slurry
- Известковая суспензия
- Reagent Slurry

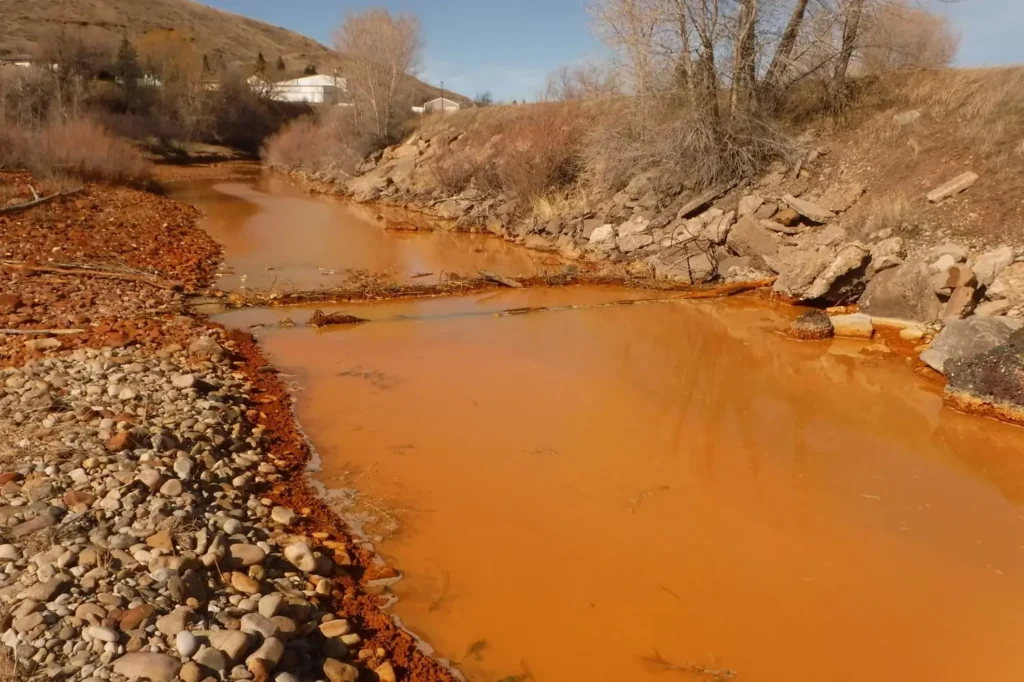

- Acid Mine Drainage
- Acidic Process Water
- Ore Washing Fluid
- Flotation Feed Slurry
- Metal Bearing Slurry
- Alkaline Process Water
Mining Slurry Pump Recommendations by Operating Conditions
Tailings and High-Solids Slurry Conditions

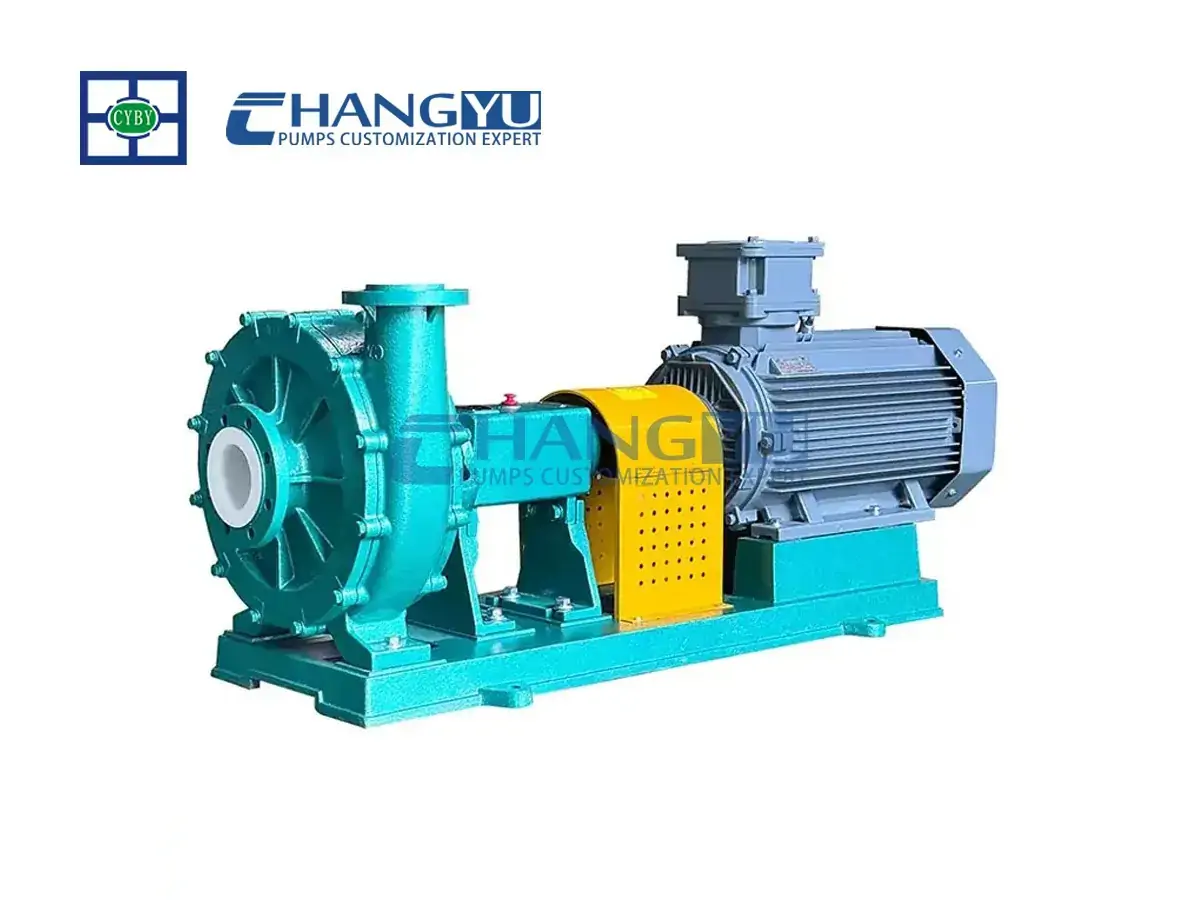

Рекомендуемый тип насоса: Коррозионностойкий насос из сверхвысокомолекулярного полиэтилена серии UHB
Причина: The UHB series slurry pumps utilize imported UHMWPE material, which offers 7-10 times the wear resistance of metals. They maintain stable pumping output in tailings slurry conditions with solid content ≤40%. Equipped with a semi-open impeller, these pumps significantly enhance particle passage, effectively reducing efficiency degradation and unplanned downtime risks caused by wear.
Chemical Reagent and Treatment Conditions

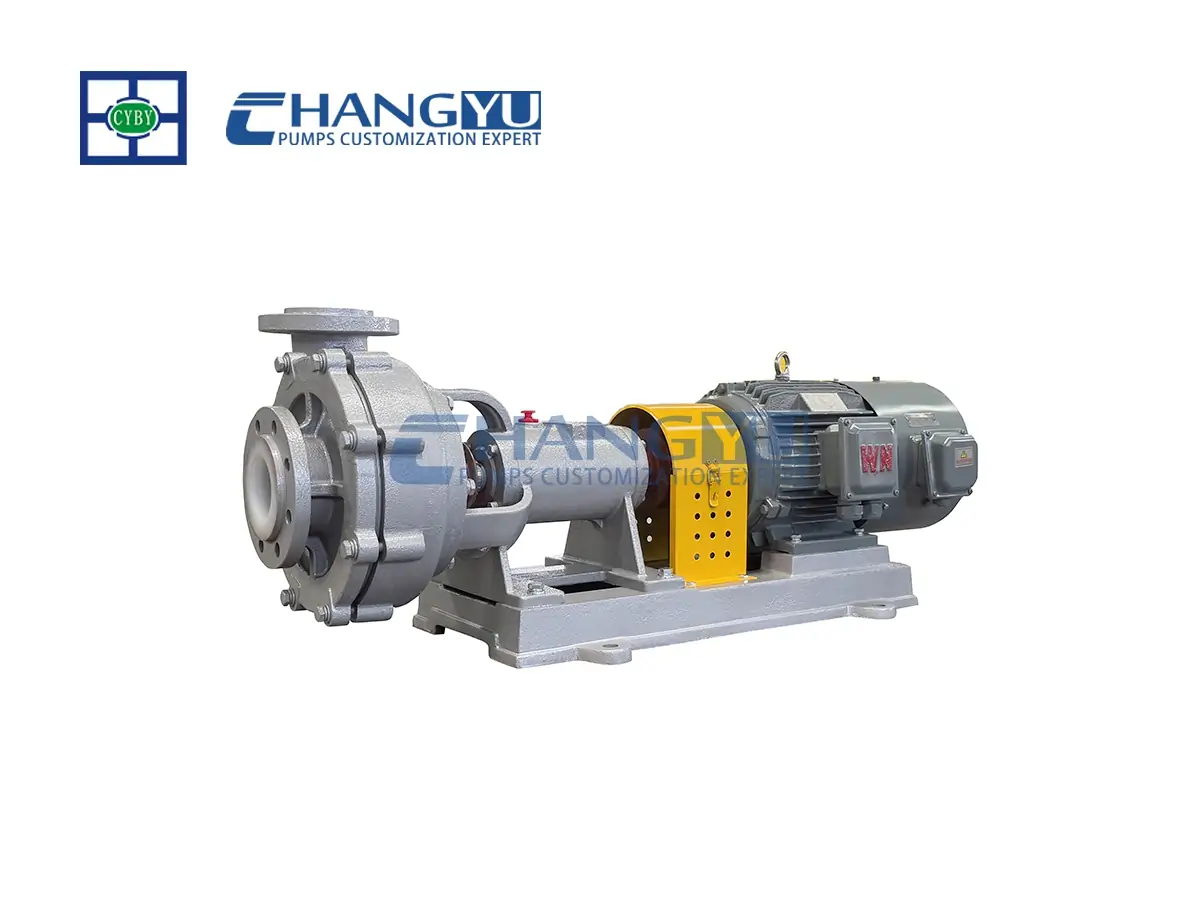

Рекомендуемый тип насоса: Corrosion Resistant Horizontal Slurry Pumps
Причина: This industrial pump utilises imported FEP/PTFE material. The pump casing and flow-through components feature an optimised design for highly corrosive fluids. The seal can be configured with a K-type dynamic seal, ensuring stable operation and leak-free performance during the conveyance of corrosive fluids.
Mining Slurry Pump Applications and Solutions
In mining and mineral processing systems, slurry pumps are widely used in key operations such as mineral slurry transfer, tailings handling, mine drainage, and reagent preparation. Different process sections involve varying media characteristics and operating modes, which place different requirements on pump wear resistance, corrosion resistance, and long-term continuous operational stability.
Changyu Pump is a professional slurry pump manufacturer based in China. We provide UHB series slurry pumps specifically designed to handle abrasive and corrosive fluid media with solids content below 40%. For fluids with different corrosive properties, elevated temperatures, or other special operating requirements, we also offer corresponding engineered solutions. Our pumps are custom-manufactured according to actual application conditions and are supplied to mining and mineral processing projects worldwide.
Tailings and High-Solids Slurry Conditions
The medium has a high solids content and highly abrasive particles.
Преимущества: Our Changyu Pumps UHB series slurry pumps utilize highly wear-resistant UHMWPE material combined with our proprietary high-temperature sintering integral molding process. All fluid-contacting components are made from this material, with thicknesses ranging from 8 to 20 mm, suitable for transporting slurries with solid content ≤40%.
Mineral Processing and Grinding Conditions
Intense media scouring and high flow velocity.
Преимущества: Our UHB series pumps feature ultra-high molecular weight polyethylene material with a thickness of 8-20mm in the flow passage, combined with a semi-open impeller to enhance wear resistance and flow capacity, enabling high-load, continuous operation.
Chemical Reagent and Treatment Conditions
The medium is corrosive, and the slurry is prone to scaling.
Преимущества: Changyu Pumps offers optional and customizable fluoroplastic material selections, including UHMW-PE, FEP, PFA, and more. We can tailor pumps to your specific operating conditions, delivering solutions that meet your industrial requirements.
Washing and Separation Conditions
Frequent changes in operating conditions
Преимущества: Our UHB series slurry pumps feature a robust structure and strong operational adaptability, maintaining stable delivery performance even under fluctuating flow rates and media conditions. They meet the continuous operation requirements of washing and sorting systems.
Вопросы и ответы
Свяжитесь с нами
Гибкие, эффективные и полностью индивидуальные решения для перекачки.
Ищете идеальное насосное решение для ваших конкретных нужд? Наша команда экспертов предлагает индивидуальные решения для центробежных насосов с учетом ваших жидкостей, условий эксплуатации и требований проекта. Получите индивидуальную консультацию и предложение уже сегодня!
Отправить запрос сейчас
Recommended Mining Slurry Pump Models
Discover a variety of wear-resistant and corrosion-resistant slurry pumps for tailings, mineral processing, chemical, and washing applications
