CYG Series High Temperature Chemical Pump
The CYG Series High Temperature Chemical Pump, also known as the High-Temperature Chemical Mortar Pump, is specifically designed for extreme operating conditions involving highly corrosive substances, high temperatures, and high solids content. At its core is an 8–20 mm-thick PFA (fusible polytetrafluoroethylene) lining, integrated with the steel body through an advanced molded sintering process, effectively eliminating the risk of fluoroplastic cracking.
Thanks to the optimal combination of a semi-open impeller and a double-ended mechanical seal/K-type dynamic seal, it can easily handle acidic and alkaline slurries containing solid particles, corrosive waste liquids, and complex chemical media. Whether for hydrometallurgy, environmental desulfurization, or the transportation of new energy feedstocks, the CYG Series is a reliable choice for ensuring process continuity and production safety.
|
Диапазон расхода : |
5~650m³/h </1525_7c4b75-a6 |
|
Диапазон голов: |
6~75m |
|
Can transport fluids containing solids : |
30%-40% |
|
Температура : |
-20-180℃ |
Введение
The CYG Series High Temperature Chemical Pump by Chuangyu Pump is a horizontal centrifugal process pump designed for conveying highly corrosive and high-temperature media. Built with a high-strength metal casing and a thick (8-20mm) PFA lining, it provides chemical resistance to most acids, alkalis, and organic solvents while maintaining stability at temperatures up to 180°C.
Equipped with a semi-open impeller and a specialized sealing system (K-type dynamic or double mechanical seal), the CYG series effectively handles liquids with a solid content of up to 40%. This robust design ensures reliable, zero-leakage performance in demanding applications such as sulfuric acid transfer, FGD systems, and lithium battery material processing. The Chuangyu Pump CYG series is a durable solution for continuous industrial operations requiring both heat and corrosion resistance.
Structure of CYG Series High Temperature Chemical Pump
The CYG Series is a practical and reliable fluid handling solution designed for demanding chemical environments, such as metallurgical slurries, hazardous acid transfer, and industrial wastewater treatment. Unlike vertical pumps, this horizontal centrifugal pump is engineered with a heavy-duty pedestal and a robust PFA-lined casing, providing exceptional mechanical stability and superior resistance to both high temperatures and abrasive solids.
The CYG Series High Temperature Chemical Pump consists of a pump casing, impeller, pump cover, shaft seal, and bearing assembly.
- Pump Body: The pump housing and the entire flow path are constructed from high-temperature-resistant PFA. The PFA lining offers excellent resistance to various corrosive chemicals, including strong acids and organic solvents, while ensuring long-lasting performance at temperatures up to 180°C.
- Крыльчатка: Made from high-temperature, corrosion-resistant PFA, the impeller ensures efficient fluid transfer while minimizing wear.
- Pump cover: Provides a secure seal to prevent internal components from being contaminated by external factors.
- Shaft seal: Prevents leakage during operation; mechanical seals or packing seals can be selected based on application requirements.
- Bearing assembly: Supports smooth and stable rotation, reduces vibration, and extends service life.
Note: Changyu Pump can customize additional product specifications and materials to meet your specific operational requirements.
Электронная почта: jade@changyupump.com
Phone: +86-13651913727
CYG Series High Temperature Chemical Pump
Technical Parameter Table
| Parameter | Specification |
|---|---|
| Pump Type | Horizontal centrifugal / mortar pump |
| Lining Material | PFA (Perfluoroalkoxy) fluoroplastic |
| Temperature Range | -20°C ~ ≤180°C |
| Max Solid Content | ≤30% (standard) / ≤40% (enhanced design) |
| Max Particle Size | ≤2 mm |
| Working Pressure | ≤1.6 MPa (standard) |
| High Pressure Option | ＞1.6 MPa (custom reinforced steel structure) |
| Sealing Type | Mechanical seal (double face) / K-type dynamic seal |
| Seal Support | API 682 flushing system (optional) |
| Impeller Type | Semi-open impeller |
| Lining Thickness | 8–20 mm (molded & sintered PFA) |
| Installation Type | Horizontal |
| Operation Mode | Continuous duty |
| Noise Level | Low vibration & low noise design |
Model Identification Code (Example)
To help Chuangyu Pump engineers select the right CYG Series High Temperature Chemical Pump for your project, please refer to the following naming convention:
Example: 50CYG
- 50: Pump Inlet Diameter (mm)
- CYG: Series Name (PFA Lined High Temperature Chemical Slurry Pump)
Notice: Due to the variety of specific gravity, viscosity, and solid content in different chemical media, please contact our technical team with your specific liquid concentration and working temperature (ranging from -20°C ~ ≤180°C).
We provide customized industrial solutions, including sealing system upgrades (Dynamic or Mechanical) and material adaptations for high-wear environments, to lower your total cost of ownership.
Электронная почта: jade@changyupump.com
Phone: +86-13651913727
Модель
| Модель | Расход (м³/ч) | Высота (м) | Скорость (об/мин) | Эффективность (%) | Power (kW, SG=1) | Impeller Diameter (mm) |
|---|---|---|---|---|---|---|
| 32CYG | 5–10 | 10–30 | 2900 | 17–28 | 1.1–3 | 100–165 |
| 40CYG | 10–15 | 10–30 | 2900 | 25–35 | 2.2–4 | 140–165 |
| 50CYG | 10–20 | 15–40 | 2900 | 20–35 | 4–7.5 | 140–190 |
| 65CYG | 10–30 | 10–60 | 1450–2900 | 20–35 | 1.5–15 | 155–220 |
| 80CYG | 40–60 | 10–80 | 1450–2900 | 22–50 | 5.5–30 | 145–400 |
| 100CYG | 50–110 | 10–80 | 1450–2900 | 20–50 | 15–55 | 160–400 |
| 125CYG | 100–140 | 6–80 | 1450–2900 | 20–48 | 11–75 | 180–268 |
| 150CYG | 150–280 | 20–80 | 1450 | 40–52 | 22–90 | 260–380 |
| 200CYG | 200–450 | 6–50 | 980–1450 | 25–58 | 22–90 | 325–380 |
| 250CYG | 300–650 | 6–60 | 750–1450 | 28–65 | 11–160 | 280–420 |
Technical Notes for Selection:
- Media Specific Gravity (SG): The power values listed above are based on a specific gravity of 1.0. For high-density slurries or concentrated acids, motor power must be reconfigured.
- Customization: If your operating conditions require a head higher than 80m or a flow rate exceeding 650m³/h, please contact Chuangyu Pump for a customised technical solution.
- Material Compatibility: Standard configuration features PFA lining, suitable for temperatures up to 180℃.
Advantages of the High Temperature Chemical Pump
Extreme Temperature & Corrosion Resistance (PFA Lined)
Features a thick 8-20mm PFA lining with superior thermal stability. It handles nearly all acids and solvents at temperatures from -20°C up to 180°C without cracking.
High-Solid Slurry Handling (Up to 40%)
The specialized semi-open impeller and reinforced flow channels allow for the smooth transport of abrasive slurries with a solid concentration of up to 40% by volume.
Zero-Leakage Advanced Sealing
Equipped with K-type dynamic seals или API 682 double mechanical seals, ensuring maximum safety and zero leakage when handling hazardous or high-purity chemical media.
Durable Steel-Plastic Integrated Structure
The molded sintering process permanently bonds the PFA lining to the steel casing, preventing deformation under pressure and ensuring a long service life in continuous heavy-duty operations.
Applications: CYG Series High Temperature Chemical Pump
Chuangyu Pump’s PFA-lined CYG series provides reliable, zero-leakage fluid transfer for hazardous, high-temperature, and abrasive media across the most demanding chemical and mineral processing environments worldwide.
Non-Ferrous Metallurgy
Specialised for transferring any concentration of acids, alkalis, and strong oxidisers. Ideal for acid pickling, electrolyte circulation, and volatile chemical handling.
Sulphuric & Phosphate Fertilizer
Transferring hot dilute acids, mother liquors, and gypsum slurries containing silica or fluoride impurities at high temperatures.
Chemical & Chlor-Alkali
Pumping concentrated acids, liquid alkalis, solvents, and organic acids in titanium dioxide and pigment production lines.

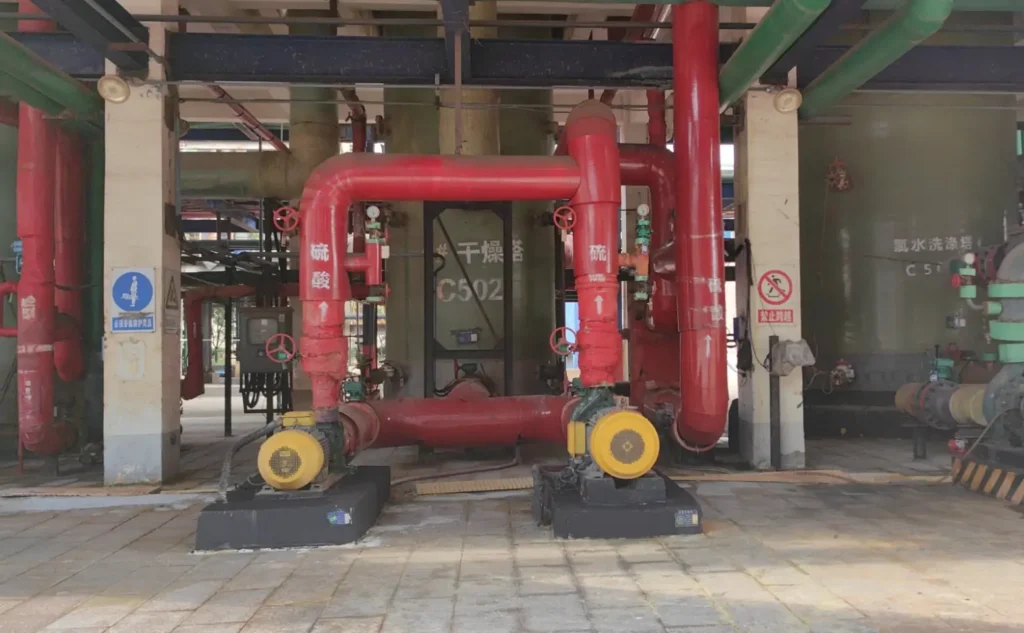

Water Treatment & FGD
Circulating abrasive limestone slurries in desulfurization systems and treating complex industrial effluents from electroplating or paper mills.
About Changyu Pump: Your Expert in High Temperature Chemical Pump Solutions
As a premier High Temperature Chemical Pump manufacturer, Chuangyu Pump combines decades of engineering expertise with industrial-grade precision. Our CYG series is backed by advanced molded PFA sintering technology and multiple utility model patents, ensuring that every unit delivers stable, zero-leakage performance in the most aggressive and high-temperature environments up to 180°C.
Whether you are dealing with high-temperature sulfuric acid, abrasive metallurgical slurries, or complex pharmaceutical solvents, our technical team provides customized adaptation schemes. From specialized sealing system upgrades to optimized impeller configurations for high-solid media (up to 40%), we focus on lowering your total cost of ownership through durability and efficiency.
Contact us today to get a professional technical assessment and discover why leading global industries trust Chuangyu Pump for their critical high-temperature chemical and slurry transfer needs.
