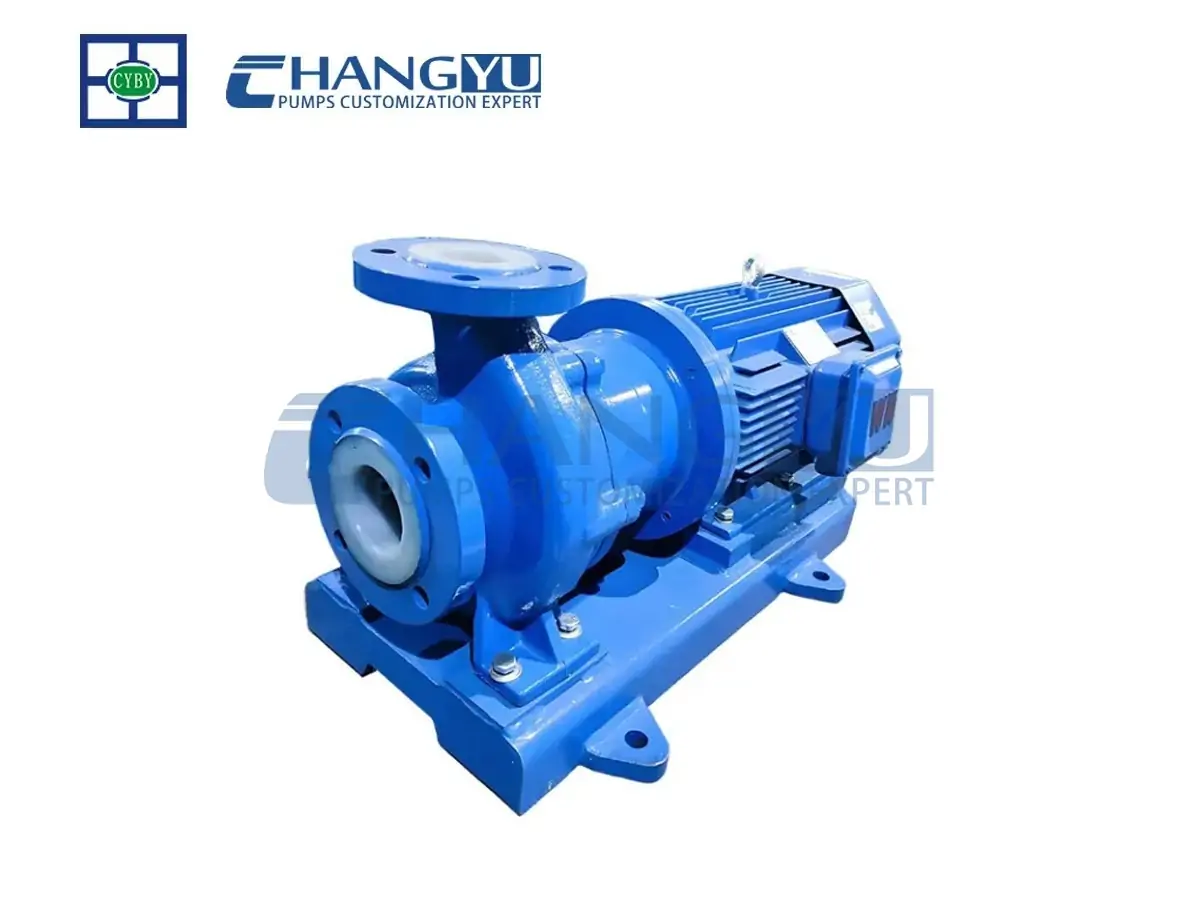

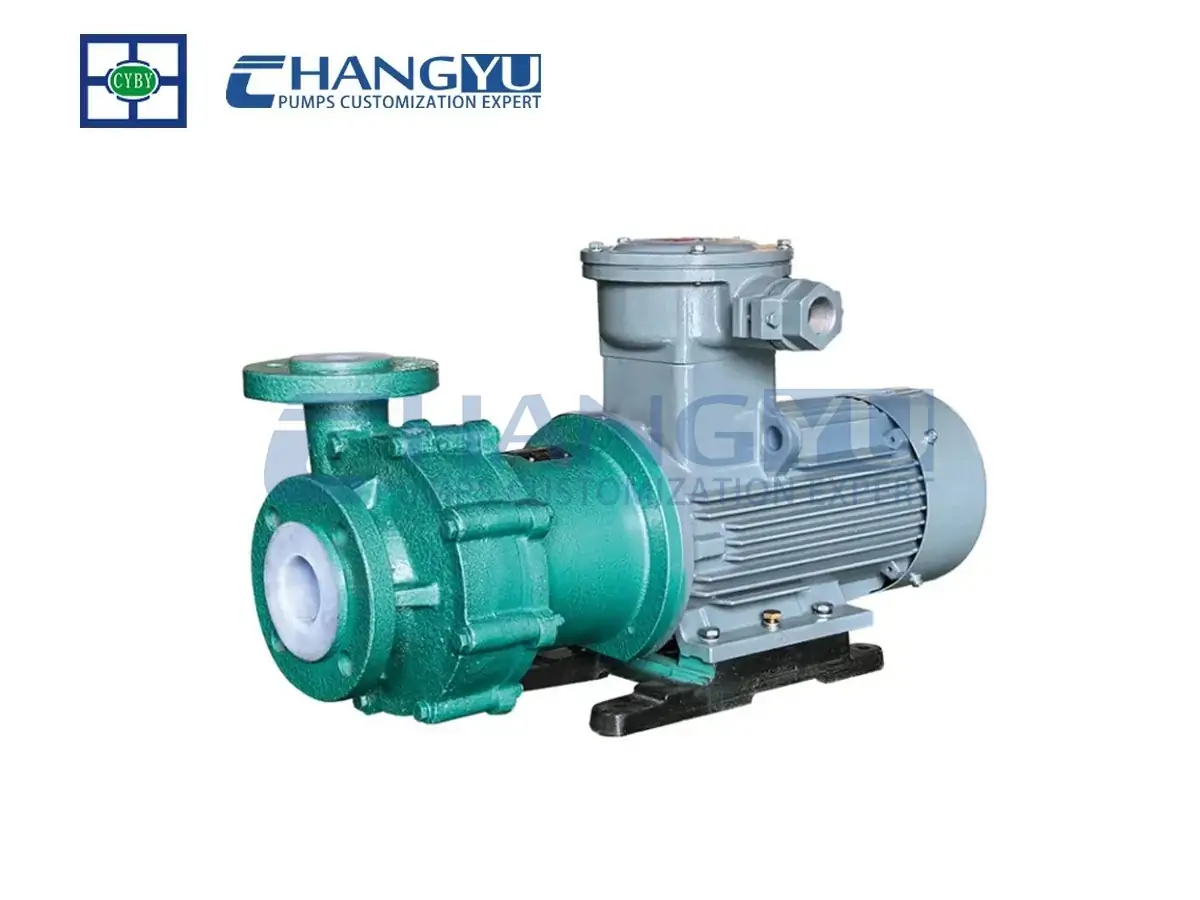

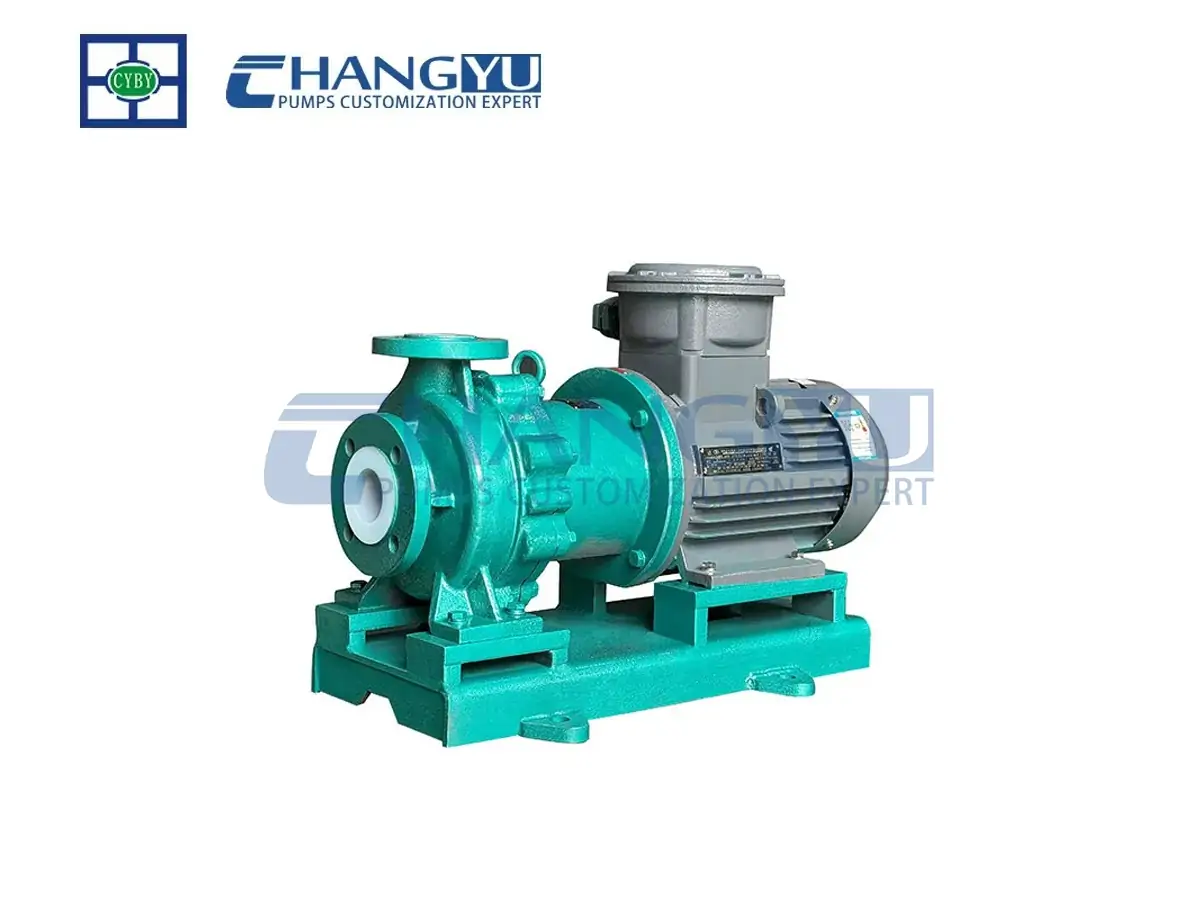

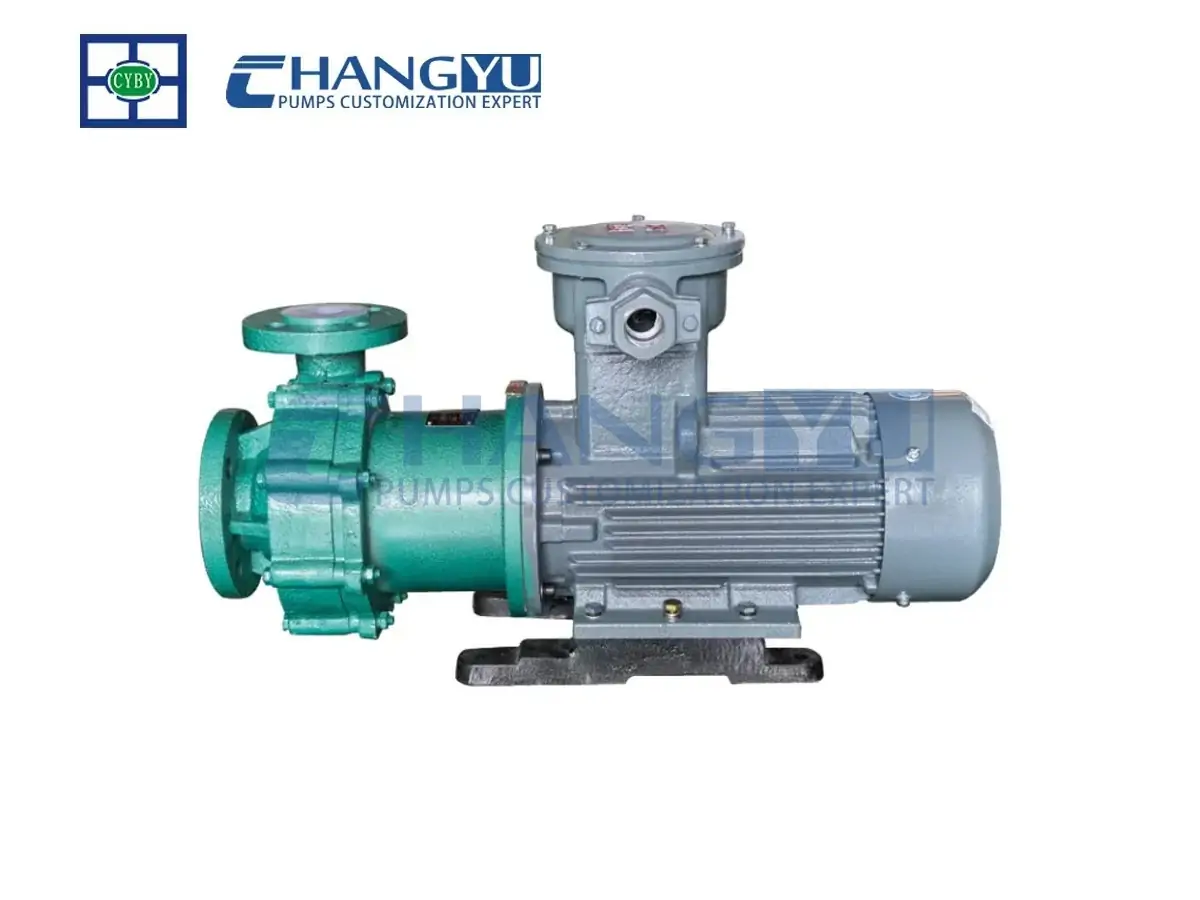

Magnetic Drive Centrifugal Pump
The Chuangyu Pump Magnetic Drive Centrifugal Pump adopts a seal-less magnetic coupling design that effectively eliminates leakage risks during operation. Available in stainless steel and fluoroplastic-lined material options, it is suitable for handling corrosive sulfuric acid and other hazardous chemical media.
The pump is widely used for the safe transfer of toxic, flammable, and high-purity liquids while meeting strict environmental and industrial safety requirements such as EPA and RoHS.
|
Flow Rate Range : |
3 m³/h~800 m³/h |
|---|---|
|
Head Range: |
15m~125m |
|
Motor Power : |
2.2 kw~110 kw |
|
Speed: |
2950 r/min |
|
Medium Temperature Range: |
-20 °C~180 °C |
|
Customizable Materials: |
Steel lined with FEP, PFA, or PTFE |
What Is a Magnetic Drive Centrifugal Pump?
A Magnetic Drive Centrifugal Pump, also known as a magnetic drive pump, is an industrial fluid-transfer device that uses magnetic coupling technology to enable non-contact power transmission. It belongs to the centrifugal pump category and is considered an innovative product that applies the working principle of permanent magnetic coupling to centrifugal pumps. Its core feature is the elimination of the traditional shaft seal structure, replacing physical contact transmission with magnetic-field force, thereby fundamentally solving the leakage problems commonly found in conventional mechanical seal pumps.
The Chuangyupump CYQ Series Magnetic Drive Centrifugal Pump adopts this seal-less magnetic coupling design. This seal-less Magnetic Drive Pump offers advantages such as low noise, lightweight structure, maintenance-free operation, and long service life. It is widely used in chemical processing, electroplating, semiconductor manufacturing, environmental protection, pharmaceutical industries, and other demanding industrial applications.
Chuangyupump provides multiple material options, including stainless steel and fluoroplastic-lined structures, to meet different corrosive media requirements. We also support customized configurations such as explosion-proof certification, food-grade materials, and intelligent control systems, providing customers with safe, efficient, and leak-free fluid transfer solutions.
Applications of Magnetic Drive Centrifugal Pump
The Chuangyupump CYQ Series adopts an innovative seal-less magnetic coupling design, applying the working principle of permanent magnetic coupling to centrifugal pumps. By replacing traditional physical shaft seals with non-contact magnetic-field power transmission, the CYQ series fundamentally eliminates the leakage problems common in conventional mechanical seal pumps. Featuring low noise, a lightweight structure, maintenance-free operation, and a long service life, this series delivers a safe, efficient, and 100% leak-free fluid transfer solution for the most demanding industrial environments.
Compatible Media:
Highly corrosive, volatile, and toxic fluids, including: Concentrated Sulfuric Acid (98%), Hydrochloric Acid (32%), Nitric Acid, Hydrofluoric Acid, Liquid Alkali (50%), Semiconductor Etching Solutions (HF/HNO₃ mixtures), TMAH, Organic Solvents (DMF, NMP, Acetone), Cyanide Copper, Chromic Acid, and Lithium Hexafluorophosphate electrolytes. (Available in stainless steel and fluoroplastic-lined structures to match diverse chemical compatibility requirements.)
Chemical & Pharmaceutical
Fundamentally eliminates dynamic leakage risks during the transfer of strong acids, alkalis, and toxic pesticide intermediates. The seal-less magnetic coupling structure ensures absolute containment of highly volatile organic solvents (DMF, acetone) and chlorinated compounds, protecting both operators and the environment.
Electronics & New Materials
Provides contamination-free, high-precision delivery of semiconductor etching solutions (HF/HNO₃) and developing fluids (TMAH). The non-contact power transmission prevents particulate generation, maintaining strict material purity in solar cell manufacturing and rare earth extraction loops.
Environmental & Surface Treatment
Delivers maintenance-free, long-service-life circulation of aggressive electroplating and anodizing chemistry (chromic acid, cyanide, copper). Perfectly suited for heavy-metal wastewater neutralization and reliable chemical feeding in exhaust gas purification systems (alkali spray towers and SCR denitrification).
Energy & Defense Industries
Offers explosion-proof certified, hermetically sealed transport for volatile and flammable media in lithium-ion battery production (NMP solvents, LiPF₆ electrolytes). Engineered to meet stringent military-grade sealing safety standards for hazardous rocket propellants (hydrazines, nitrogen tetroxide).
For customized configurations or specific operating conditions:
Chuangyupump supports tailored options including explosion-proof certification, food-grade materials, and intelligent control systems. Contact us for a safe, leak-free solution configured to your exact media composition, temperature, flow rate, head, and material requirements.
Need a quick answer or a tailored quote? Our team responds within 24 hours with one-on-one support.
Email: [email protected]
WhatsApp: +86-13651913727
Working Principle
The CYQ centrifugal magnetic drive pump is a chemical process pump that applies modern magnetic drive principles and uses permanent magnets to achieve contactless indirect drive. When the motor drives the outer rotor (i.e., the outer magnet) assembly to rotate, the magnetic field causes the magnetic lines of force to pass through the isolation sleeve, driving the inner rotor (i.e., the inner magnet) assembly and impeller to rotate synchronously.
For more information about the components and how they work, please read our article: How Does Magnetic Drive Pump Work
Parts
Fully Lined Casing & Wetted Parts
The casing of the CYQ Series Chemical Process Pump features a high-quality carbon steel shell lined with FEP (F46) or PFA (optional or custom materials). This sintered molding process, which combines a “rigid shell with a flexible lining,” enables the equipment to withstand high pipeline pressures while offering exceptional corrosion resistance against all strong acids (such as concentrated sulfuric acid and nitric acid) and organic solvents.
PEEK Reinforcement Sleeve
As the core of the third-generation upgrade, the reinforcement sleeve is injection-molded from PEEK, a specialty engineering plastic. Compared to traditional stainless steel, it not only offers exceptional pressure resistance of 3.0 MPa but also eliminates eddy current losses, preventing the medium from vaporizing due to temperature rise. This makes it a key factor in ensuring the safe, seal-less operation of the system.
High-Performance NdFeB Magnetic Coupling
The magnetic drive system utilizes high-grade NdFeB (neodymium-iron-boron) permanent magnets and employs an advanced push-pull magnetic circuit design. Despite the minimal internal magnet volume, it delivers exceptionally strong magnetic torque. Depending on operating conditions, we offer customized solutions with temperature resistance up to 180°C (38EH) or 260°C (38AH), with magnetic performance theoretically remaining stable for over 10 years.
Thickened Silicon Carbide Shaft & Sleeve
Both the pump shaft and sleeve are made of high-purity Silicon Carbide (SiC), a material second only to diamond in hardness. Compared to industry standards, Changyu Pump has increased the sleeve thickness by an additional 4 mm, significantly enhancing the component’s impact resistance and wear resistance.
Enclosed Fluoroplastic Impeller
The impeller is manufactured using a one-piece injection-molded process with a metal insert encased in fluoroplastic, ensuring dynamic balance and mechanical strength during high-speed rotation. The enclosed structure design significantly improves hydraulic efficiency, ensuring the stability of the chemical process pump during long-distance, high-head pumping operations.
Model Identification Code (Example)
To help our engineers select the right Changyupump CYQ Series Chemical Resistant Pump for your project, please refer to the following naming convention:
Example: CYQ 50 – 32 – 125 F:
- CYQ: Series Name (Magnetic Drive Chemical Process Pump)
- 50: Inlet Diameter (mm)
- 32: Outlet Diameter (mm)
- 125: Nominal Impeller Diameter (mm)
- F: Wetted Material (FEP/Fluoroplastic)
Operating Conditions & Limitations
| Parameter / Condition | Standard Range or Requirement |
|---|---|
| Medium Properties | Free of hard particles (custom verification required if present); viscosity ≤ 30×10⁻⁶ m²/s; density ≤ 1600 kg/m³ |
| Temperature Range | -20°C to 150°C; recommended operating temperature ≤ 60°C (to prevent material aging) |
| Pressure Limits | Suction pressure ≤ 0.2 MPa; maximum working pressure ≤ 1.6 MPa |
| Operation Restrictions | ▶ Dry running is strictly prohibited (bearings rely on medium lubrication) ▶ After a power failure, the liquid must be drained before restarting to prevent dry operation |
| Maintenance Requirements | Clean promptly after handling crystallizing media; inspect bearings and mechanical seal wear every 500 hours; replace when clearance exceeds 0.5 mm |
Special Note:
Keep devices that are sensitive to magnetic fields (such as pacemakers and magnetic cards) away from the pump.
Advantages of the Magnetic Drive Centrifugal Pump
Fully fluorinated plastic corrosion-resistant structure
All flow-through components are made from “the king of plastics” fluorinated plastic (PTFE/PFA) through integral molding, capable of withstanding long-term corrosion from any concentration of strong acids (sulfuric acid/hydrochloric acid/nitric acid), strong alkalis, organic solvents, and strong oxidizing agents. The operating temperature range is -20°C to 120°C (high-temperature models can reach 180°C).
Enhanced isolation sleeve design
An innovative special alloy/ceramic composite material isolation sleeve is used, featuring ultra-high mechanical strength and electromagnetic conductivity. This effectively eliminates magnetic eddy current losses and improves pumping efficiency.
Zero-leakage magnetic drive technology
Special materials are used to achieve fully sealed transmission, eliminating the leakage risk associated with mechanical seal pumps. This technology is particularly suitable for the transportation of toxic, flammable, explosive, and high-purity media.
Leak-free and pollution-free
This new fully sealed industrial pump features leak-free, pollution-free, and energy-efficient characteristics, making it an ideal pump type for creating “leak-free workshops” and production processes.

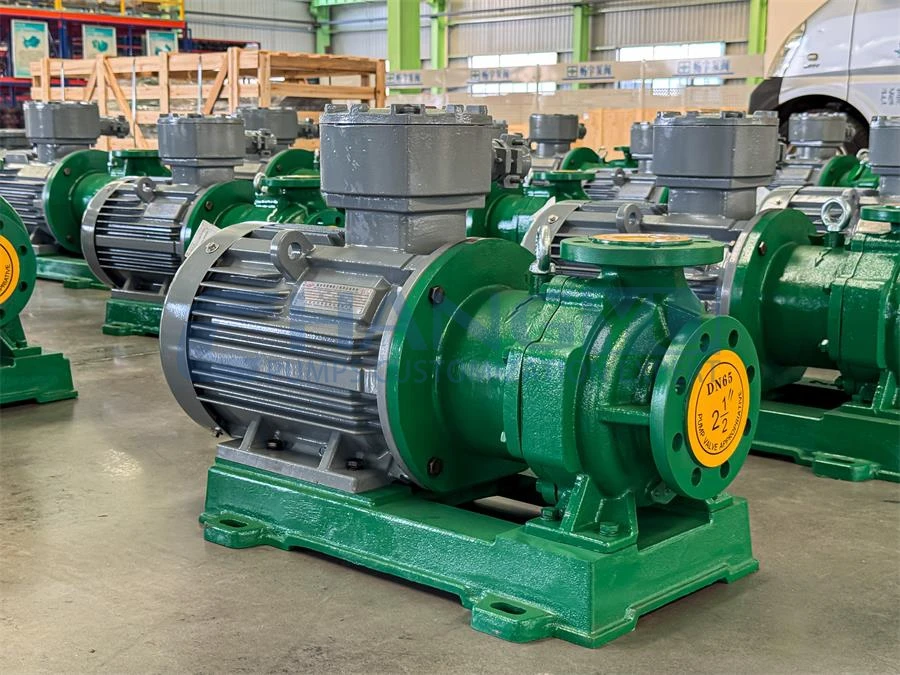

Magnetic Drive Centrifugal Pumps Manufacturer
As a leading manufacturer of magnetic drive centrifugal pumps in China, Changyu Pump has over 22 years of R&D and production experience, specializing in providing leak-free, corrosion-resistant, and energy-efficient fluid handling solutions for the chemical, pharmaceutical, electronics, environmental protection, and energy industries. Our core strengths include:
- Customized Design Capabilities: We provide personalized pump designs tailored to your specific operating conditions (medium, temperature, pressure, flow rate, etc.).
- Full Range of Corrosion-Resistant Pumps: Our product lineup includes sulfuric acid pumps, hydrochloric acid pumps, acid pumps, alkali pumps, solvent pumps, and more, catering to diverse corrosion-resistant medium requirements.
- Strict quality control: Compliant with international standards such as ISO 9001, API 685, and ANSI/ASME B73.3.
- Global service network: Providing technical consultation, installation guidance, and after-sales maintenance.
