Changyu Pump provided a customized pharmaceutical intermediate transfer pump solution for an Indian pharmaceutical manufacturer. The project involved the transportation of ethanol, potassium tartrate crystal slurry, organic solvents, and industrial wastewater.
By combining UHB corrosion-resistant pumps, CQ magnetic drive pumps, and HB slurry pumps, Changyu Pump helped the customer improve fluid transfer reliability, reduce maintenance requirements, and achieve safer operation in pharmaceutical intermediate production processes.
Project Summary
| Project | Details |
|---|---|
| Customer | An Indian pharmaceutical manufacturer |
| Industry | Pharmaceutical Industry / Pharmaceutical Intermediate Production |
| Application Process | Pharmaceutical Intermediate Processing |
| Project Time | October 2025 |
| Installation Period | 7 days |
| Commissioning Period | 2 days |
| Installation Location | India |
| Transfer Media | Ethanol, potassium tartrate crystal slurry, organic solvents, industrial wastewater |
| Main Requirements | Corrosion resistance, safe solvent transfer, stable handling of solid-containing media |
| Equipment Supplied | UHB Corrosion Resistant Pump, CQ Magnetic Drive Pump, HB Slurry Pump |
| Project Objective | Improve production stability, reduce maintenance frequency, and enhance operational safety |
Project Background
The customer is an Indian pharmaceutical manufacturer specializing in pharmaceutical intermediates. During the expansion of its synthesis workshop and wastewater treatment facilities, the customer encountered several challenges related to fluid transfer equipment. The production process involved multiple difficult media, including corrosive chemicals, organic solvents, crystal-containing slurry, and wastewater containing solid particles. The existing pumping equipment could not provide stable long-term operation under these complex working conditions.
The main challenges included:
1. High Abrasion Crystal Slurry Transfer
In the ethanol recovery process, potassium tartrate crystals formed a high-concentration solid-liquid mixture. The original metal pumps experienced frequent wear caused by crystal particles. Mechanical seal failures and blockage issues affected the continuous operation of the production line and increased maintenance requirements.
2. Safe Transfer of Organic Solvents
The production process required the transfer of organic solvents such as DMF and other chemical liquids. Due to the characteristics of solvent applications, the customer required pumps with improved sealing performance and reduced leakage risks to ensure safer operation.
3. Solid-Containing Wastewater Handling
The wastewater treatment system contained solid particles and required pumps with good wear resistance and reliable performance under continuous operation.
Changyu Pump Pharmaceutical Intermediate Transfer Pump Solution
To solve these complex fluid transfer challenges, Changyu Pump adopted a media-specific pumping solution instead of using one pump type for all applications.
Based on the characteristics of each medium, Changyu engineers selected three different pump models:
| Application Process | Pump Model | Core Advantages | Typical Configuration |
|---|---|---|---|
| Ethanol + potassium tartrate crystal slurry | UHB Type UHMWPE Corrosion Resistant Pump | UHMWPE lining provides excellent corrosion resistance and wear resistance. Suitable for slurry containing solid particles and corrosive media. | Flow: 50m³/h; Head: 32m; Power: 15kW |
| Flammable organic solvent transfer | CQ Stainless Steel Magnetic Drive Pump | Magnetic drive structure eliminates mechanical seal contact and helps reduce leakage risks. Suitable for organic solvent transfer applications. | Flow: 25m³/h; Head: 30m; Power: 7.5kW |
| High-solid wastewater treatment | HB Abrasive Slurry Pump | High-strength alloy materials provide excellent wear resistance for high-concentration solid-liquid mixtures. | Flow: 40m³/h; Head: 45m; Power: 22kW |
Product Configuration
1. UHB Type UHMWPE Corrosion Resistant Pump
Applications
- Potassium tartrate crystal slurry
- Corrosive chemical liquids
- Solid-containing media
Advantages
- Excellent resistance to acids and alkalis
- Suitable for combined corrosion and abrasion conditions
- Helps extend pump service life
- Suitable for chemical transfer and slurry handling applications
Technical Specifications
| Parameter | Data |
|---|---|
| Flow Range | 3~2600 m³/h |
| Head Range | 5~100m |
| Motor Power | 0.75~300kW |
| Speed | 750~2900 r/min |
| Temperature Range | -20℃~90℃ |
| Material | UHMWPE |
For more product information, please read: UHB Series UHMWPE Corrosion Resistant Pump
2. CQ Stainless Steel Magnetic Drive Pump
Applications
- Ethanol transfer
- Organic solvent transfer
- Flammable chemical liquids
Advantages
- Magnetic drive structure without traditional mechanical seal
- Reduces leakage risks during solvent transfer
- Suitable for chemical and pharmaceutical applications
- Improves operational safety for organic solvent handling
Technical Specifications
| Parameter | Data |
|---|---|
| Flow Range | 1.2~60m³/h |
| Head Range | 5~50m |
| Motor Power | 0.12~18.5kW |
| Speed | 968~3450 r/min |
| Temperature Range | -20℃~90℃ |
| Material | SS304 / SS316L |
For more product information, please read: CQ Series Stainless Steel Magnetic Drive Pump
3. HB Abrasive Slurry Pump
Applications
- Wastewater treatment
- Solid-containing slurry transfer
Advantages
- Excellent wear resistance
- Designed for high-concentration slurry applications
- Suitable for continuous industrial operation
- Provides reliable performance in demanding environments
Technical Specifications
| Parameter | Data |
|---|---|
| Flow Range | 10~60m³/h |
| Head Range | 20~120m |
| Motor Power | 3~45kW |
| Speed | 2900 r/min |
| Temperature Range | -20℃~120℃ |
| Material | 304 / 316 / 316L / 2205 / 2507 |
For more product information, please read: Abrasive Slurry Pump | HB Series Stainless Steel Slurry Pump Manufacturer
Why Recommend These Three Pumps?
The selection of these three pumps was based on the specific characteristics of each medium rather than a standard pump configuration.
- For Crystal Slurry Transfer
- The UHB corrosion resistant pump uses UHMWPE material, which provides excellent wear resistance and chemical resistance. Its low-friction characteristics and anti-adhesion performance help improve the transport stability of potassium tartrate crystal slurry and reduce blockage problems commonly encountered in traditional metal pumps.
- For Organic Solvent Safety
- The CQ magnetic drive pump employs a magnetic coupling structure, reducing the risk of leakage from mechanical seal failure. This design makes it suitable for pharmaceutical and chemical applications involving ethanol and other organic solvents where reliable sealing performance is required.
- For High-Solid Wastewater Applications
- The HB slurry pump is designed for abrasive and solid-containing media. With high-strength metal materials such as 2205 duplex stainless steel, the pump provides improved wear resistance and corrosion resistance for wastewater treatment conditions containing solid particles and corrosive components.
Before and After Comparison
| Comparison Item | Previous Pump System | Changyu Pump Solution |
|---|---|---|
| Crystal slurry transfer | Frequent blockage and mechanical seal maintenance | More stable operation with reduced blockage and maintenance frequency |
| Organic solvent transfer | Leakage concerns and higher safety risks | Improved sealing performance with magnetic drive technology |
| Wastewater pump service life | Pump corrosion and shorter service intervals | Improved durability and longer operating cycles |
| Maintenance requirements | Frequent inspection and spare part replacement | Reduced maintenance workload and operating costs |
| Production reliability | Pump issues affected production continuity | More stable operation and improved production reliability |
Project Results
Through the implementation of Changyu Pump’s customized pumping solution, all pump systems were installed within 7 days and commissioning was completed within 2 days.
After project completion:
- Improved Production Stability
- The new pumping system reduced interruptions caused by pump failures and helped ensure stable operation of the pharmaceutical intermediate production process.
- Enhanced Operational Safety
- The CQ magnetic drive pump improved solvent transfer safety by reducing leakage risks during organic solvent transportation.
- Reduced Maintenance Requirements
- The combination of UHB, CQ, and HB pumps improved equipment reliability and reduced the frequency of maintenance and replacement caused by corrosion and wear.

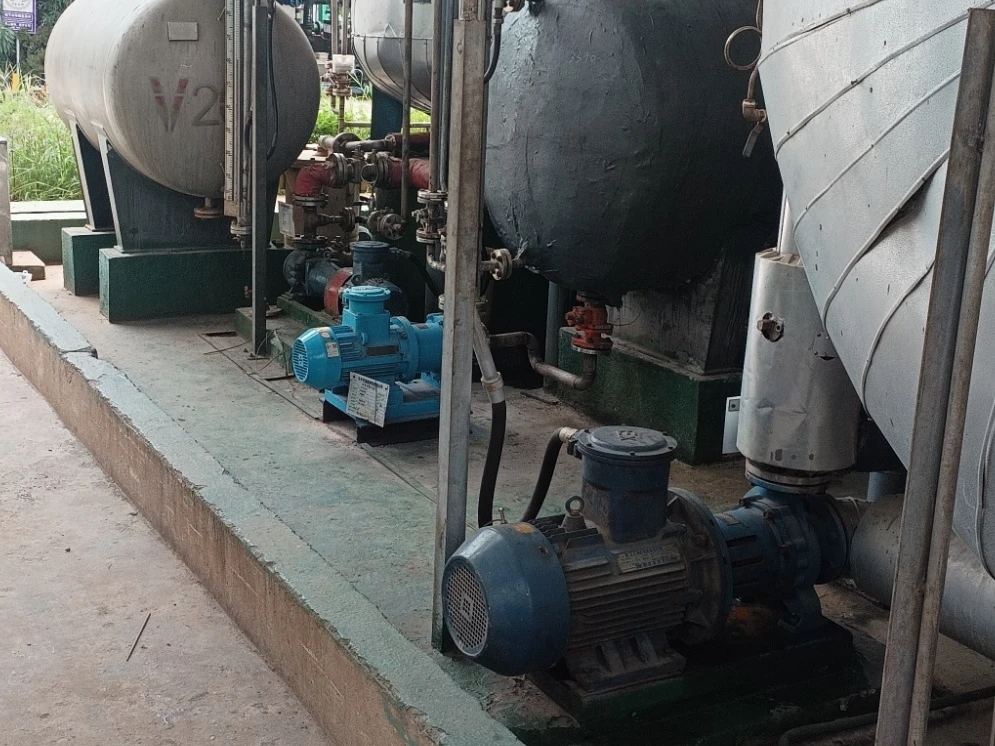

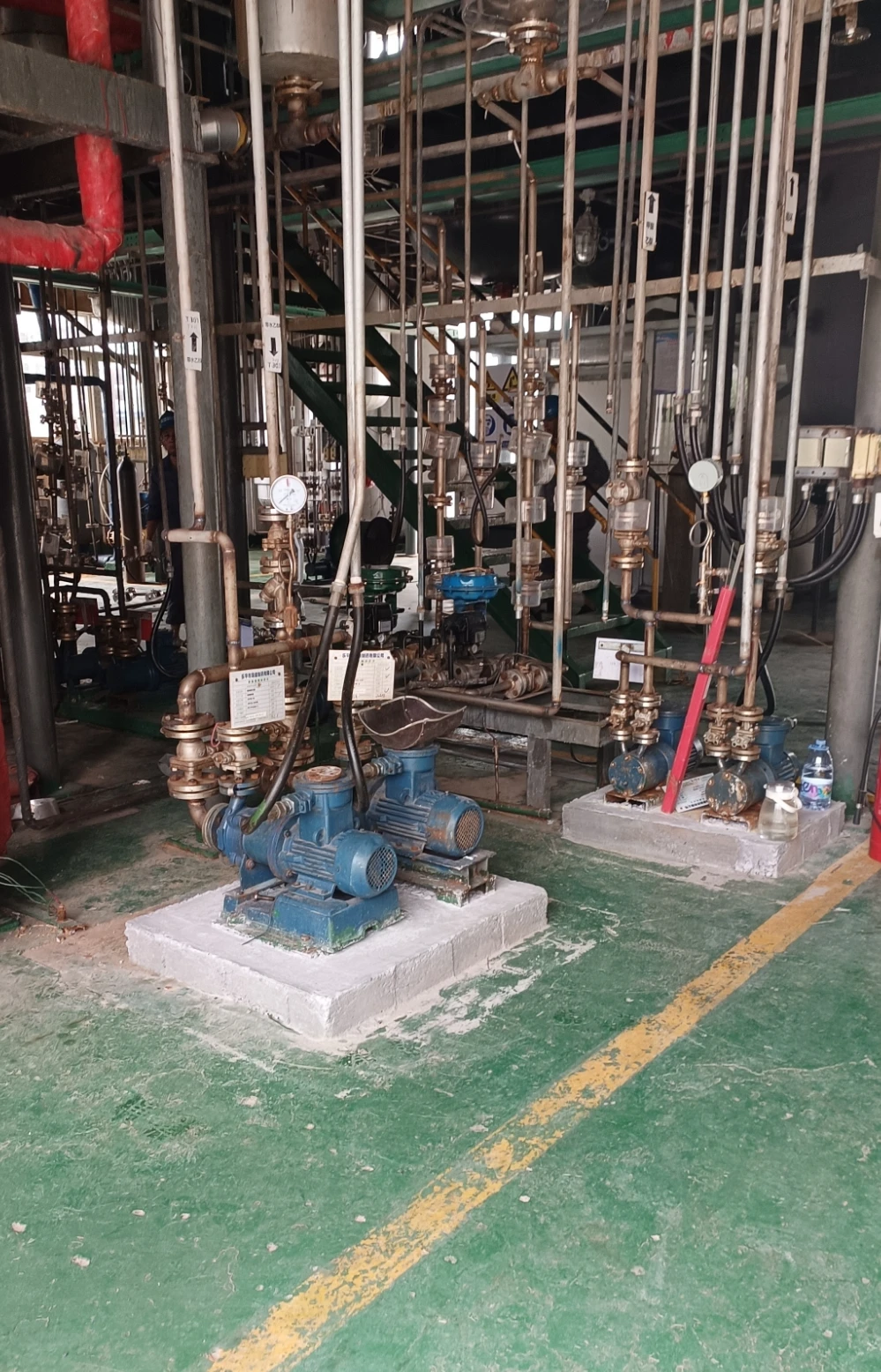

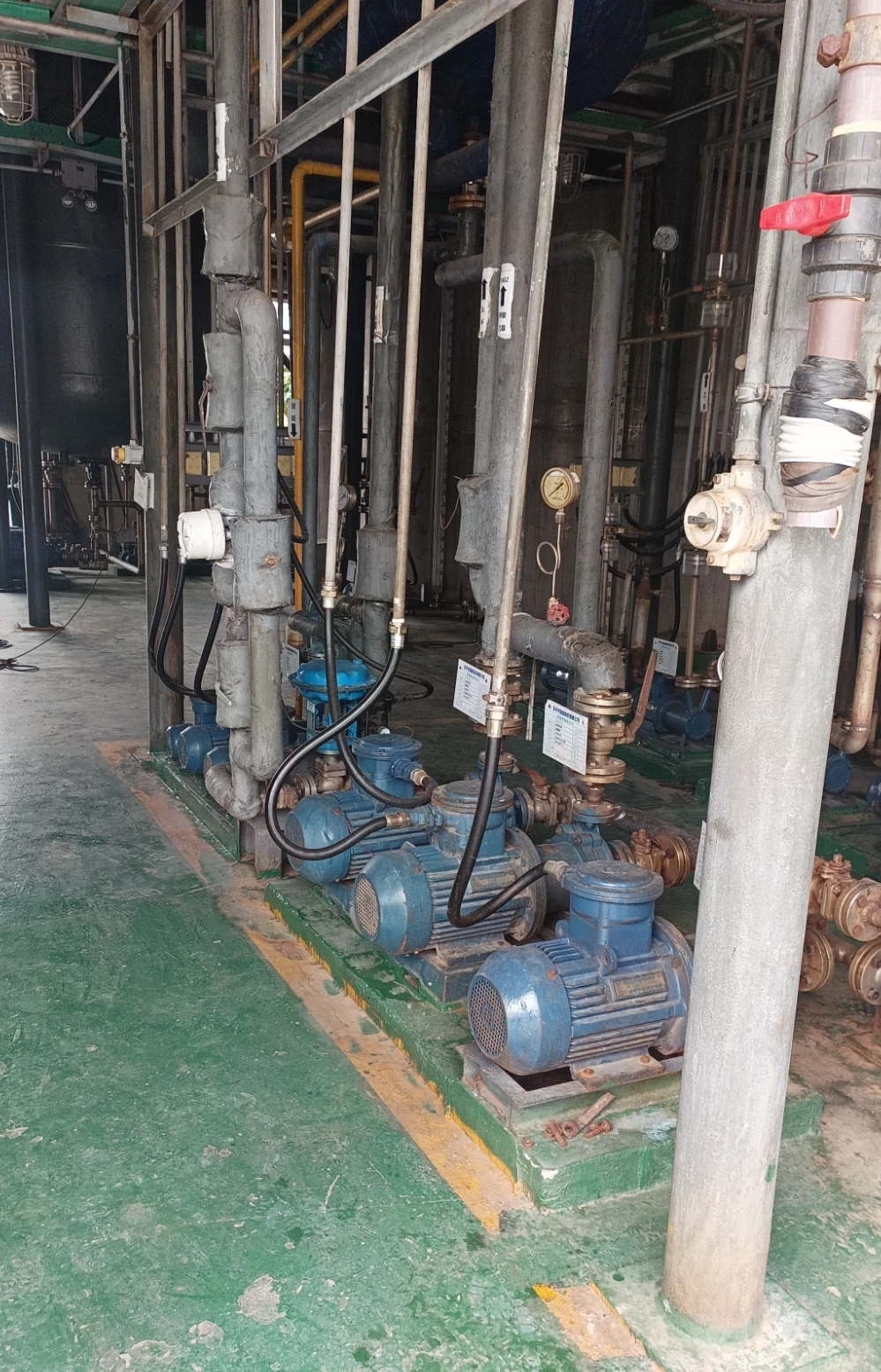

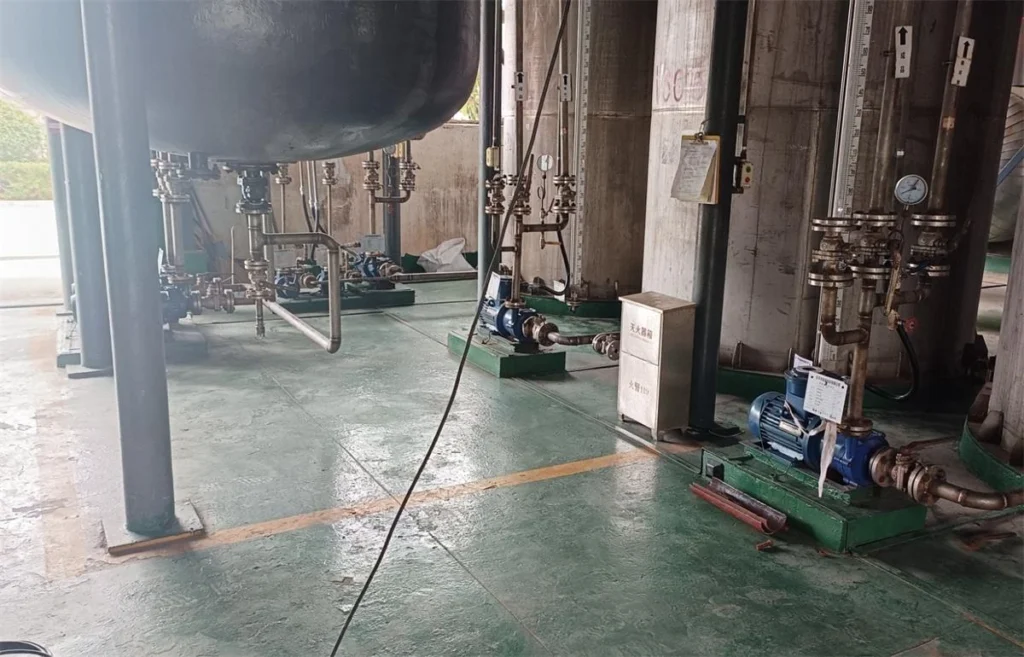

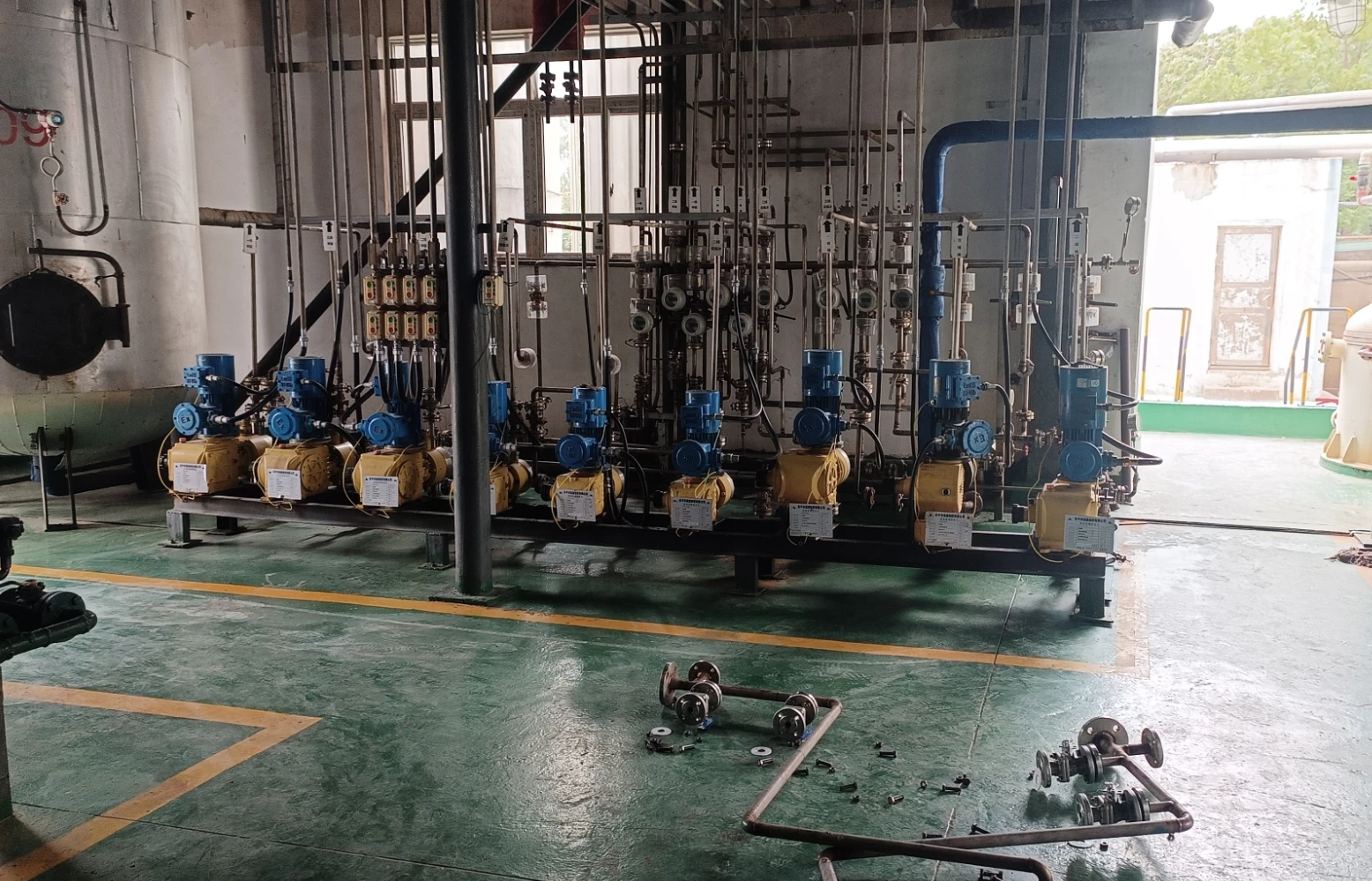

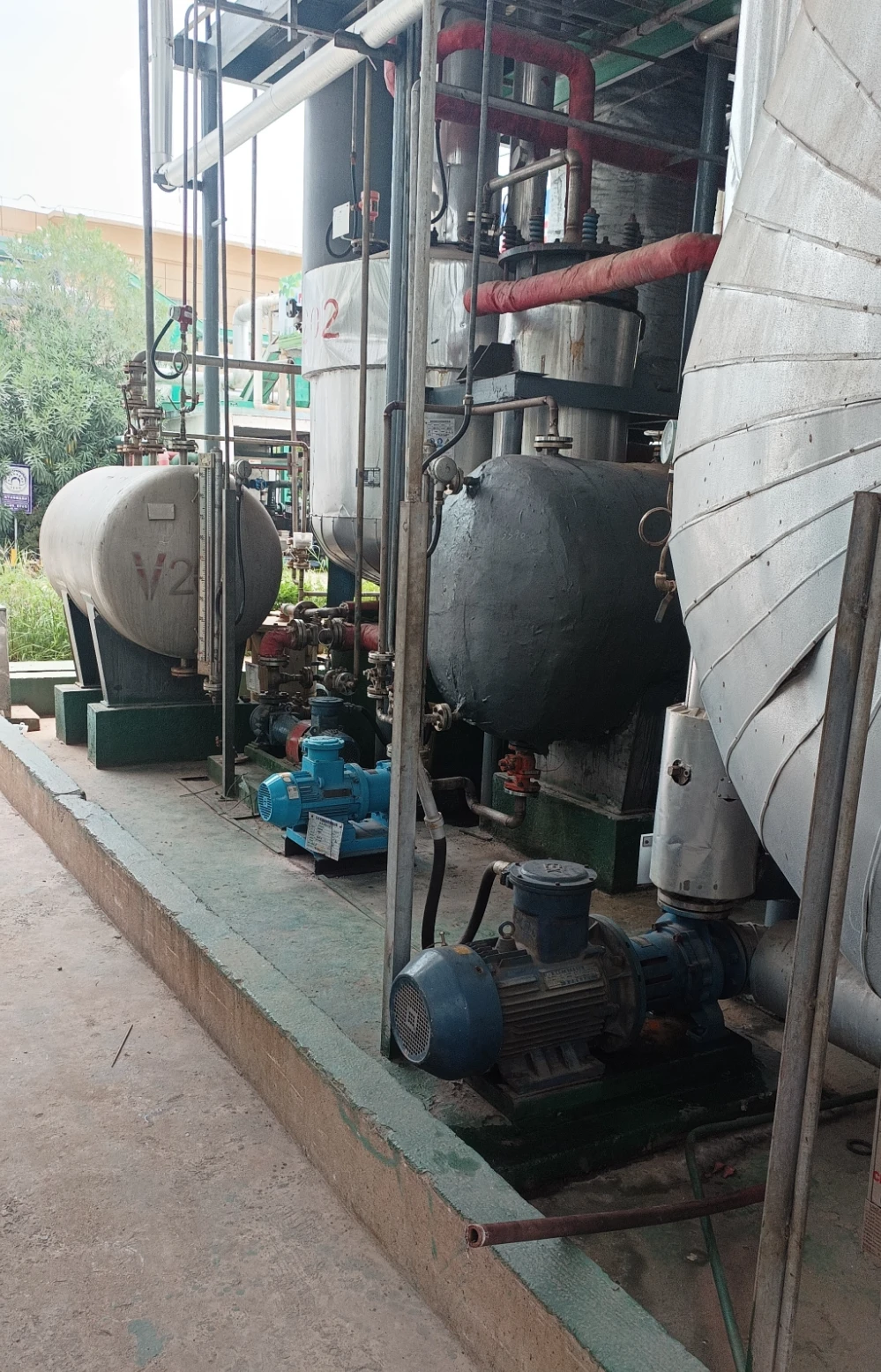

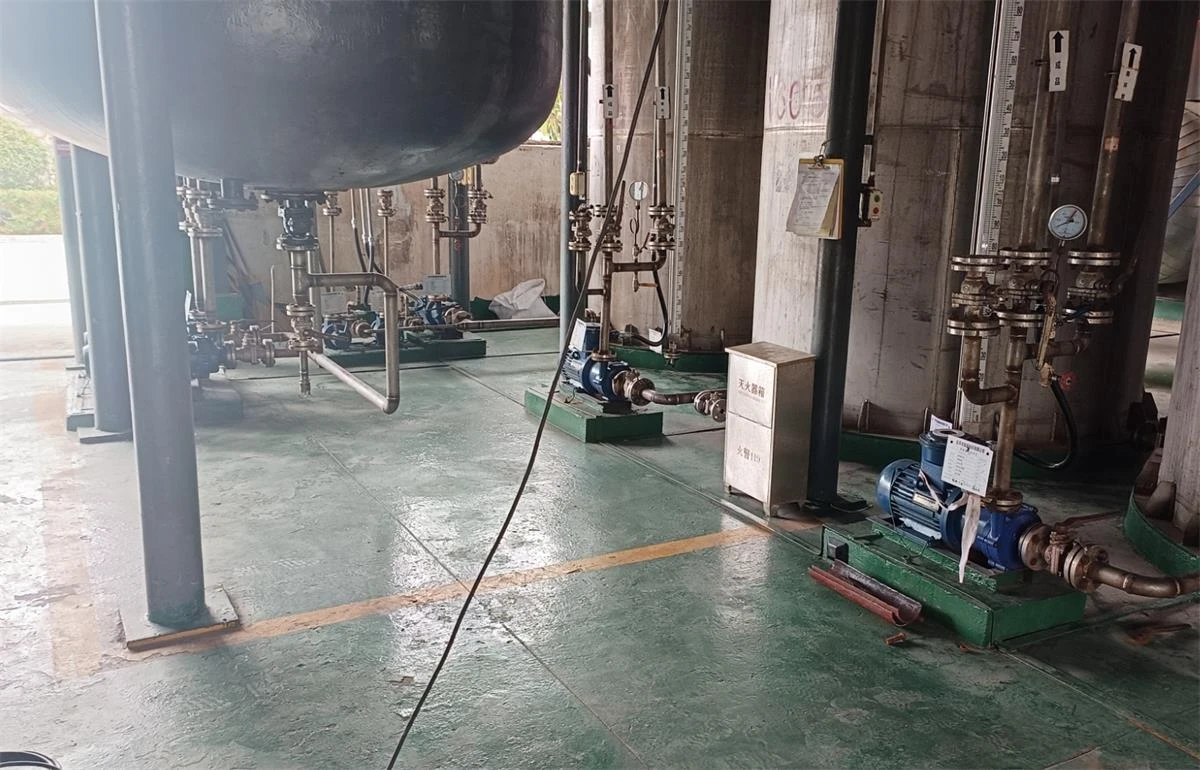

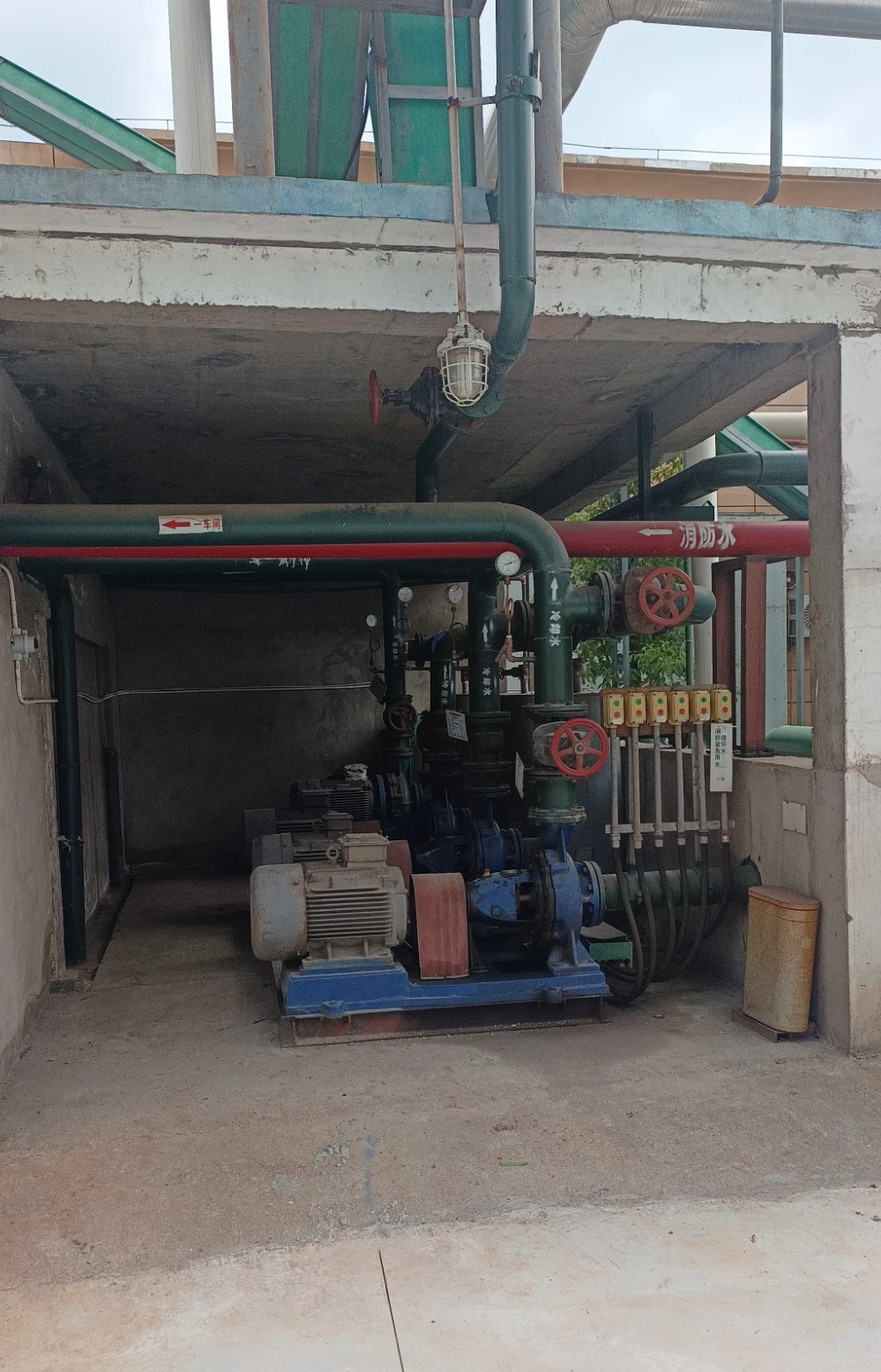

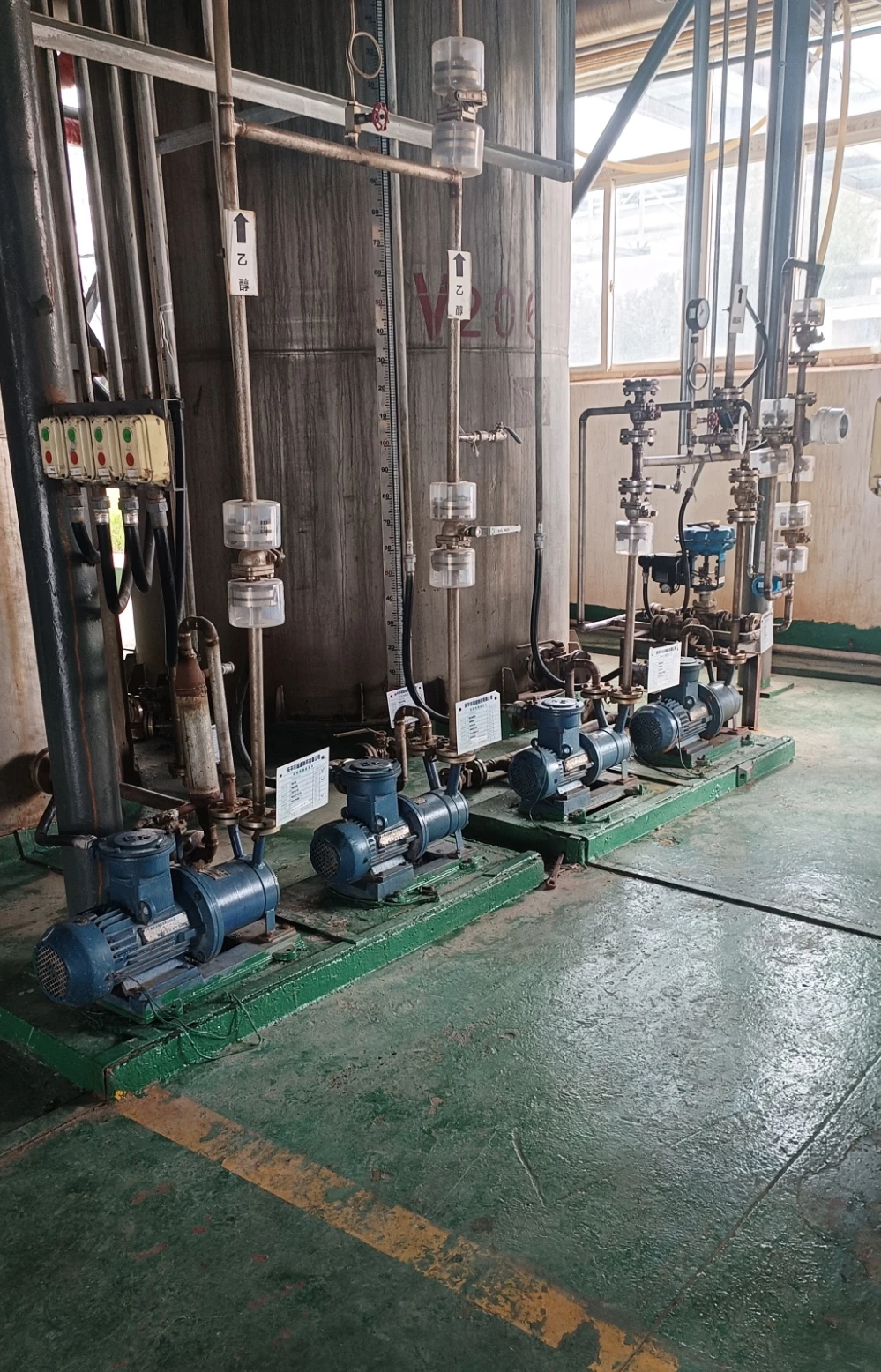

Photos from the On-Site Operations
Conclusion
For pharmaceutical and chemical industries, fluid transfer systems often face complex challenges involving corrosion, solvents, solid particles, and continuous operation requirements.
In this project, Changyu Pump provided a complete pharmaceutical intermediate transfer pump solution by combining UHB corrosion-resistant pumps, CQ magnetic drive pumps, and HB slurry pumps according to different application requirements.
With experience in corrosion-resistant pumps, chemical transfer pumps, magnetic drive pumps, and slurry handling solutions, Changyu Pump continues to provide reliable industrial pumping solutions for global customers.
If you are facing similar challenges in pharmaceutical, chemical, or wastewater applications, contact Changyu Pump for a customized pump selection solution.
