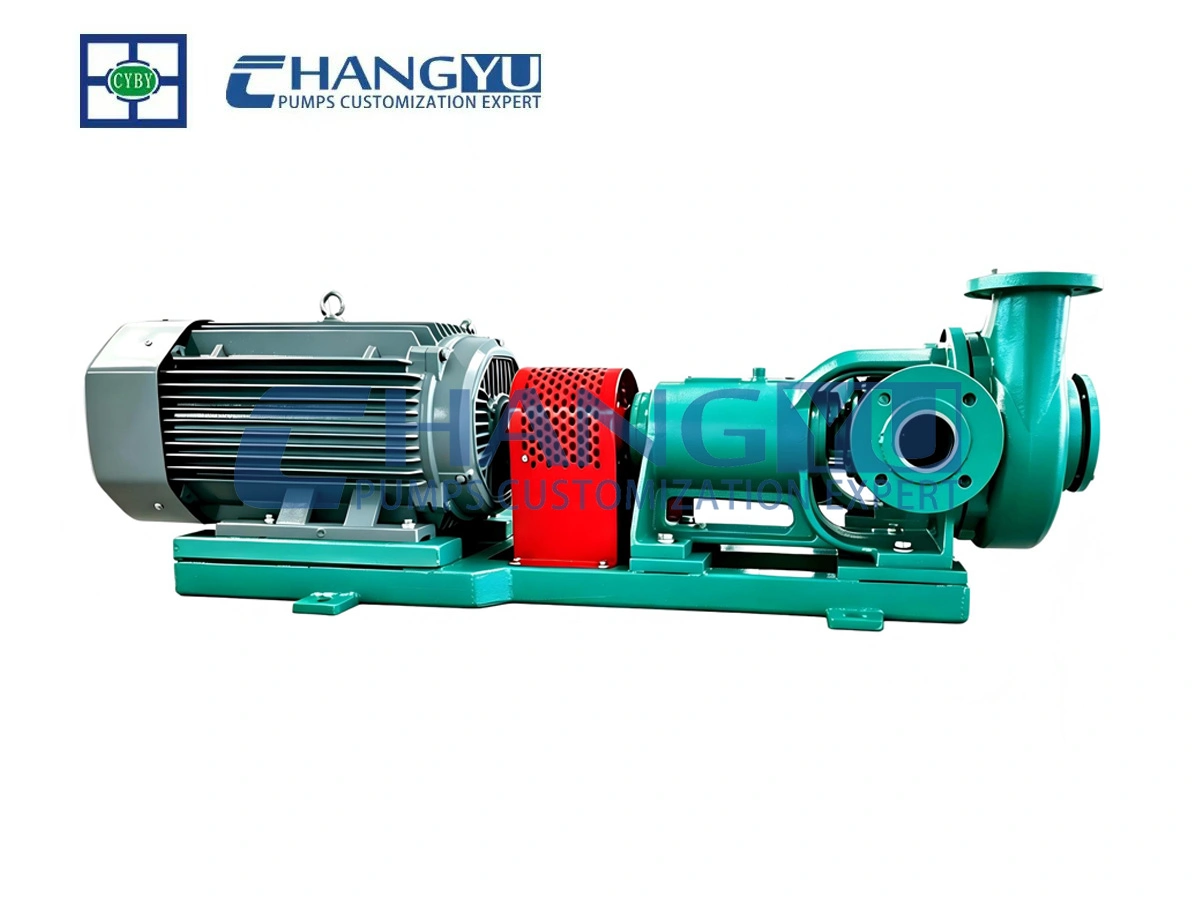

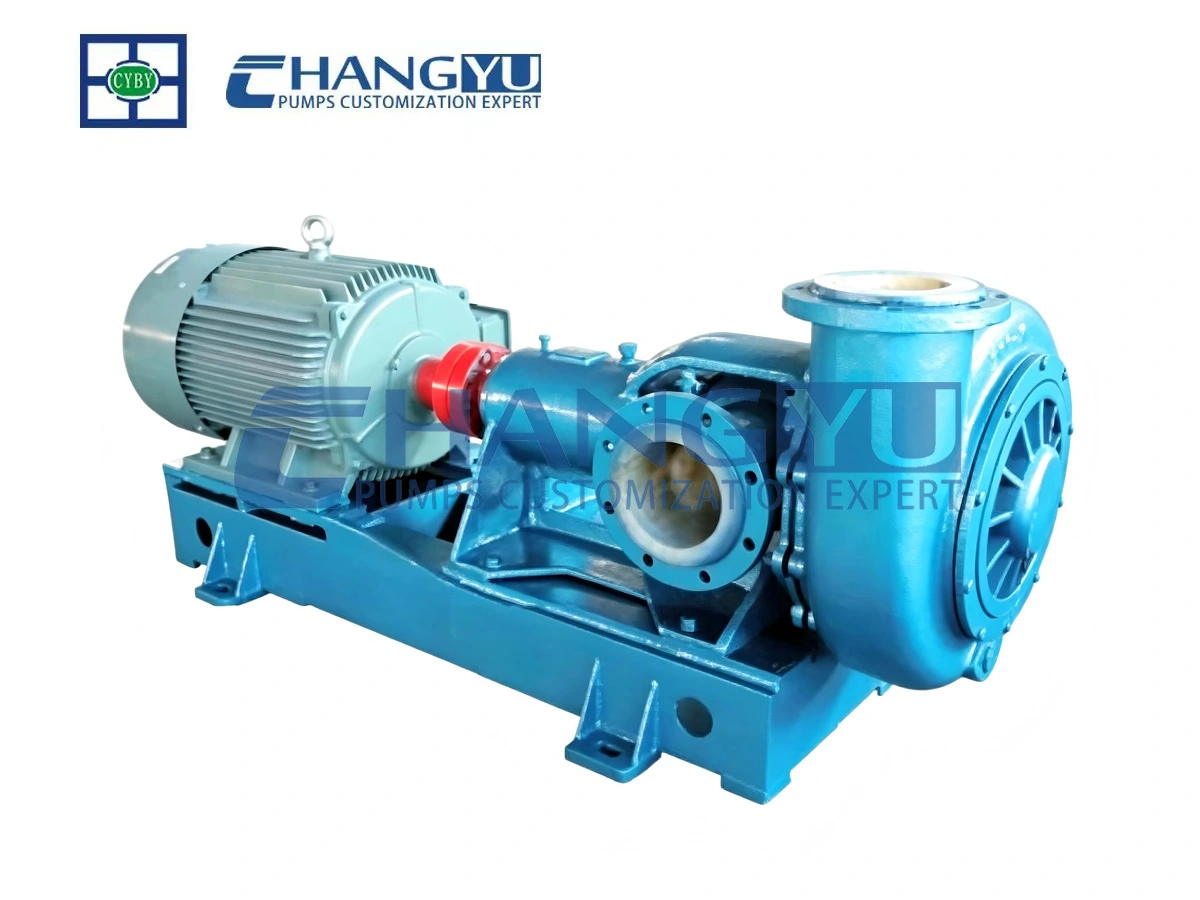

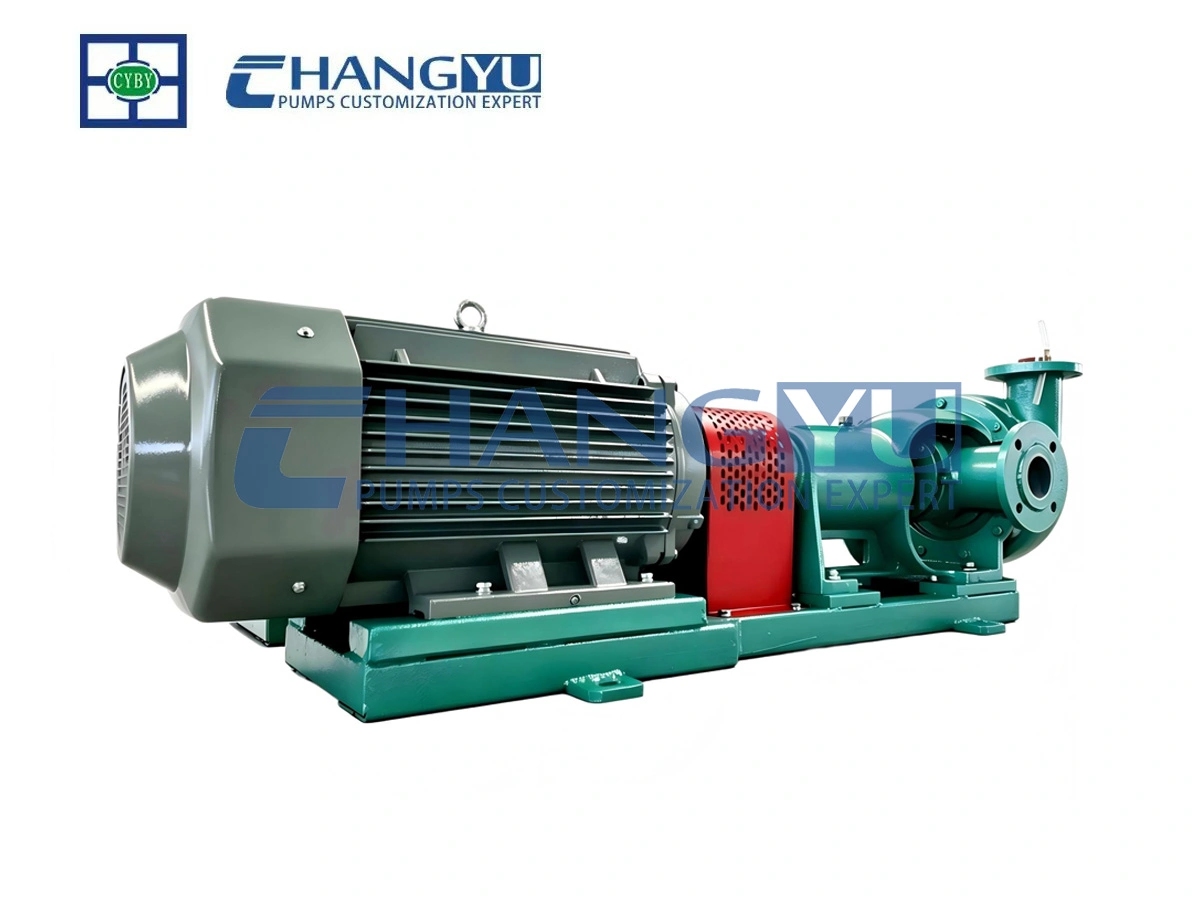

Filter Press Feed Pump Overview

The UHFM Series Corrosion-Resistant and Wear-Resistant Filter Press Feed Pump is a specialized centrifugal pump developed for filter presses, filtration equipment, and high-pressure slurry transfer applications. This series is mainly used to handle corrosive, abrasive, and solids-containing media, and is particularly suitable for filter press applications that require higher feeding pressure and stable operation throughout the filtration cycle.

The UHFM Series features a rear-suction structural design. To address common problems with conventional corrosion-resistant and wear-resistant pumps, such as component wear and medium leakage during operation, we made targeted improvements to the pump casing, wetted components, and wearing parts. The rear-suction design provides a practical arrangement between the pump inlet and the rear maintenance area, while making pump inspection and replacement of wearing parts more convenient.

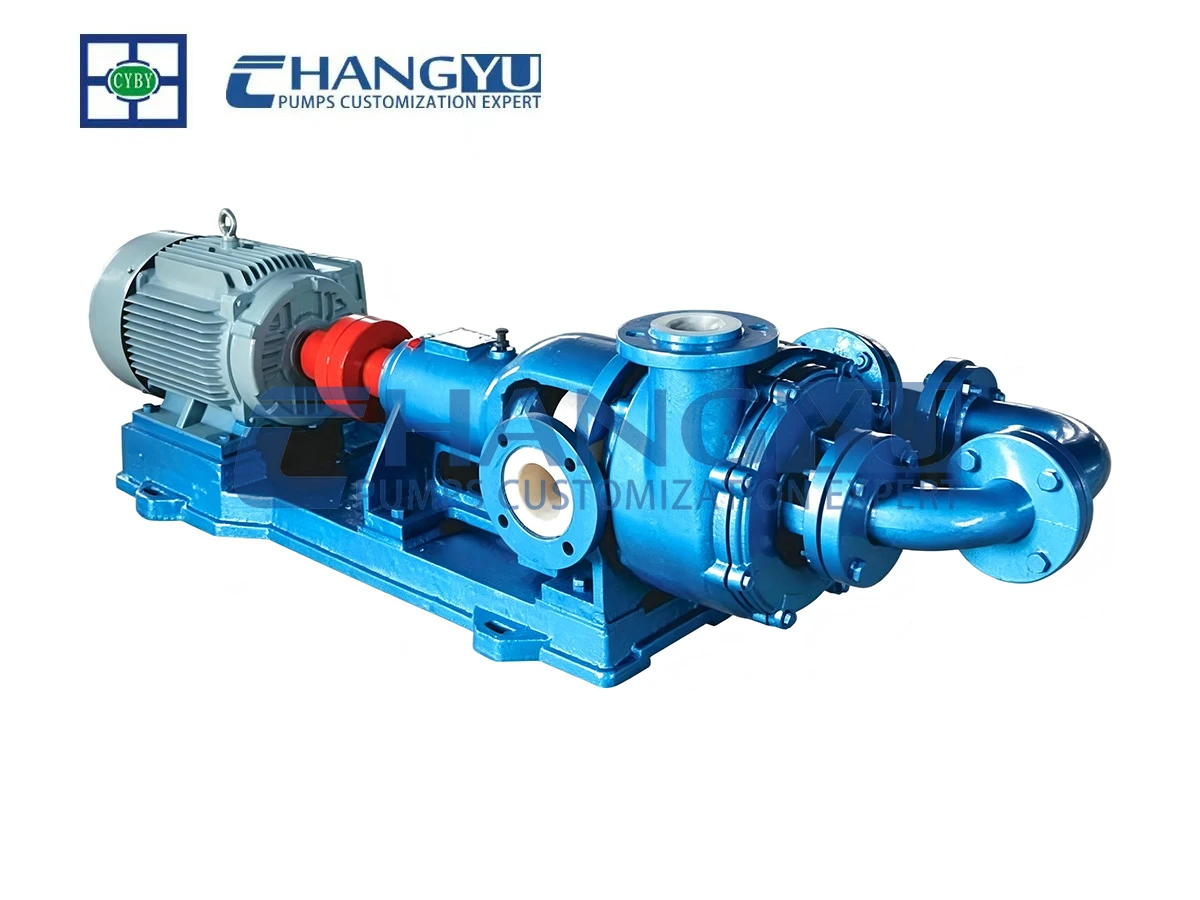

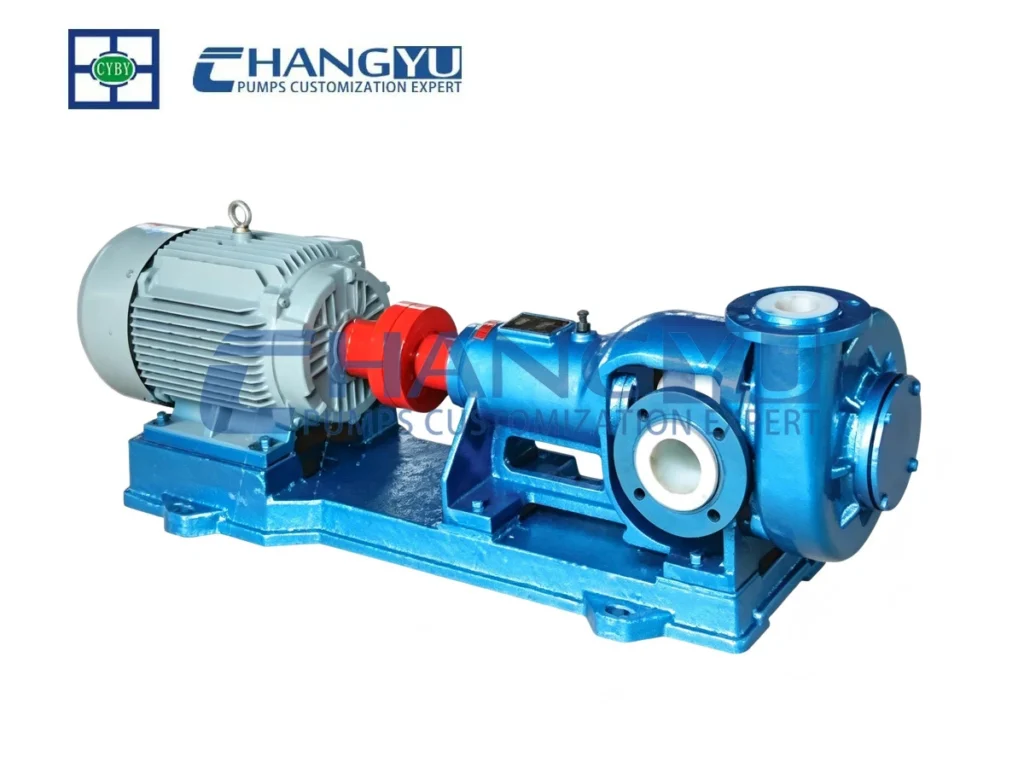

Depending on the process requirements, the UHFM Series Filter Press Pump is available in both single-stage and two-stage configurations. The single-stage pump is suitable for conventional-pressure transfer and applications requiring a relatively high flow rate. The two-stage pump increases the pressure progressively through two impellers, making it more suitable for high-pressure filtration and high-pressure slurry transfer.

The materials and structural configuration of the UHFM Series can be selected according to the corrosiveness, abrasiveness, solids content, temperature, and operating pressure of the medium. This enables the pump to meet continuous transfer requirements under different industrial operating conditions. As a dedicated Filter Press Feeding Pump, it can also be configured as a Slurry Pump for Filter Press systems handling corrosive or abrasive process slurries.

The Changyu UHB Series is also a corrosion-resistant and wear-resistant centrifugal pump designed for transferring corrosive, abrasive, and solids-containing media. It is widely applicable to chemical processing, mineral processing, wastewater treatment, acid and alkali transfer, slurry circulation, and other industrial applications requiring reliable corrosion and wear resistance. Different material and structural configurations can be selected according to the characteristics of the medium and the actual operating conditions.

Compared with the UHB Series, the UHFM Series is developed more specifically as a Filter Press Slurry Pump. The UHB Series is generally selected for continuous process transfer, circulation, and conventional slurry-handling duties, while the UHFM Series places greater emphasis on the changing pressure requirements, high-pressure feeding conditions, and maintenance needs of filter press systems. For conventional corrosive or abrasive slurry transfer, the UHB Series provides a practical and versatile solution. For filter press feeding or other applications requiring higher discharge pressure, a more specialized structure, or single-stage and two-stage pressure options, the UHFM Series is generally the more suitable choice. Final pump selection should be confirmed according to the required flow rate, discharge pressure, slurry properties, solids content, temperature, and chemical composition.

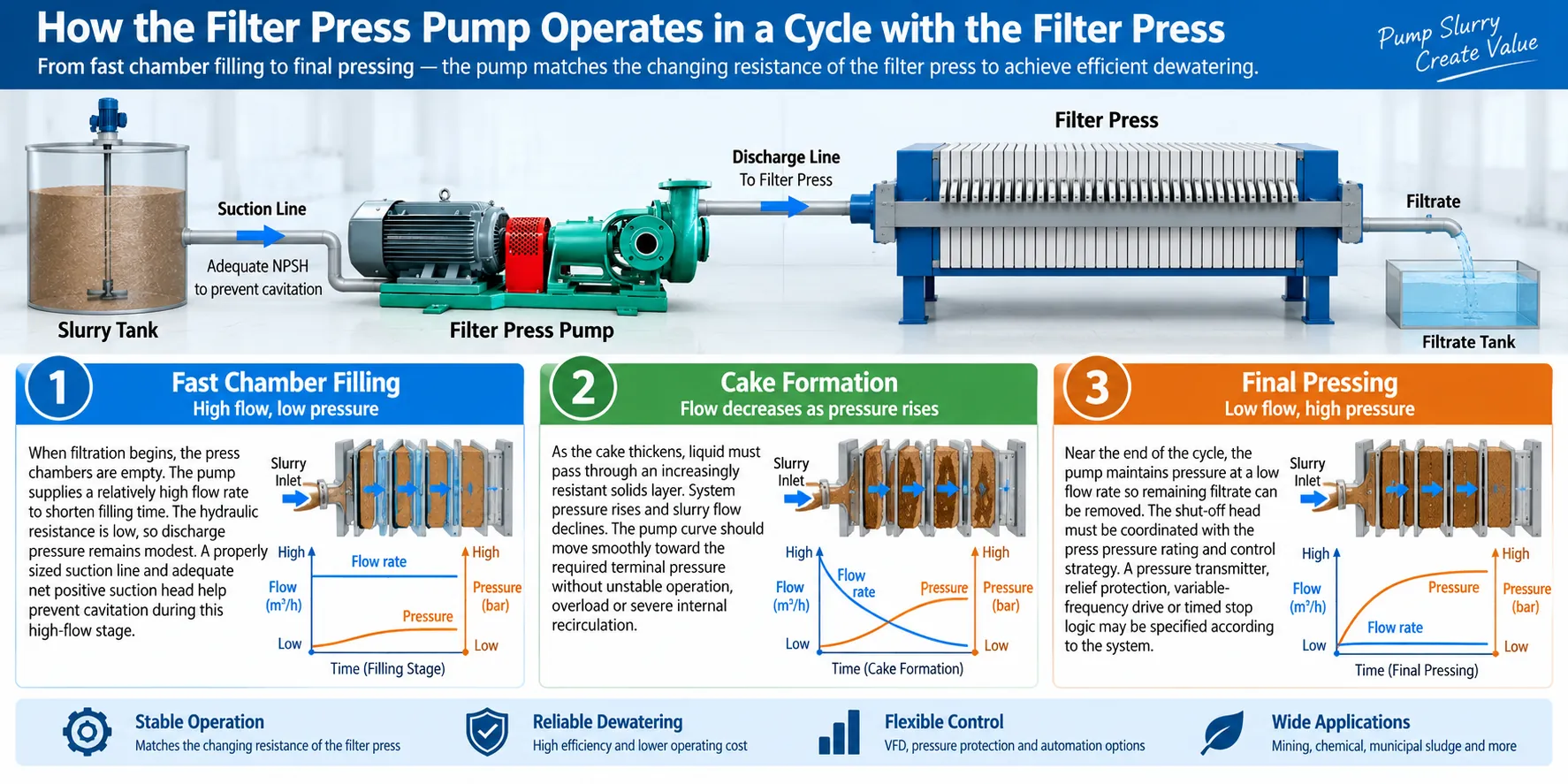

Filter press feeding is a variable-load process. At the beginning of a cycle, empty chambers accept slurry quickly and the system resistance is low. As solids accumulate on the filter cloth, resistance increases, the required discharge pressure rises and the flow rate naturally falls. The selected pump must operate stably across both ends of this curve while limiting leakage, excessive wear, cavitation and energy waste.

The following are the common parameters for filter press pumps.

Configuration	UHFM-I single-stage or UHFM-II two-stage centrifugal design
Typical inlet size	DN50–DN250
Typical flow range	Approximately 3–600 m³/h
Typical head range	Approximately 10–120 m
Typical speed	1450 / 2900 r/min, with model-specific alternatives
Wetted materials	UHMWPE, fluoroplastic, polyurethane, corrosion-resistant stainless steel or selected special alloys

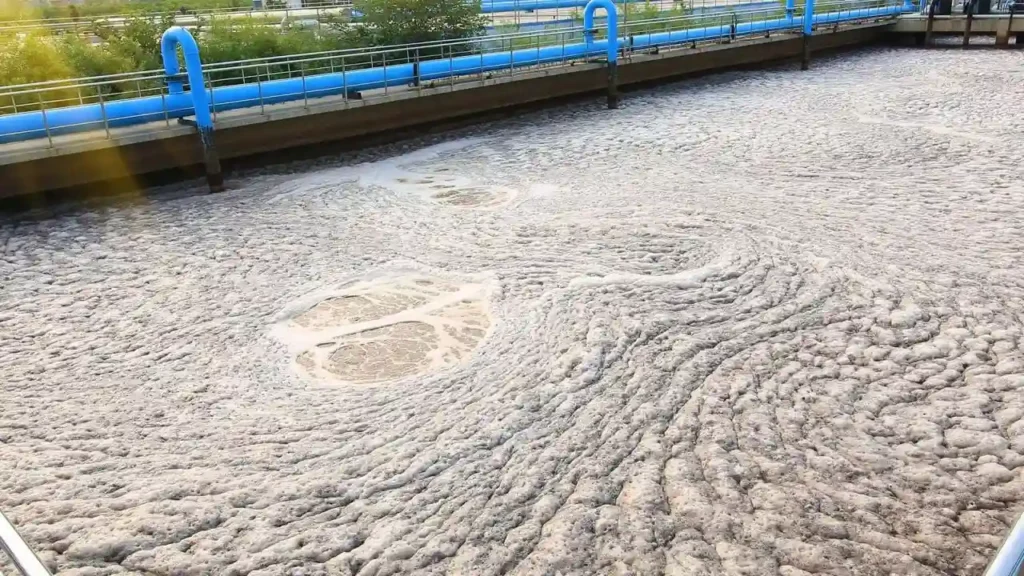

Handled media	Corrosive slurry, abrasive suspension, chemical sludge and process slurry with fine solids

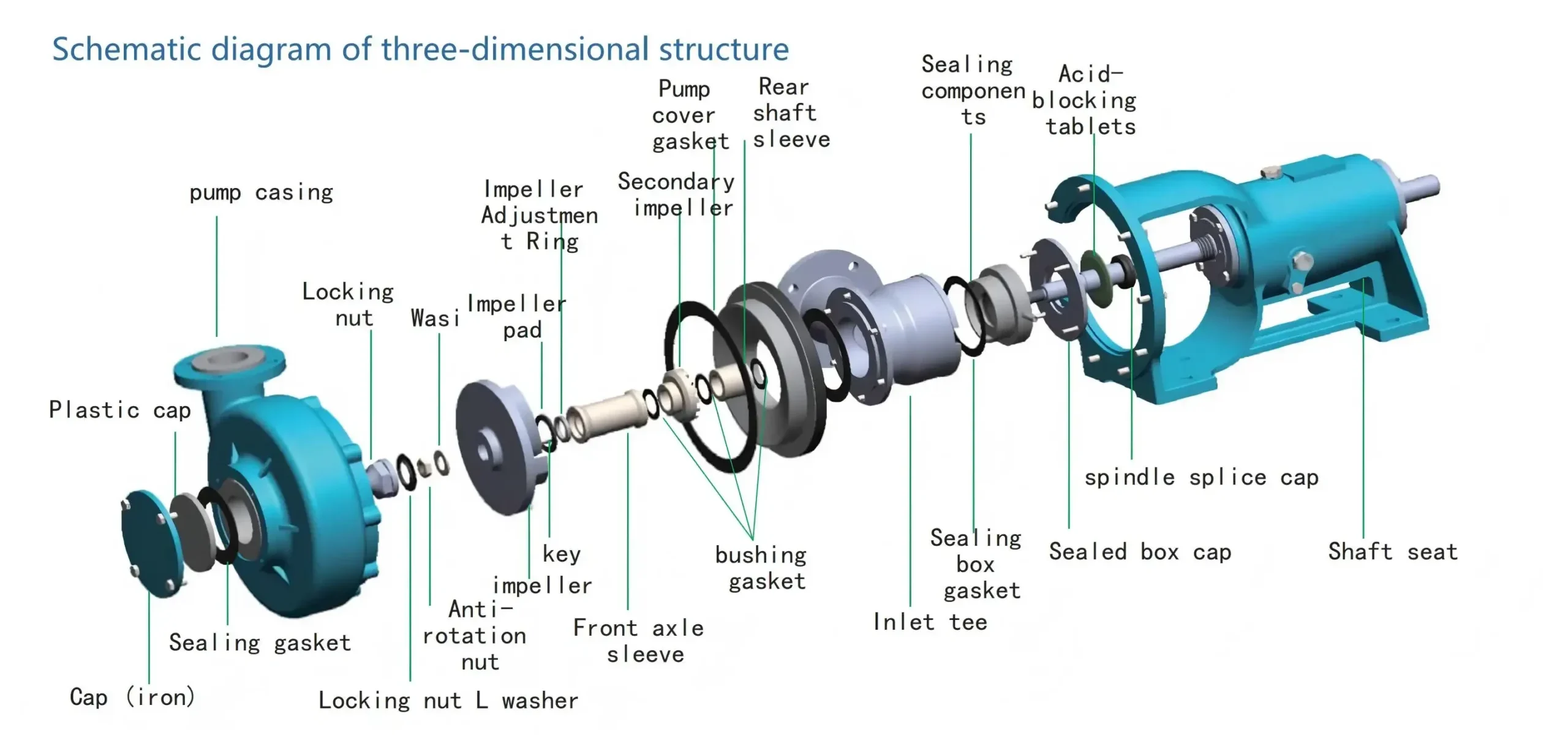

Parts of a Filter Press Feed Pump

A Filter Press Feed Pump consists of hydraulic, sealing, transmission, and supporting components designed for corrosive, abrasive, and solids-containing slurry.

• Pump Casing: Forms the main flow passage and directs the slurry toward the outlet.
• Pump Cover and Gaskets: Close the casing, prevent leakage, and provide access to internal wearing parts.
• Primary Impeller: Generates the flow and pressure required to feed slurry into the filter press.
• Secondary Impeller: Used in two-stage models to increase pressure progressively for high-pressure filtration.
• Impeller Adjustment Components: Rings, pads, nuts, washers, and keys maintain the correct impeller position and internal clearance.
• Pump Shaft: Transfers power from the motor to the impeller assembly.
• Front and Rear Shaft Sleeves: Protect the shaft from slurry contact and reduce wear on the main shaft.
• Intermediate Flow Passage: Guides slurry through the pump or between the two impeller stages.
• Sealing Assembly: Includes the seal chamber, sealing elements, bushings, cover, and gaskets to control shaft leakage.
• Acid Deflector: Prevents leaked or splashed corrosive liquid from reaching the drive-side components.
• Bearing Housing: Supports the shaft, maintains alignment, and ensures stable operation under changing pressure.
• Fasteners and Protective Components: Secure the internal parts and make inspection and replacement of wearing parts easier.

Materials and single-stage or two-stage configurations can be selected according to the required flow, pressure, corrosion resistance, abrasion resistance, solids content, and operating temperature.

Materials for Corrosive and Abrasive Slurry

A reliable Slurry Pump for Filter Press requires both chemical compatibility and resistance to particle wear. Material selection depends on chemical composition, concentration, temperature, solids percentage, particle size and shape, density, viscosity and the possibility of crystallization.

Material	Typical use	Important considerations
UHMWPE	Acidic or alkaline chemical slurries with abrasive fine solids	Combines corrosion resistance with strong abrasion resistance; temperature and chemical concentration must be checked.
Fluoroplastic	Highly corrosive chemicals requiring broad chemical compatibility	Exact resin and allowable temperature depend on the medium and pump design.
Polyurethane	Abrasive duties where chemical compatibility is suitable	Often selected for wear performance; verify solvent, temperature and hydrolysis resistance.
Stainless steel	Compatible process slurries requiring metal construction	Grade selection must account for chlorides, acids, pitting and crevice corrosion.
Special alloy	Severe combinations of corrosion, temperature and pressure	Specified case by case after a detailed media analysis.

See our chemical pump material selection guide for the factors that should be verified before choosing wetted parts. A material name alone is not a performance guarantee; compatibility must be confirmed at the actual concentration and temperature.

Is This the Right Pump for Your Filter Press?

If your current pump fills the press quickly but cannot build enough pressure, or reaches pressure but takes too long to fill the chambers, the problem is usually not simply “insufficient power.” A filter press asks the pump to do two very different jobs in one cycle. The right pump must deliver volume first and pressure later, while the slurry is becoming harder to move.

• This pump is a strong fit when the liquid contains fine solids and the pressure rises gradually during filtration.
• It is especially useful when the slurry is corrosive, abrasive or both, so ordinary cast-iron water pumps wear or corrode too quickly.
• It can be selected for new filter presses or used to replace a pump that suffers from slow feeding, frequent seal leakage, unstable pressure or short wet-end life.
• It is not selected by motor power alone. The filter area, chamber volume, slurry properties, pipe losses and final pressure all matter.

A practical rule: tell us what happens throughout the whole filtration cycle, not only the pressure shown on the gauge at the end. That information is far more useful for choosing a reliable Filter Press Pump.

What ChangYu Looks at Before Recommending a Pump

ChangYu has spent 21 years working with corrosive fluid and slurry transfer. In filter press projects, our engineers do not start by matching a model number. We first ask how the slurry behaves, how the press fills and where the existing system is losing time or wearing out parts. This experience matters because two slurries with the same pH can have completely different wear, settling and sealing behavior.

• We check the real filtration curve. Empty-chamber flow, pressure-rise time, final pressure and total cycle time reveal whether the system needs a single-stage pump, a two-stage pump or speed control.
• We separate corrosion from abrasion. Chemical compatibility protects the material from attack; wear resistance protects it from particles. A material must handle both.
• We ask what the solids actually look like. Fine crystals, soft sludge, sharp mineral particles and fibrous material do not move through a pump in the same way.
• We review the suction side. A pump cannot feed a press reliably if slurry settles in an undersized suction pipe or if the available suction head is too low.
• We match the seal to the slurry. The best seal arrangement depends on particle size, crystallization, allowable leakage, available flush water and maintenance habits.
• We check the press limit. Pump shut-off pressure, control setpoint and relief protection must stay within the filter press and piping pressure ratings.

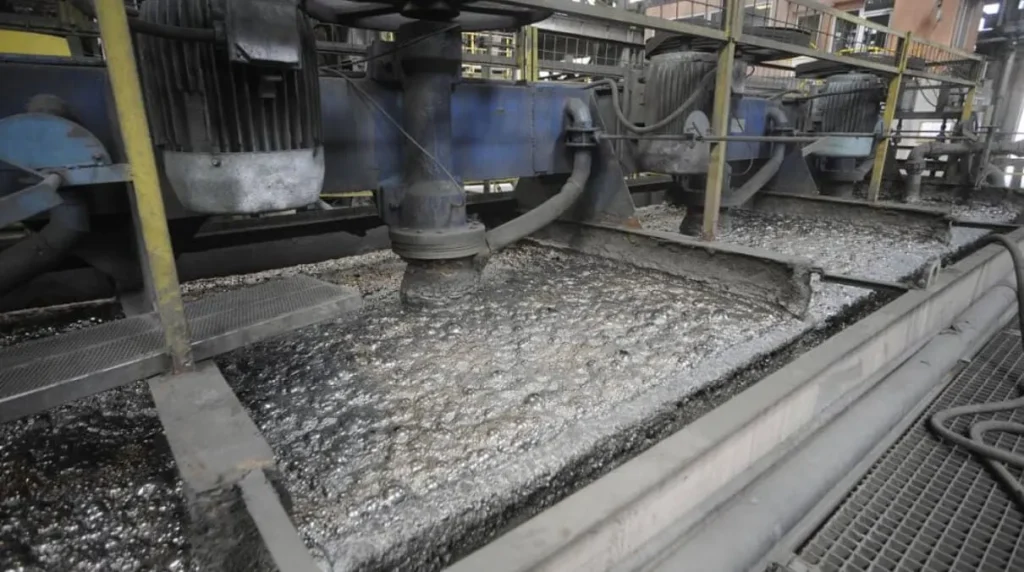

This engineering approach is also used in ChangYu’s UHMWPE slurry pump project for a lead-zinc smelting filter press system. The case gives buyers a real ChangYu reference instead of a generic product claim.

Operation and Maintenance Tips

Most premature failures are connected to the system, not a mysterious defect inside the pump. A few practical habits can greatly extend service life.

• Do not run the pump dry. Loss of liquid can damage seal faces and overheat non-metallic wet-end materials.
• Do not leave settling or crystallizing slurry inside the pump after shutdown. Flush with a compatible liquid when the process requires it.
• Track motor current and cycle time. A gradual increase may indicate cake behavior changes, pipe blockage, higher slurry density or internal wear.
• Inspect seals for small leaks before they become large leaks. Correct flush pressure and clean seal support lines are important.
• Listen for gravel-like noise or sudden vibration, which can indicate cavitation, air entry, blockage or a damaged impeller.
• Keep a record of slurry composition and replacement-part life. ChangYu can use this history to improve the next material or hydraulic selection.

Common Problems and What They Usually Mean

Symptom	Likely causes to check	Practical next step
Press fills too slowly	Low pump speed, blocked suction, excessive pipe loss, worn impeller or pump selected only for final pressure	Measure actual start-of-cycle flow and motor current; inspect suction and compare with the selected curve.
Final pressure cannot be reached	Insufficient head, bypass leakage, worn wet end, air entry or press leakage	Check pump shut-off capability, valve positions and whether the pressure loss is in the pump, pipe or press.
Seal leaks repeatedly	Dry running, solids at seal faces, crystallization, shaft movement, pipe strain or unsuitable seal arrangement	Review the failure surface and operating sequence before simply installing the same seal again.
High vibration or noise	Cavitation, air entrainment, solids buildup, misalignment, bearing damage or operation far from the suitable range	Check suction conditions, alignment and operating point immediately.
Wet-end life is short	Wrong material, sharp particles, excessive speed, local blockage or operation at very low flow	Provide worn-part photos and slurry data so corrosion and abrasion patterns can be separated.
Motor overloads during filling	Starting flow is higher than expected, slurry density increased or impeller diameter/speed is too high	Record current against pressure and verify the complete pump curve and motor margin.

What You Receive from ChangYu

A useful quotation should help you make a decision, not just show a price. After receiving enough operating data, ChangYu can provide a recommended model and configuration, expected duty range, wetted material proposal, seal option, motor information and the operating points that should be checked during commissioning. Custom documentation and inspection requirements can be discussed before order confirmation.

• Application review based on the complete filter press cycle
• Single-stage or two-stage hydraulic recommendation
• Material selection for both corrosion and particle wear
• Seal and auxiliary-system suggestions
• Motor and variable-frequency-drive coordination
• Installation, startup and maintenance guidance
• Spare-parts recommendation based on the expected wear pattern

When contacting us, you do not need to have every answer ready. Start with the press model, required pressure, slurry name and approximate solids content. Our team can guide you through the remaining questions in plain language.

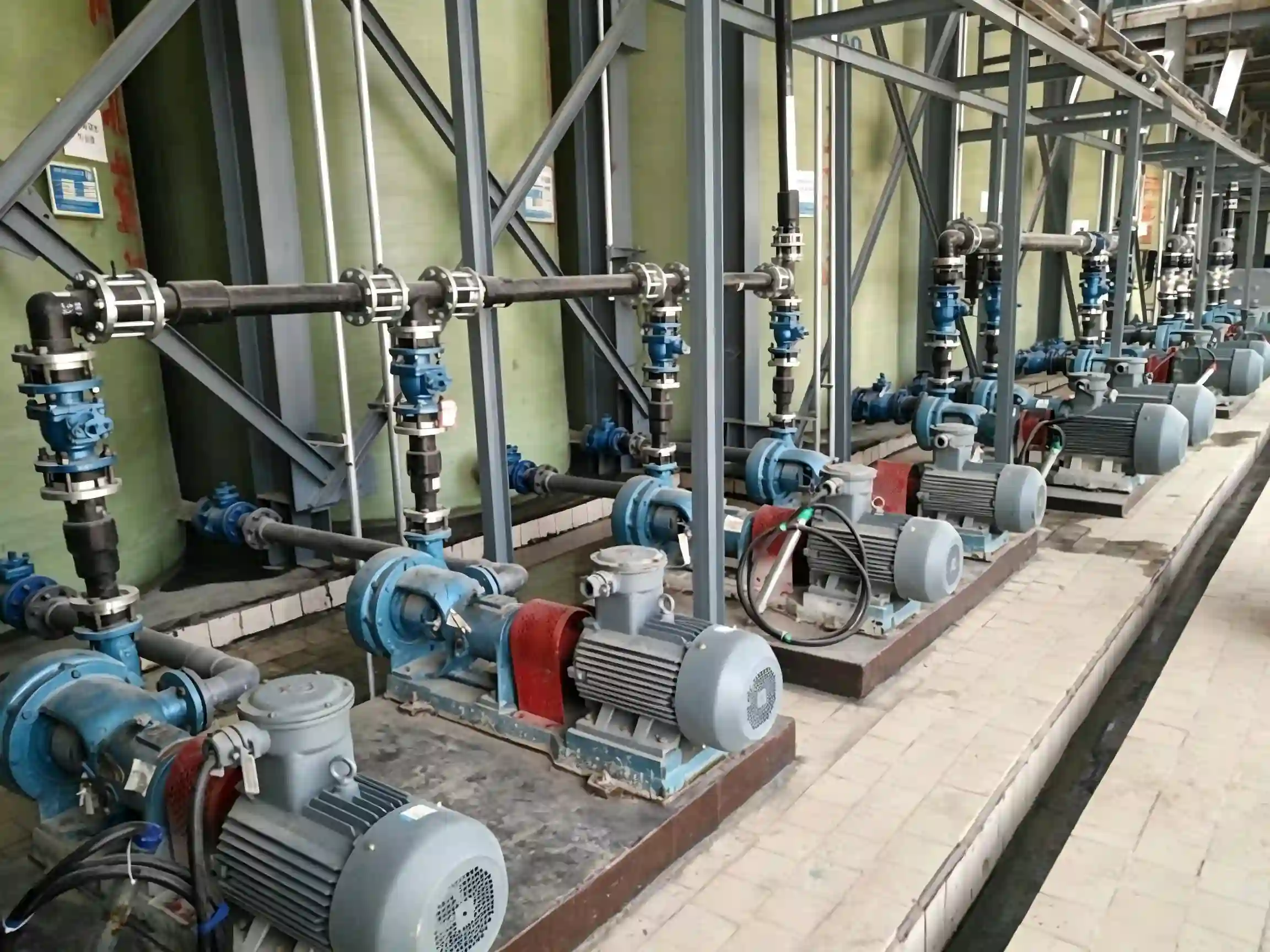

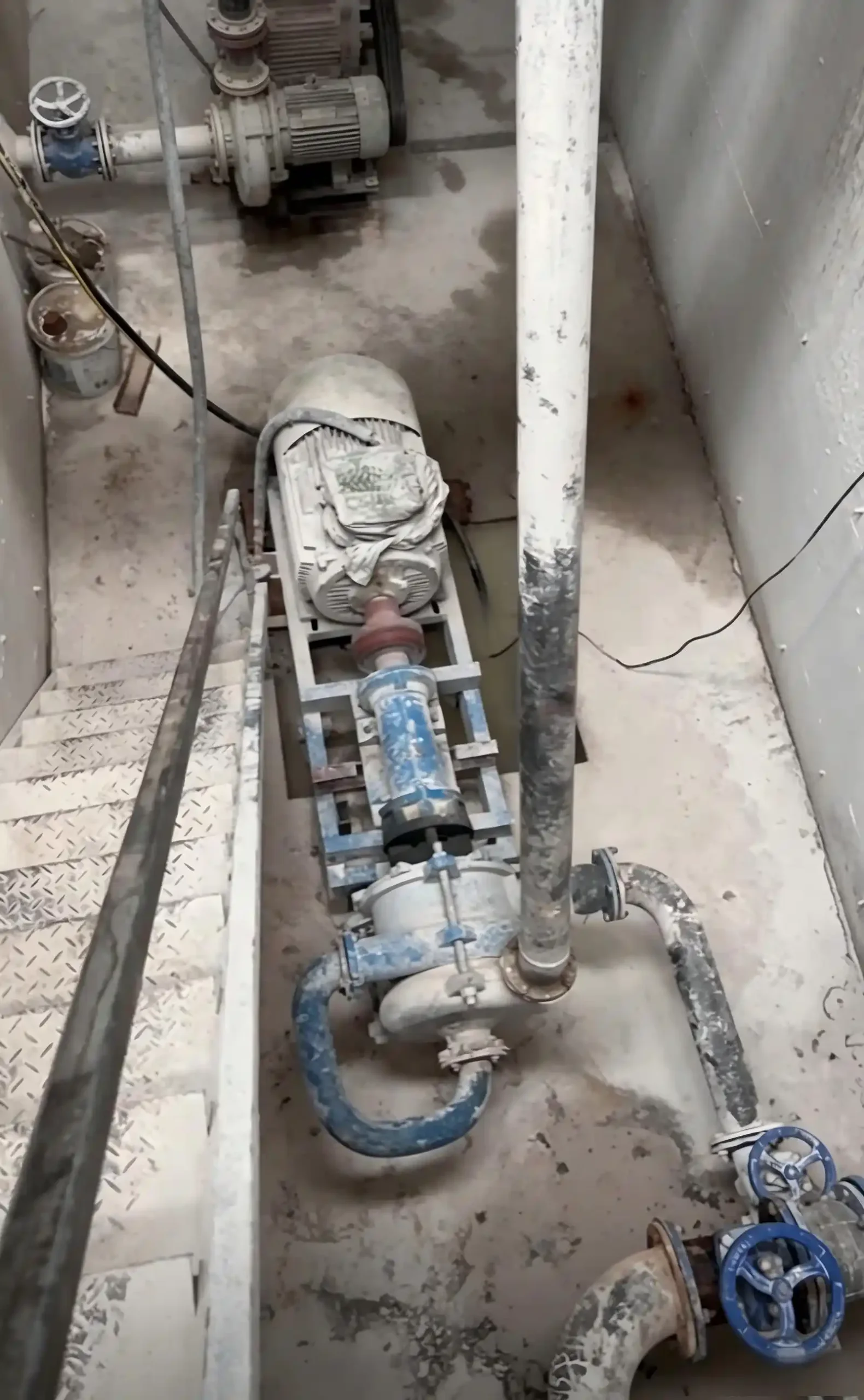

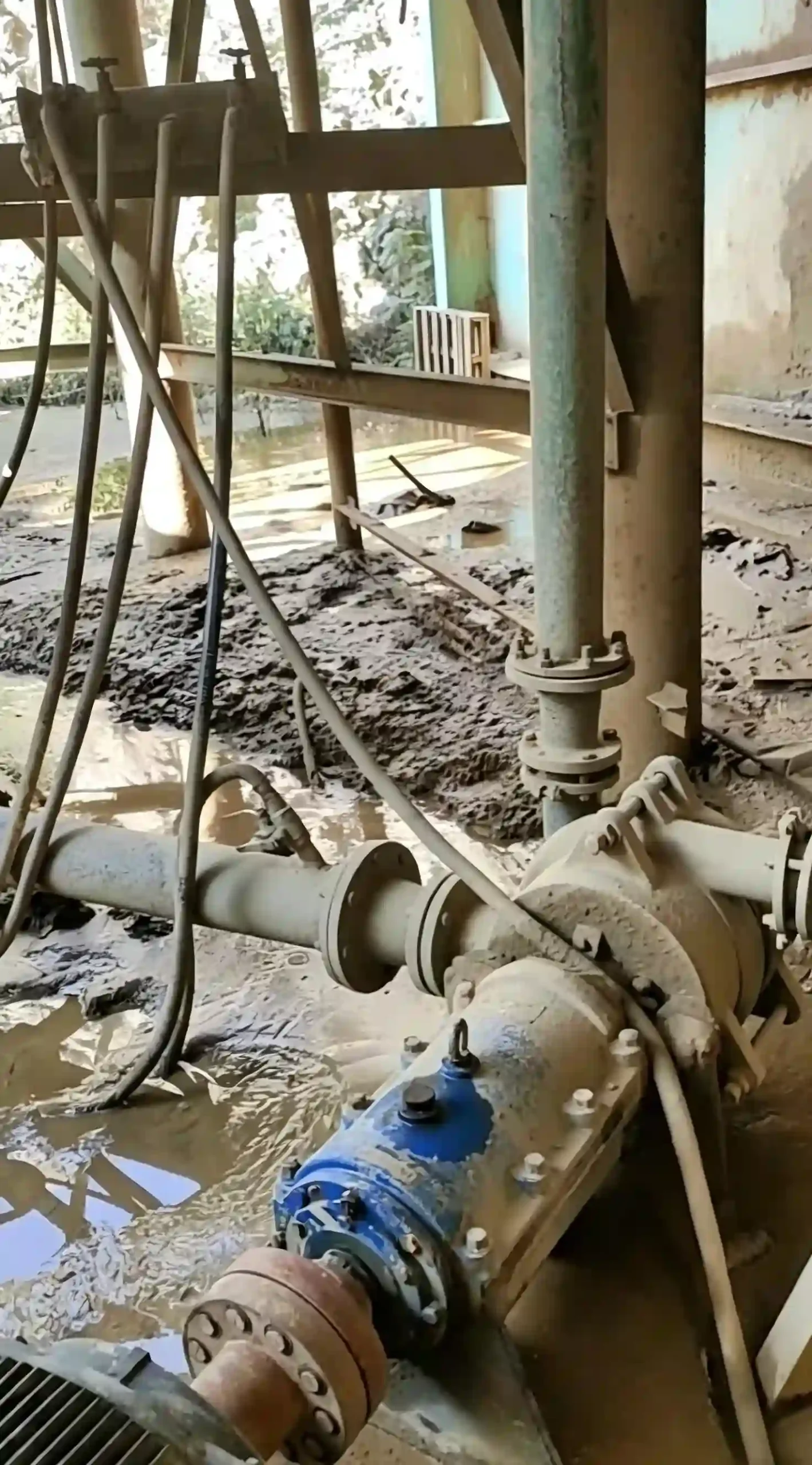

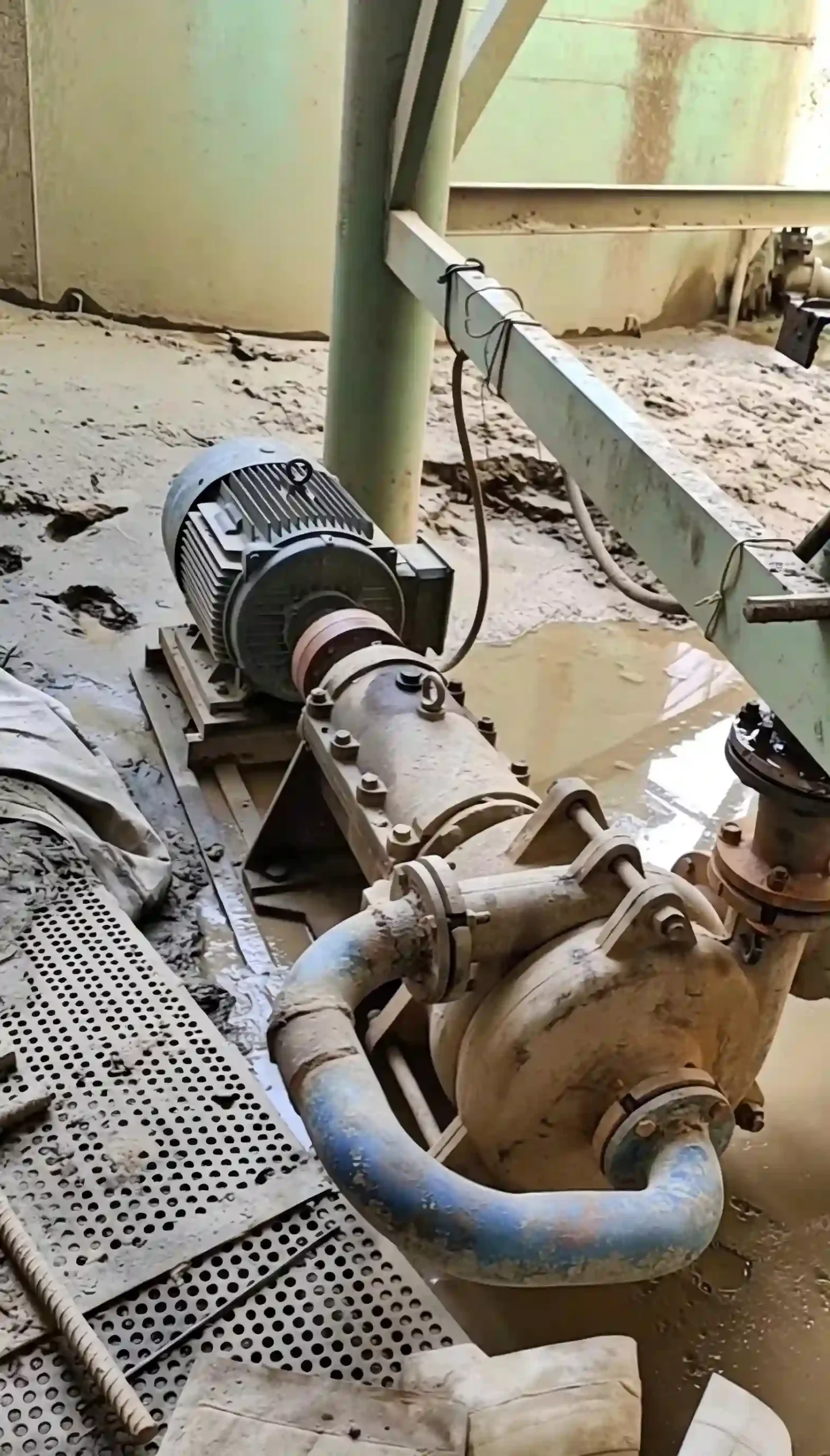

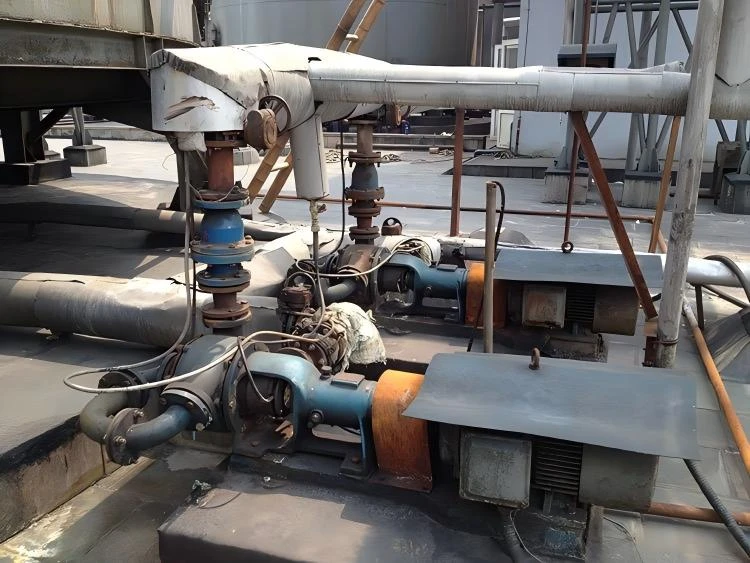

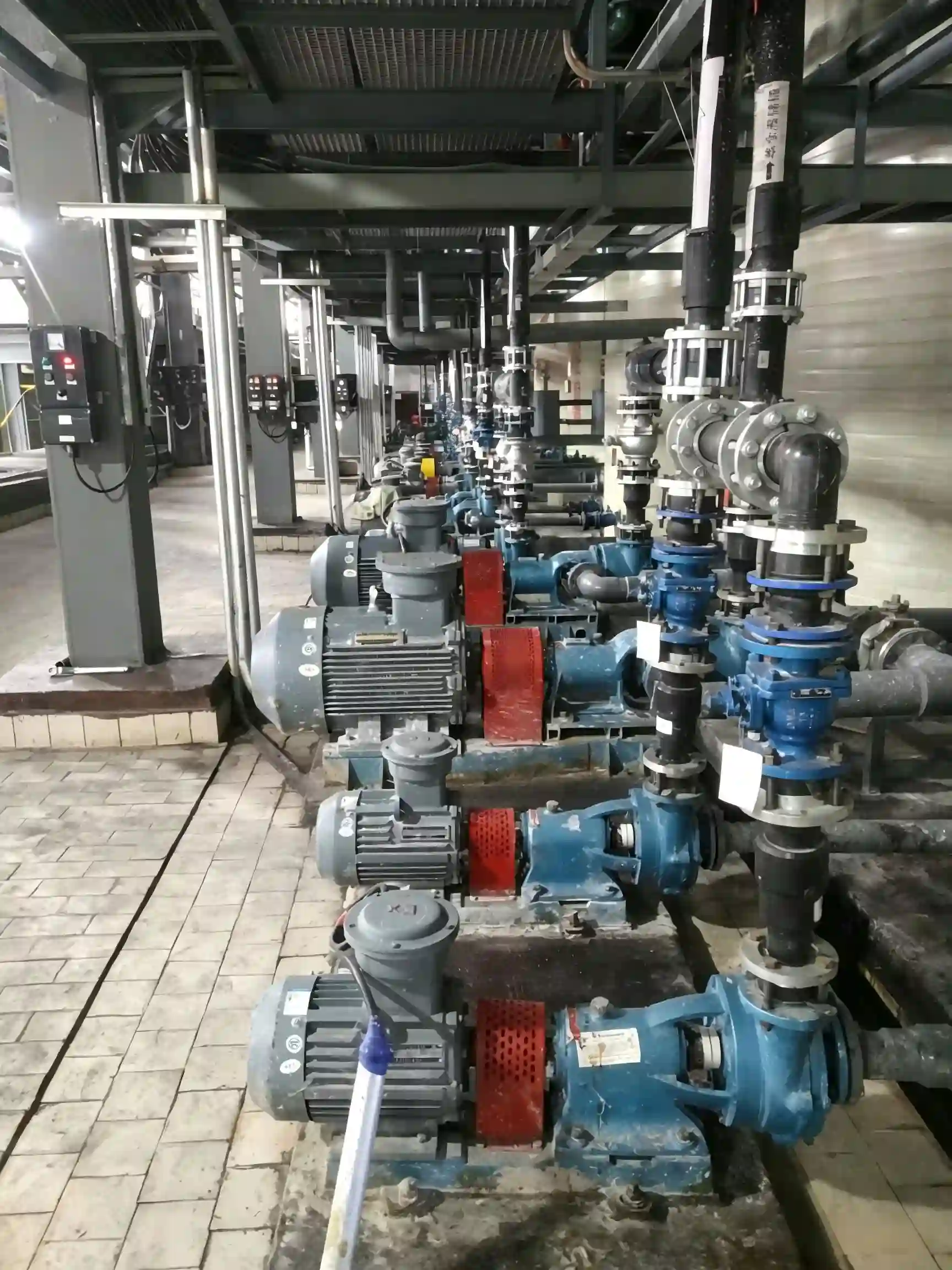

Filter Press Feed Pump in Operation

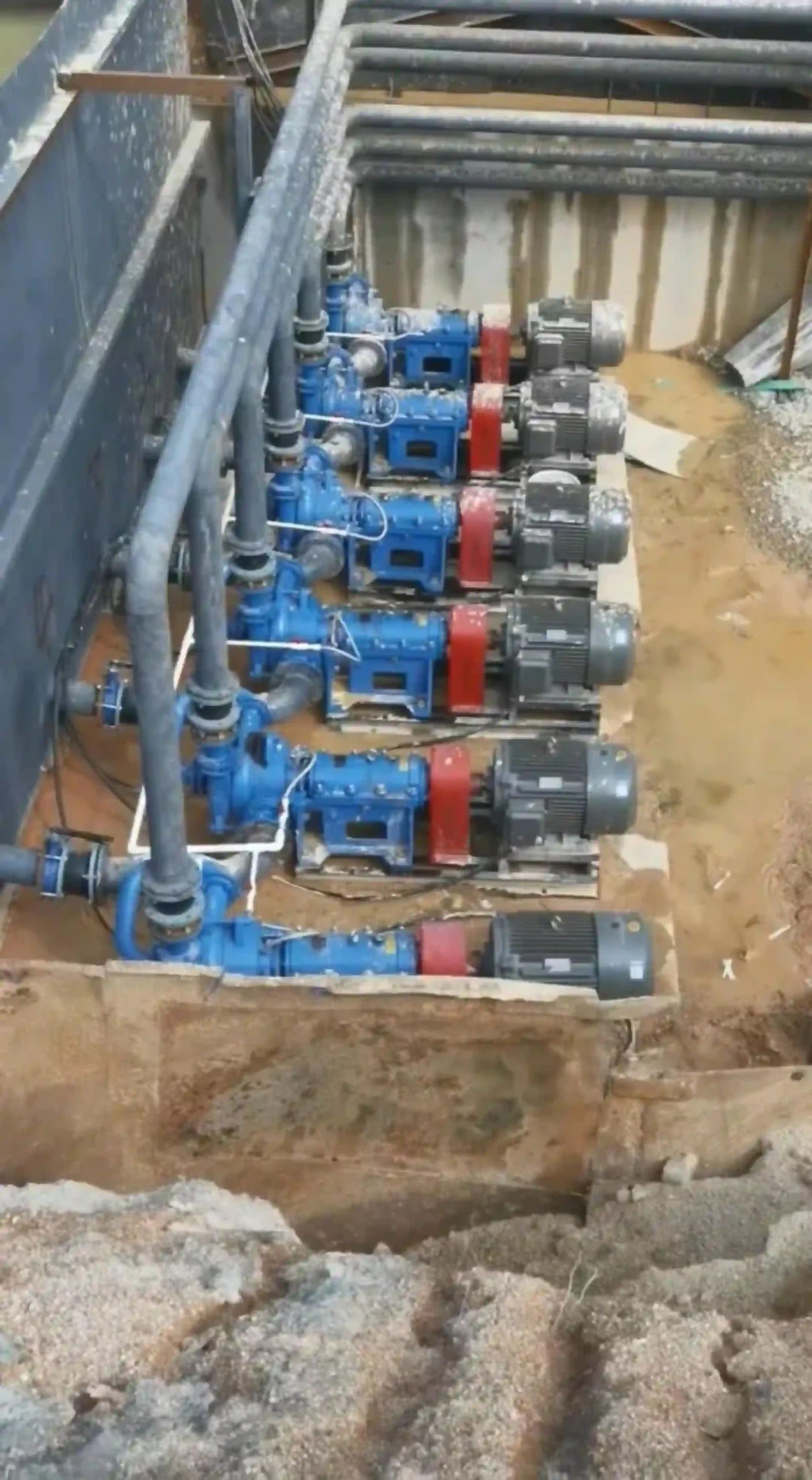

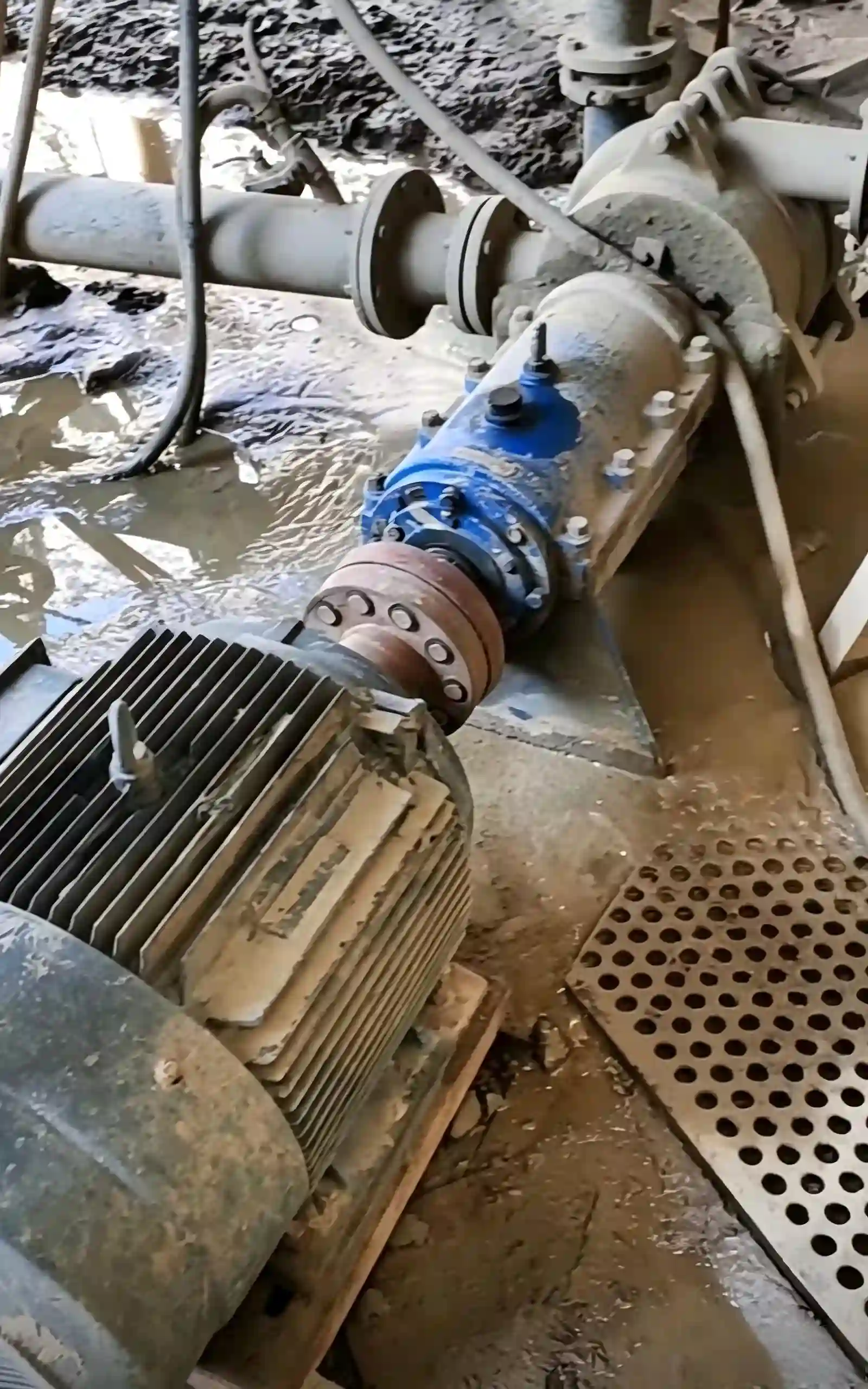

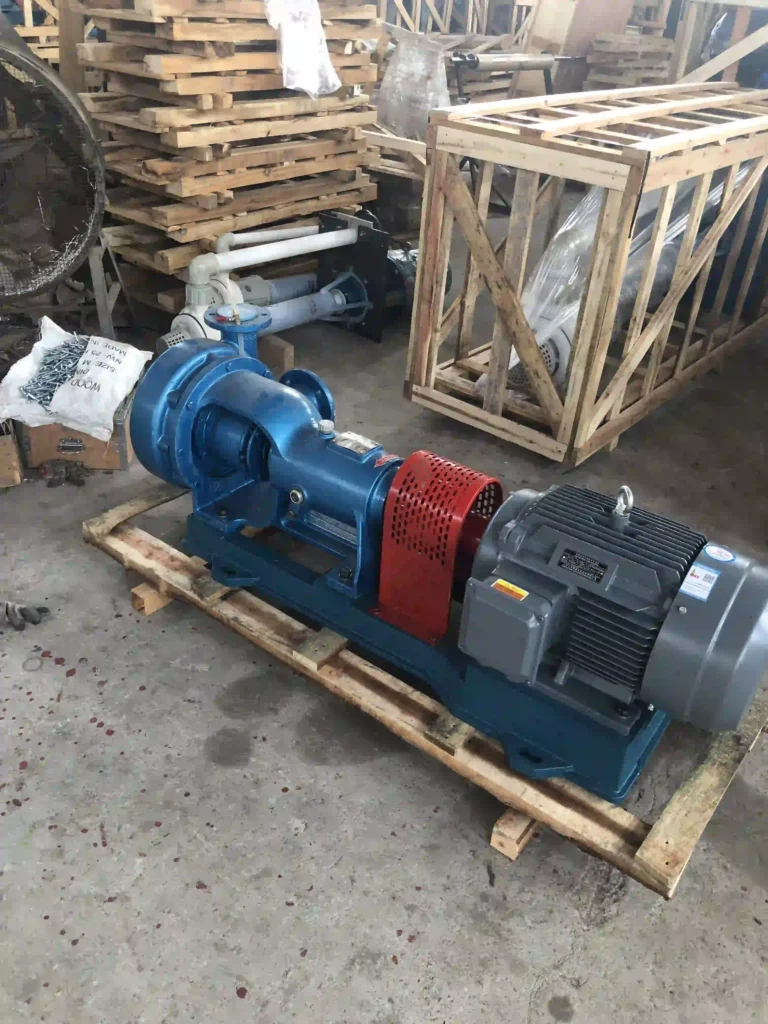

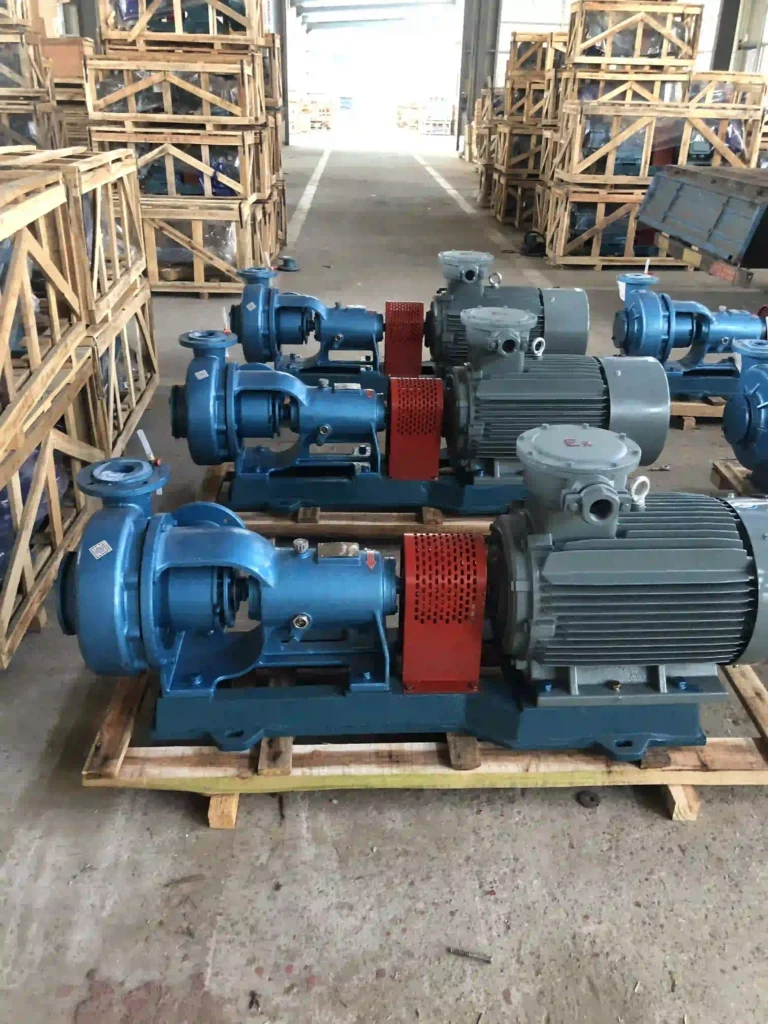

This section is reserved for nine on-site operating photos showing ChangYu filter press feed pumps in actual filtration and slurry-handling systems. Final pump configurations vary according to slurry composition, solids concentration, required feed pressure, filter press capacity, and site layout.
