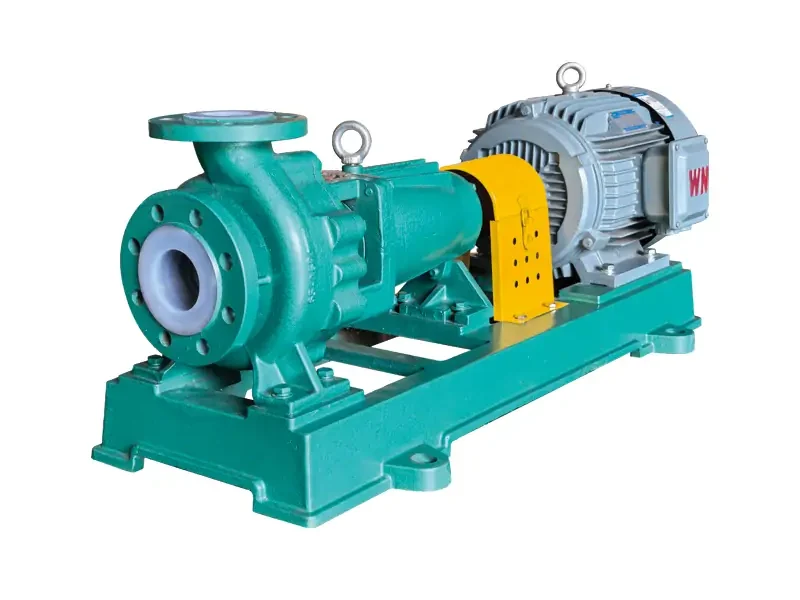

What is Centrifugal Pump?
A centrifugal pump moves liquid by transferring energy from a rotating impeller. Liquid enters near the impeller eye, accelerates outward, and passes through a casing or diffuser that converts part of its velocity into pressure. Centrifugal pumps are widely used for water supply, cooling and process-liquid transfer. The right design depends on flow, head, liquid properties and installation conditions.

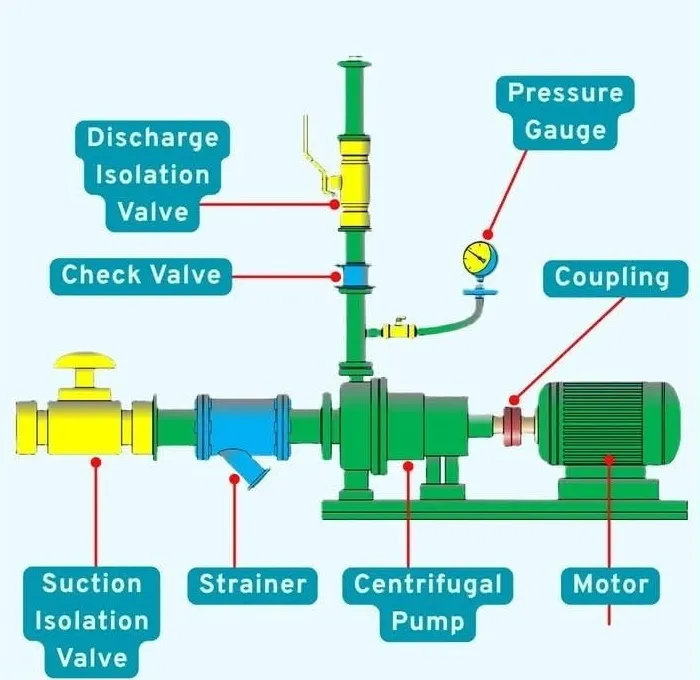

How Does a Centrifugal Pump Work?
The working principle of a centrifugal pump involves an electric motor driving the impeller to rotate at high speed, thereby causing the liquid inside the pump to form a rotating flow and generating high kinetic energy at the impeller outlet. Under the influence of centrifugal force, the liquid flows along the pump casing toward the outlet or is transported to the next stage impeller. Simultaneously, a low-pressure zone forms at the center of the impeller due to the outflow of liquid, creating a pressure difference with the liquid at the suction inlet, which drives the liquid to continuously enter the pump body. As the impeller continues to rotate, the pump achieves continuous suction and discharge, completing the liquid transportation process.

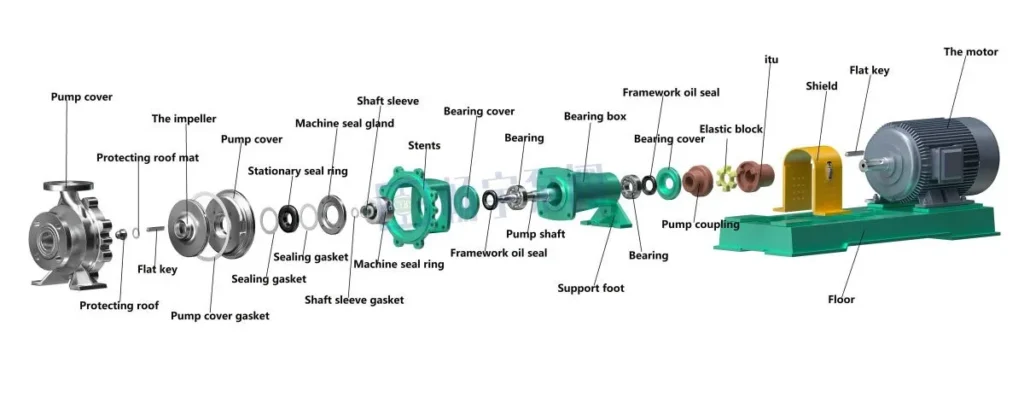

Centrifugal Pumps Parts
The centrifugal pump parts mainly consist of impellers, pump casings, pump shafts, bearing assemblies, sealing devices, suction and discharge ports, and drive motors. The following are the functional characteristics of each component:
Impeller: The impeller is the rotating element that imparts kinetic energy to the fluid, generating centrifugal force to move the liquid outward.
Pump Casing: The casing encloses the impeller and directs the flow of liquid from the impeller to the discharge outlet while converting velocity into pressure.
Shaft: The shaft transmits mechanical energy from the motor to the impeller, maintaining stable rotation and alignment.
Bearing Assembly: Bearings support the shaft and reduce friction, making is smooth and precise operation.
Mechanical Seal or Packing: Prevent liquid from leaking along the shaft where it exits the casing.
Suction and Discharge Nozzles: The suction nozzle allows fluid to enter the pump, while the discharge nozzle guides it out under pressure.
Motor or Driver: The motor provides the necessary power to rotate the impeller and drive the pumping process.
Types of Centrifugal Pumps
Centrifugal pumps can be classified by stage count, installation arrangement and sealing or drive construction. These categories overlap: a single pump can be single-stage, horizontal and magnetically driven.
- By stage count: Single-stage pumps use one impeller; multistage pumps use successive stages to build head. For a single-stage example, review the CYA single-stage centrifugal pump.
- By installation: Horizontal, vertical and immersed arrangements suit different layouts and liquid levels.
- By drive and sealing: Mechanically sealed and magnetic drive designs use different containment arrangements.

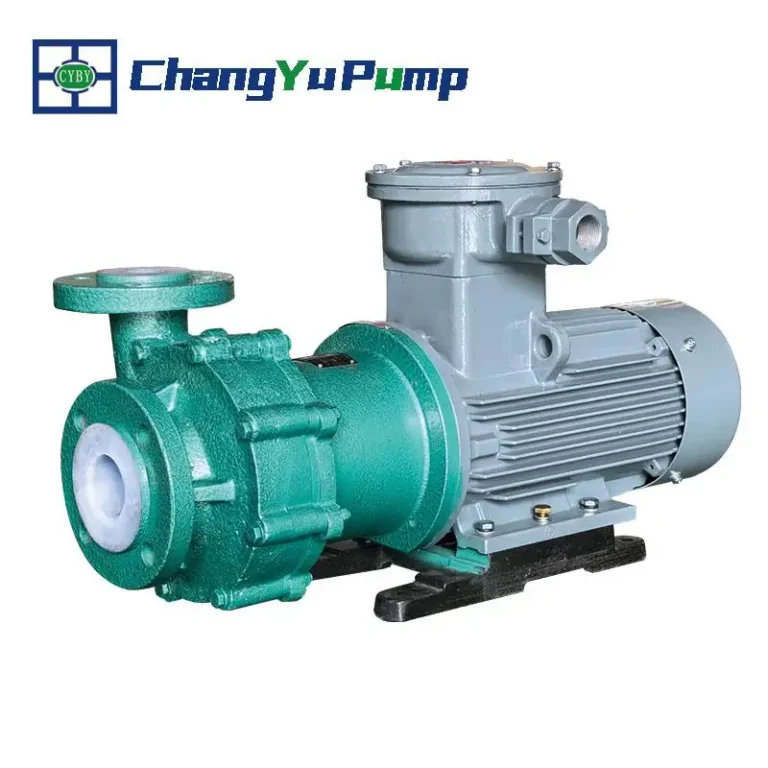

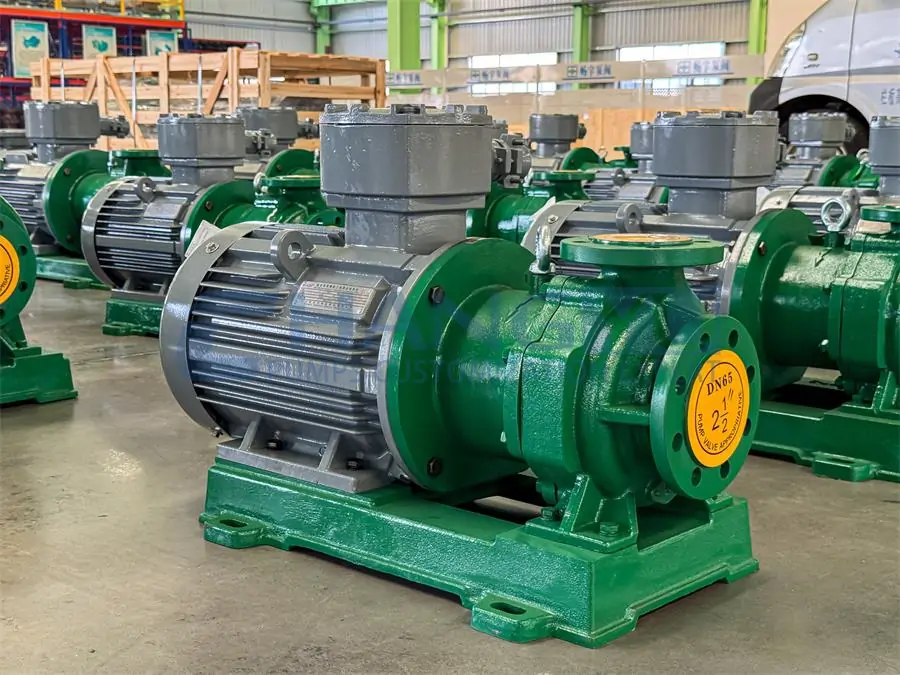

Magnetic drive centrifugal pumps: A magnetic coupling drives the impeller across a stationary containment shell, avoiding a rotating mechanical shaft seal. See the CQ magnetic drive centrifugal pump for a product example. Fluid compatibility, pressure-temperature limits, clean-liquid requirements and dry-running protection still need verification.

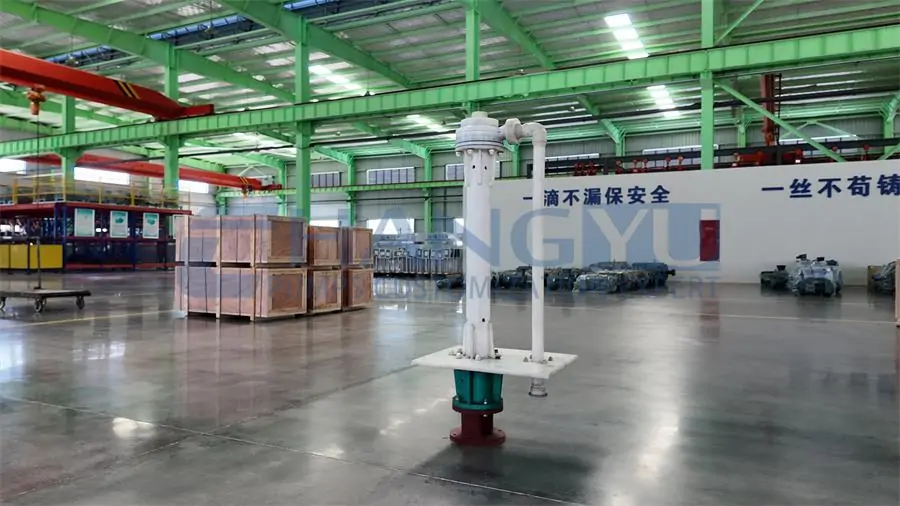

Semi-submersible pumps: The hydraulic end is immersed while the motor remains above the liquid. Minimum immersion, shaft length and support arrangement must match the installation; this is not the same construction as a fully submersible pump.
Self-priming centrifugal pumps: An internal air-liquid separation process allows the pump to evacuate the suction line within its specified suction-lift limit. Initial casing filling is normally required. Self-priming does not mean dry-running capability; see how to prime a centrifugal pump for startup considerations.
Water pumps: General-purpose design for clean water transportation (e.g., municipal water supply, agricultural irrigation).

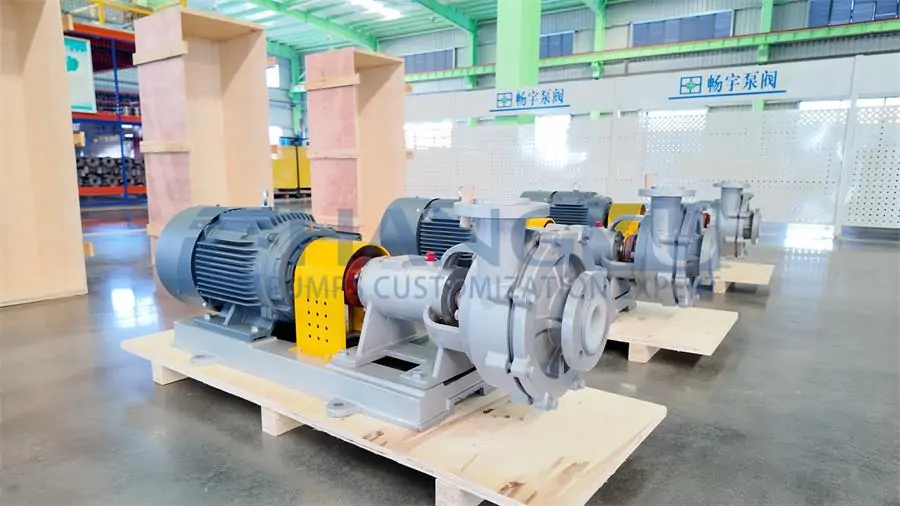

Acid pumps: Manufactured using corrosion-resistant materials (e.g., PVDF, Hastelloy), specifically designed for acidic media (e.g., sulfuric acid, hydrochloric acid).
Alkali pumps: Equipped with special seals and material processing techniques, suitable for strong alkaline liquids (e.g., sodium hydroxide, electrolyte).
What is centrifugal pump used for?
Industrial centrifugal pumps are widely used across multiple industries:
Water & Wastewater: Transferring clean water, sewage, and stormwater in treatment plants.
Oil & Gas: Transporting crude oil, refinery fluids, and seawater in offshore operations.
Chemical & Pharma: Handling corrosive acids, solvents, and sterile pharmaceutical liquids.
Power Plants: Circulating boiler feedwater, cooling water, and condensate in energy generation.
Mining & Manufacturing: Pumping abrasive slurries and industrial coolants.
Agriculture: Distributing irrigation water and agrochemicals efficiently.
For a chemical-process application, review the CYH stainless steel centrifugal chemical pump and confirm the alloy and sealing arrangement against the actual liquid. For abrasive solids or high viscosity, use duty-specific designs rather than assuming that a general clean-water pump is suitable.
Advantages of Centrifugal Pumps
High Efficiency: Engineered for optimal energy conversion, delivering superior flow rates with minimal power consumption.
Maintenance considerations: A straightforward hydraulic design can simplify maintenance, but the impeller, shaft, bearings and seals still require appropriate inspection and operating conditions. Maintenance demand depends on the selected design and duty.
Compact Footprint: Space-saving vertical/horizontal configurations adapt to constrained industrial layouts.
Material Versatility: Available in stainless steel, cast iron, fluoroplastic and advanced polymers to handle corrosive/abrasive media.
Pulsation-Free Operation: Continuous rotary motion ensures smooth, vibration-free fluid transfer critical for precision processes.
Centrifugal vs Positive Displacement Pumps

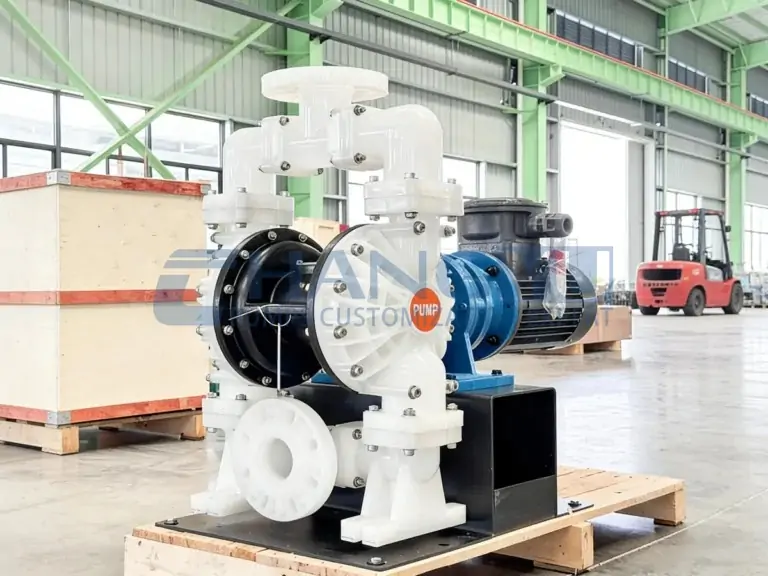

A centrifugal pump develops flow and head through a rotating impeller; its operating point depends on both the pump and system curves. A positive displacement pump moves trapped volumes of liquid. Diaphragm pumps are positive displacement pumps, not a type of centrifugal pump. High-viscosity or metering duties may favor a positive displacement design; abrasive slurry requires a separate wear and particle-passage assessment.
To choose a model, define flow, total head, temperature, viscosity, solids and available NPSH, then follow our centrifugal pump curve reading and selection guide. For component-level detail, use the existing parts guide rather than selecting from pump appearance alone.
Conclusion
Centrifugal pumps are versatile, highly efficient, and widely used, making them the core equipment of modern fluid delivery systems. Changyu Pump As a professional pump solution provider, we focus on meeting the special fluid handling needs of various industries and offer comprehensive customized services. If you need the most suitable pumping solution for your working conditions, please feel free to contact our technical experts for consultation.
