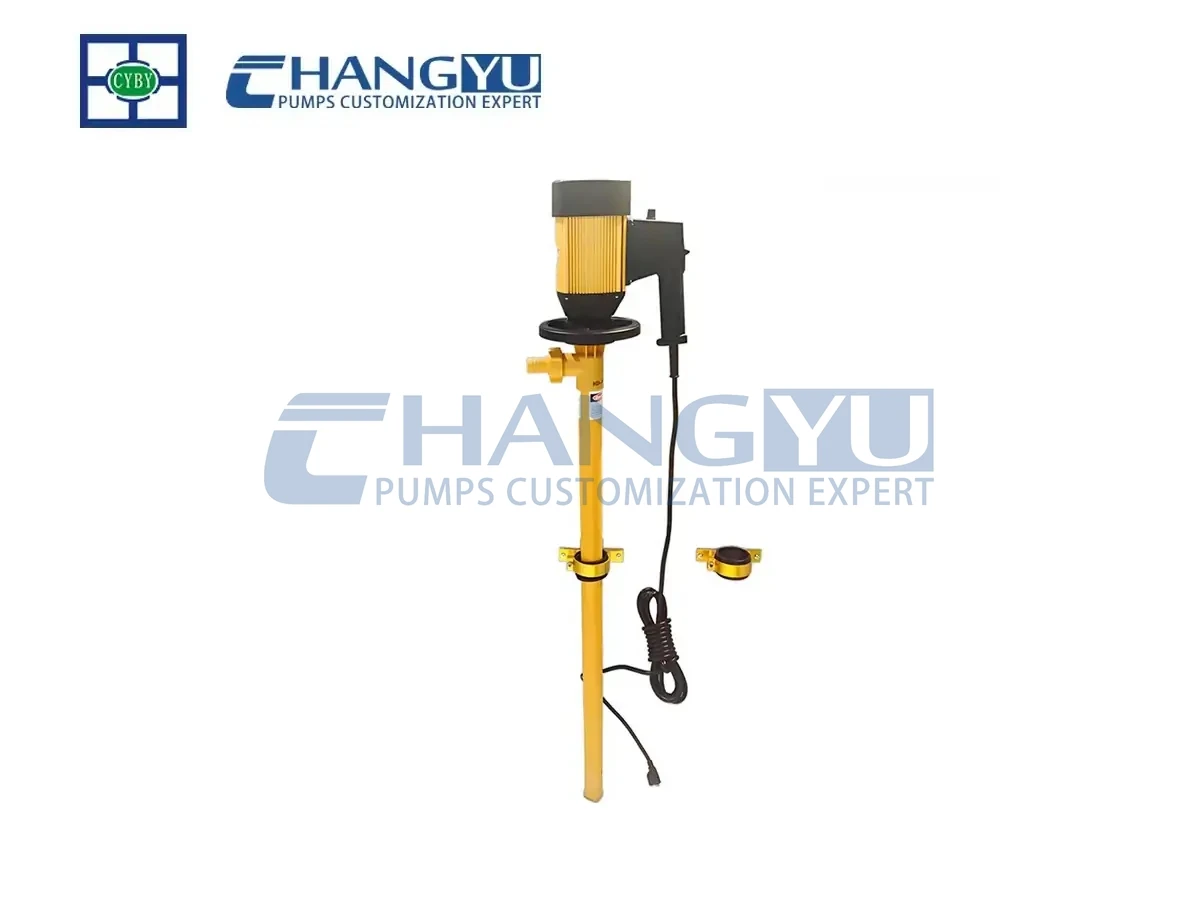

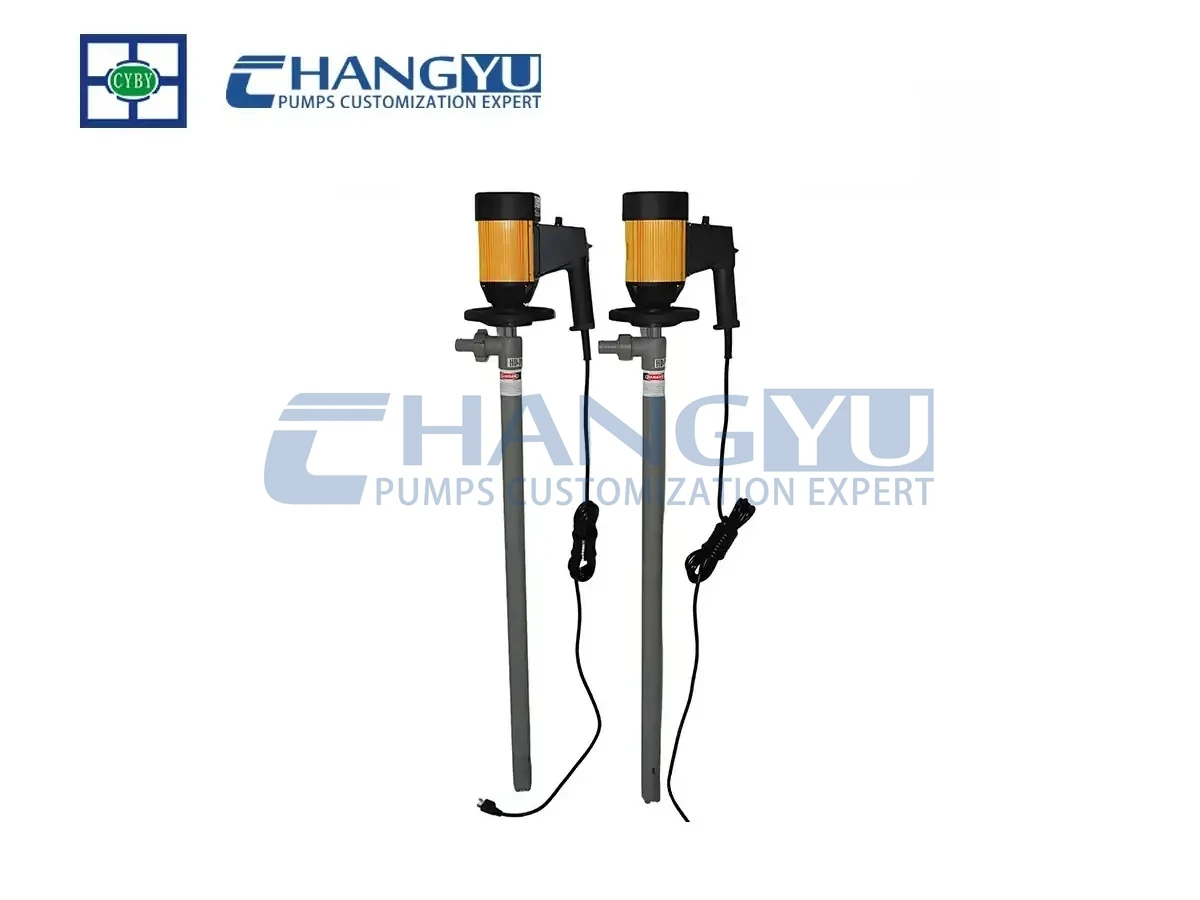

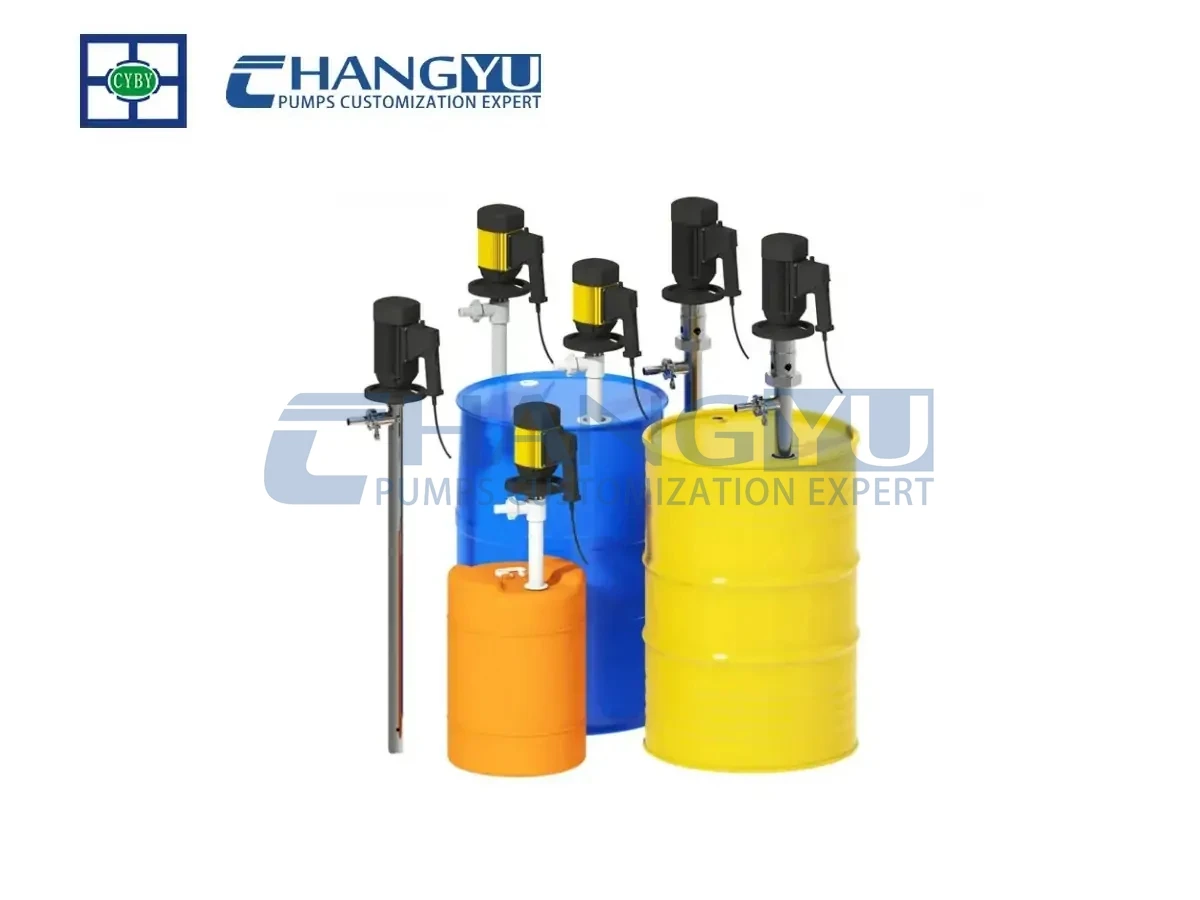

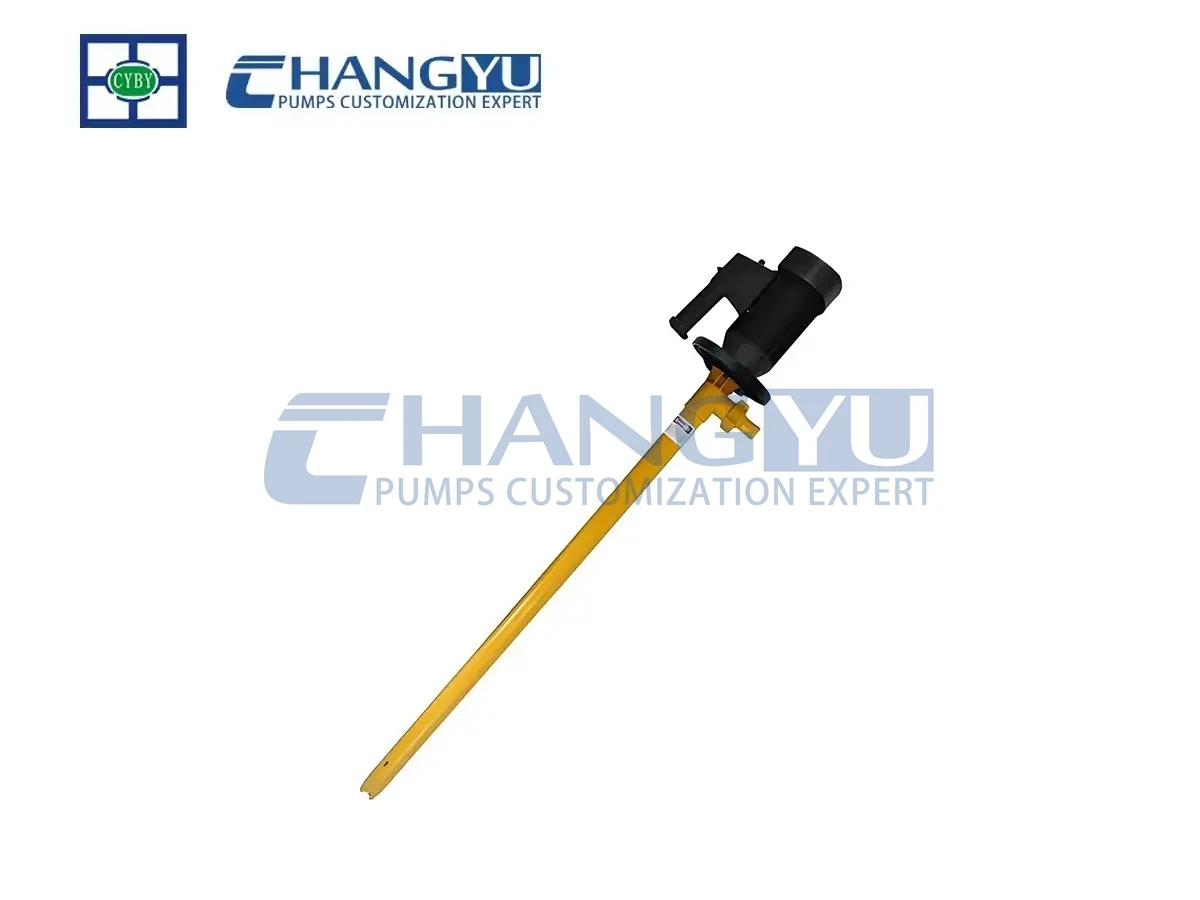

HD Series Chemical Drum Pump
The HD Chemical Drum Pump, also known as an oil barrel transfer pump, ChangyuPump offers high-quality Semi-submersible Pumps that deliver consistent performance, ease of use, and reliability at highly competitive prices. All critical components utilize imported parts—including deep groove ball bearings, VT fluororubber seals, TFEP fluoropolymer oil seals, and shaft sleeves from Switzerland, Japan, and Taiwan. This guarantees authentic materials and structural durability, providing customers with consistently high reliability and long service life.
|
Flow Range : |
Maximum 198 L/min |
|
Head Range: |
Maximum 30 m |
|
Temperature: |
Speed: 0-12,000 r/min |
|
Material : |
304, 316L, PVDF, PP, Aluminum Alloy, Hastelloy, Plastic |
Introduction
The HD Chemical Drum Pump is specifically designed for safe and efficient operation, making it ideal for transferring various corrosive chemicals, oils, and solvents from drums and containers. It features a robust construction with chemically resistant PTFE and fluororubber fluid passages. Designed with operator safety in mind, it incorporates leak-proof design and spark-free operation mechanisms, making it suitable for volatile environments. Whether in industrial manufacturing, laboratories, or waste management applications, the HD Chemical Drum Pump provides a reliable and cost-effective solution for safe fluid management.

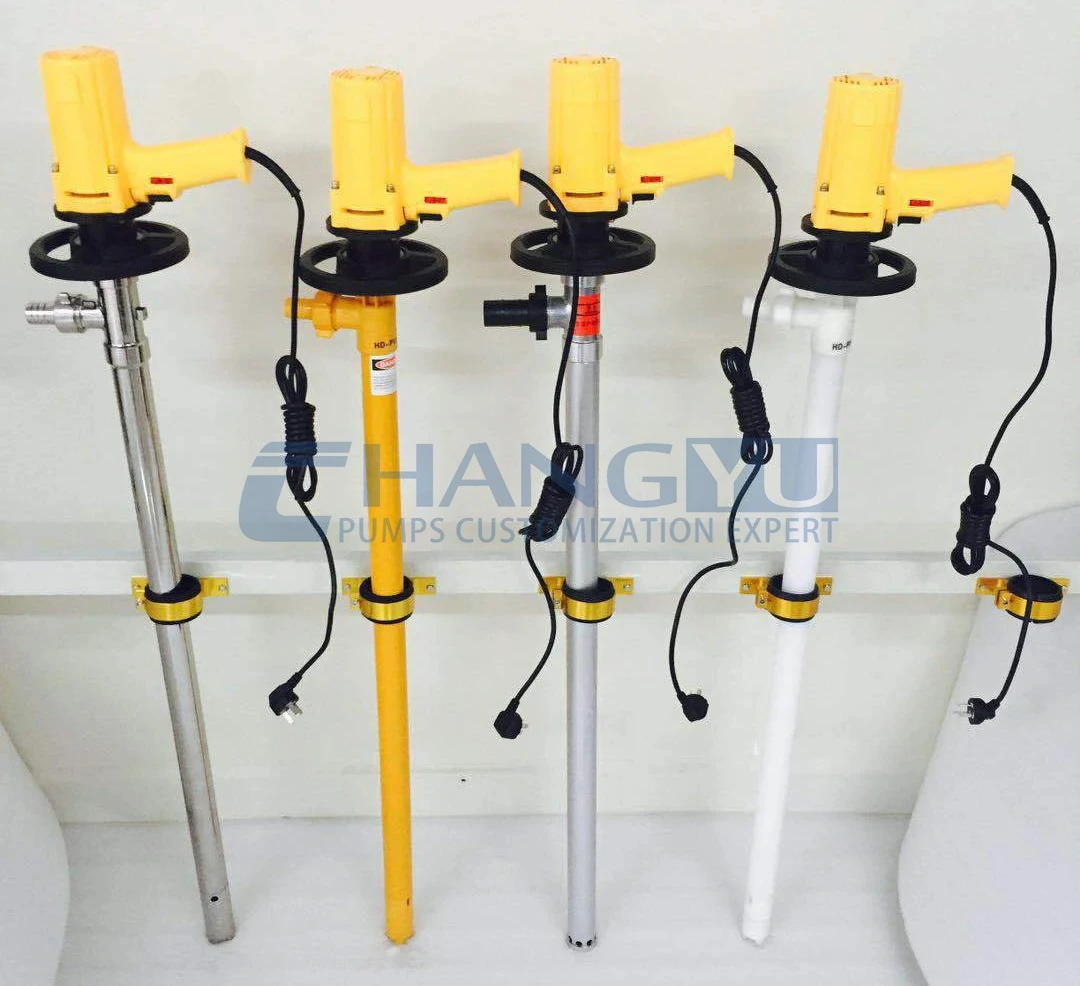

Chemical Drum Pump Parts
The Chemical Drum Pump primarily consists of core components such as the pump tube, motor/pneumatic drive head, impeller, discharge port, and sealing assembly, which collectively ensure safe and efficient transportation of chemical liquids. Below is an overview of the features of each component:
- Pump Tube: Typically made of corrosion-resistant materials (such as PP, PVDF, PTFE, stainless steel, etc.), it is directly immersed in the container to transport liquid. It features no leakage, resistance to chemical corrosion, and a customizable length to accommodate different container depths.
- Motor or Pneumatic Drive Head: Electric models are equipped with speed control and overload protection functions, while pneumatic models are suitable for explosive environments, providing stable power output, simple operation, and compatibility with multiple energy sources.
- Impeller: Typically designed with closed or open chemically resistant structures, capable of efficiently conveying fluids from low to high viscosity, and supporting short-term dry running without damage.

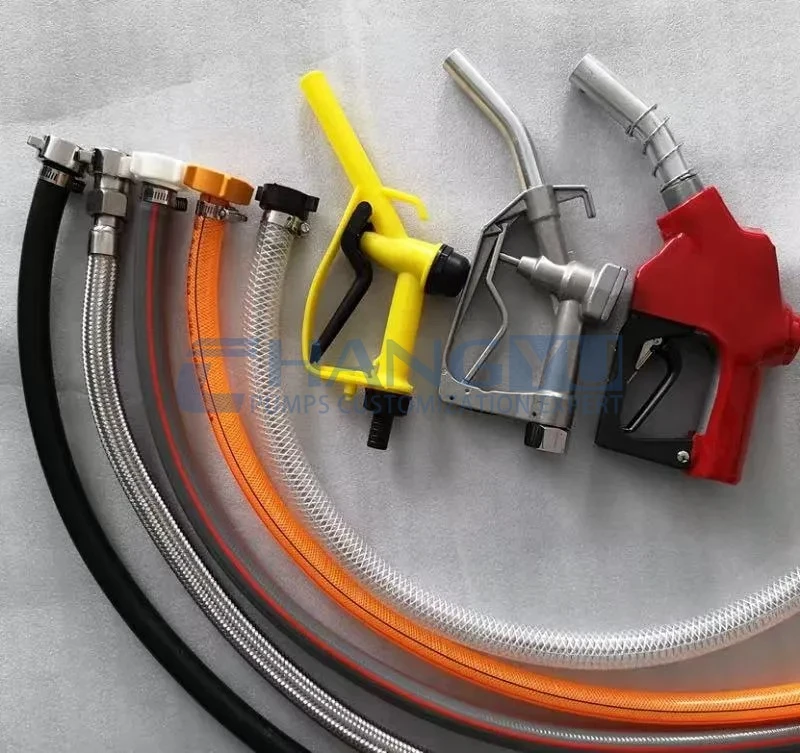

- Discharge Outlet: Standard threaded connections (e.g., G1″) or hose fittings for easy connection, supporting quick switching of conveying pipes to reduce leakage risks.
- Sealing System: Features a seal-less design (magnetic drive or dry-running configuration) to completely eliminate leakage, requiring no maintenance, and is particularly suitable for handling hazardous, high-purity, or flammable liquids.
Chemical Drum Pump Working Principle
The Chemical drum pump is driven by an electric or pneumatic motor, which causes the impeller inside the pump to rotate at high speed. Centrifugal force is used to draw oil from the bottom of the container into the pump pipe, where it is accelerated by the impeller. The kinetic energy of the liquid is converted into stable pressure within the pump chamber and then discharged through the outlet, achieving efficient transportation. The entire system employs a seal-less design, eliminating the risk of leakage and ensuring safe, clean, and cost-effective transfer of oil and viscous media (such as lubricating oil, fuel, etc.). Taking the oil drum pump as an example, here is how it works:
Specifications
If you require further information on specific applications or product selection, please feel free to consult our professional technical team.
Note: At Changyu, we provide one-on-one technical guidance and product recommendations tailored to your specific operating conditions. If you have any questions, please feel free to contact us right away, our team of experts will respond within 24 hours.
Email: jade@changyupump.com
Phone: +86-13651913727
Advantages of the Chemical Drum Pump
Comprehensive leak-proof design
Features a shaftless design and leak-free pump tube structure to eliminate leakage risks, making it particularly suitable for transporting corrosive, flammable, explosive, and high-purity liquids, ensuring operational safety.
Highly efficient and lightweight, easy to operate
The entire unit is lightweight and highly maneuverable, capable of quickly emptying a 200-liter standard drum in 2-3 minutes. Equipped with quick-connect interfaces and a modular structure, assembly and disassembly can be completed without tools, significantly improving maintenance and operational efficiency.
Compatibility design
Standard interface design compatible with various hoses and connectors; improved couplings require no alignment and can be quickly connected, suitable for a wide range of fluids from ordinary media to strong acids and alkalis.
Multiple Materials and Models Available
Offers a variety of pump tube materials, including polypropylene, PVDF, PTFE, stainless steel, and aluminum alloy, to meet the compatibility requirements of the chemical industry. Suitable for low, medium, and high viscosity liquids, it can be widely used in over 80% of industrial applications.
Supports multiple power drive options
Available with electric (with speed control and overload protection) or pneumatic drive options, adapting to different on-site power conditions and providing more flexible equipment configuration solutions.
Reliability and ease of maintenance
Each pump undergoes rigorous factory testing and supports short-term dry running without damage. The modular structure makes maintenance and disassembly more convenient, with disassembly and reassembly completed within 10 minutes, while providing a wide range of accessories to meet diverse needs.
Application
Drum Chemical Pump is primarily used in the following industries and scenarios:
- Chemical and Pharmaceutical Industry: Used for the safe and precise transfer of various corrosive chemicals, solvents, acidic and alkaline liquids, and raw drug solutions, meeting process requirements for leak prevention, pollution prevention, and high compatibility.
- Electroplating and Surface Treatment Industry: Suitable for the transportation of electroplating solutions, acidic/alkaline cleaning solutions, polishing solutions, and other media, capable of withstanding harsh chemical environments to achieve tank solution addition and circulation.

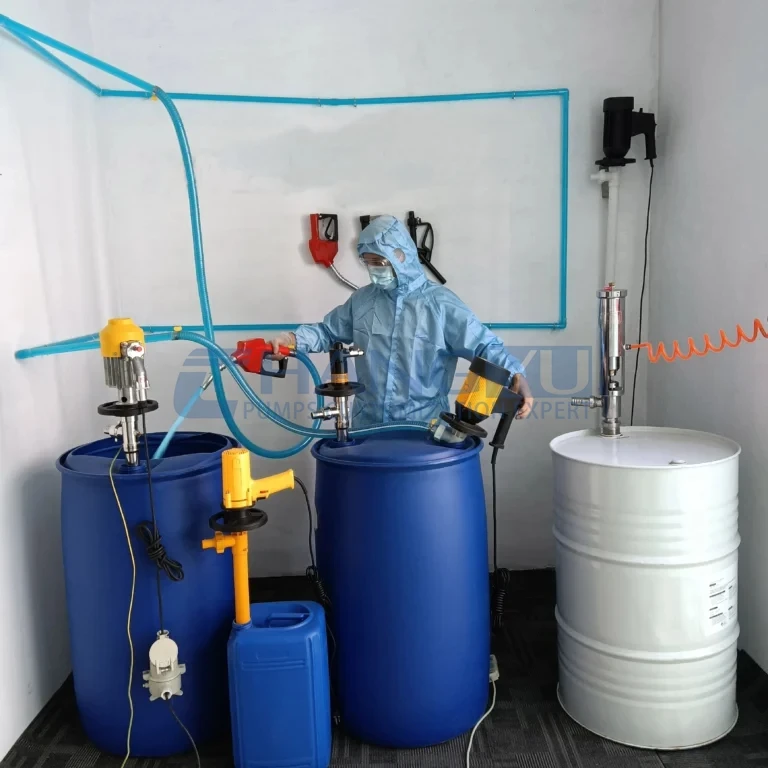

- Laboratory and Research Fields: Used in research institutes, testing institutions, and university laboratories for the small-batch, high-precision dispensing, transfer, and collection of waste liquids of chemical reagents.
- Environmental Protection and Wastewater Treatment: Widely applied in industrial wastewater collection, wastewater treatment facilities, and hazardous waste liquid transportation processes, with the capability to handle waste liquids containing corrosive components and organic solvents.
Customize Chemical Drum Pump
Changyu Pumps is a manufacturer and supplier of chemical drum pumps.We support configuring suitable chemical drum pump solutions for different containers. Whether it’s standard tanks, industrial drums, IBC containers, or various non-standard special containers, immersion depth directly affects pumping performance and operational safety. Common immersion requirements include 500 mm, 700 mm, 1000 mm, and 1200 mm, with multiple standard pump tubes available for selection, offering strong adaptability and ready availability.
For special depth or non-standard container scenarios, such as deep-bottom storage tanks, custom tank bodies, or pump pool structures, Changyu can provide customized pump tube solutions with lengths ranging from 300mm to over 3 meters, precisely matching your actual operating conditions and equipment requirements. For further information on standard selections or customized solutions, please feel free to contact our technical team to obtain tailored pumping solutions and product details.
Email: jade@changyupump.com
Phone: +86-13651913727
FAQs

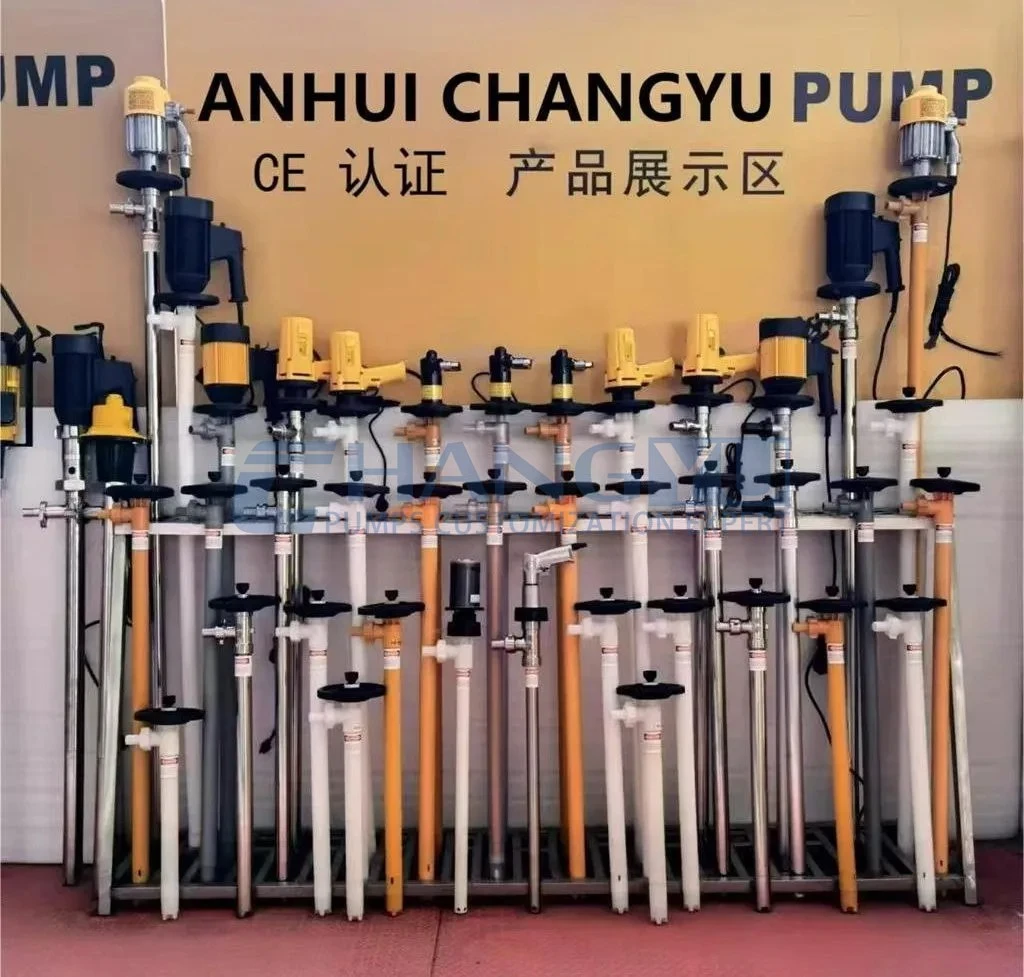

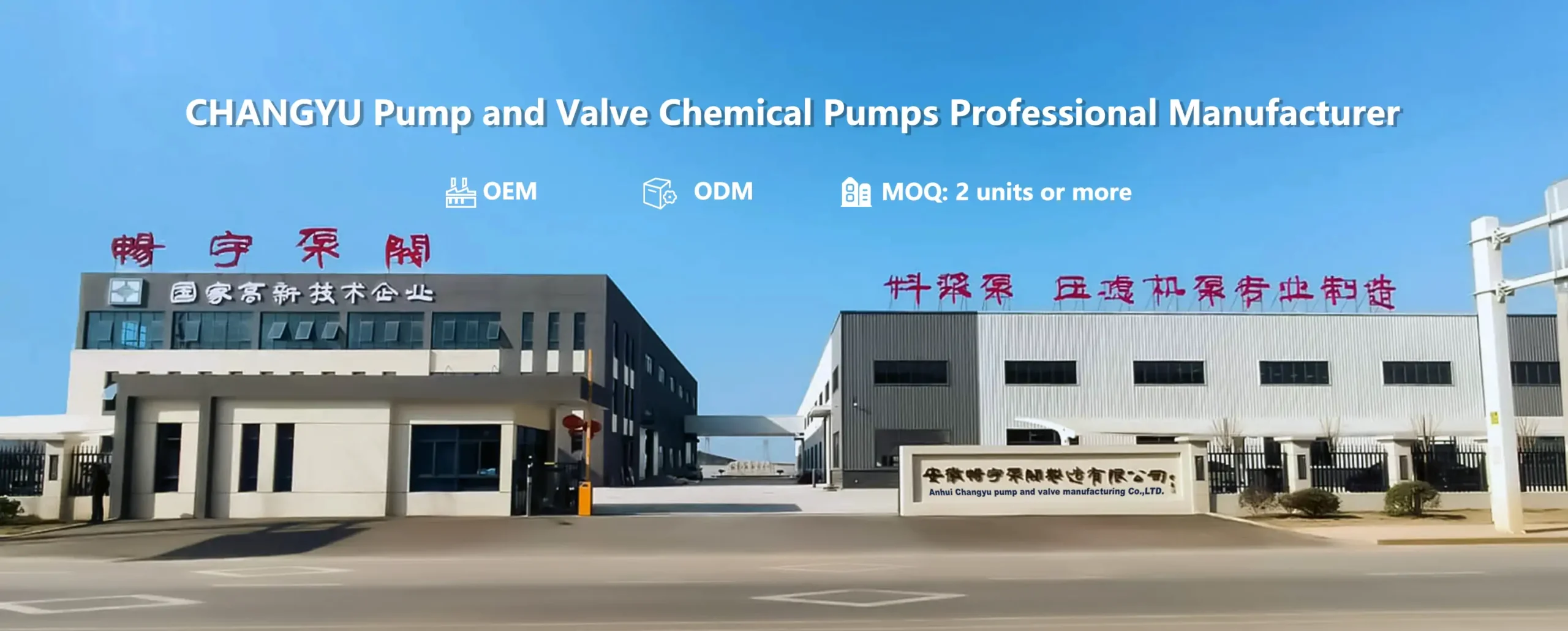

Factory Show
Request a free quote
Please fill in the details of your pumped liquid, including flow, head, specific gravity, and temperature, so we can recommend the best pump and provide a precise quote.
