What is The Difference Between Magnetic Drive Pump And Centrifugal Pump

Both magnetic drive pumps and centrifugal pumps belong to the category of centrifugal pumps, widely used in industrial fluid transfer applications. They both utilize centrifugal force to increase fluid kinetic energy and pressure, yet they exhibit numerous differences. This article provides an in-depth analysis of the differences between magnetic drive pumps and centrifugal pumps. We’ll comprehensively compare their working principles, structure, application areas, advantages, and disadvantages. This will help you clearly understand how to make the most informed choice based on your medium characteristics, safety requirements, and budget. Please continue reading to find the pumping solution best suited to your project needs.

Working Principle

Magnetic Drive Pump: Magnetic drive pumps utilize magnetic coupling principles to transmit power. When the motor operates, it drives the outer magnetic rotor to rotate at high speed. Through the magnetic field interaction, the inner magnetic rotor within the isolation sleeve rotates synchronously, thereby driving the impeller to perform centrifugal motion. Its enclosed transmission structure fundamentally eliminates leakage risks. Although magnetic drive pumps employ a different transmission method, they still belong to the category of centrifugal pumps, all relying on the centrifugal force generated by impeller rotation to convey fluids.

Centrifugal Pump: As the most prevalent fluid transfer equipment, centrifugal pumps operate based on the centrifugal effect generated by impeller rotation. When the motor drives the pump shaft to rotate the impeller at high speed, the fluid is flung from the impeller’s center toward its periphery under centrifugal force. During this process, the fluid’s kinetic and pressure energy continuously increase, ultimately forming a stable flow stream discharged through the outlet. This highly efficient energy conversion method makes it the most widely used pump type in industrial applications.

Structure

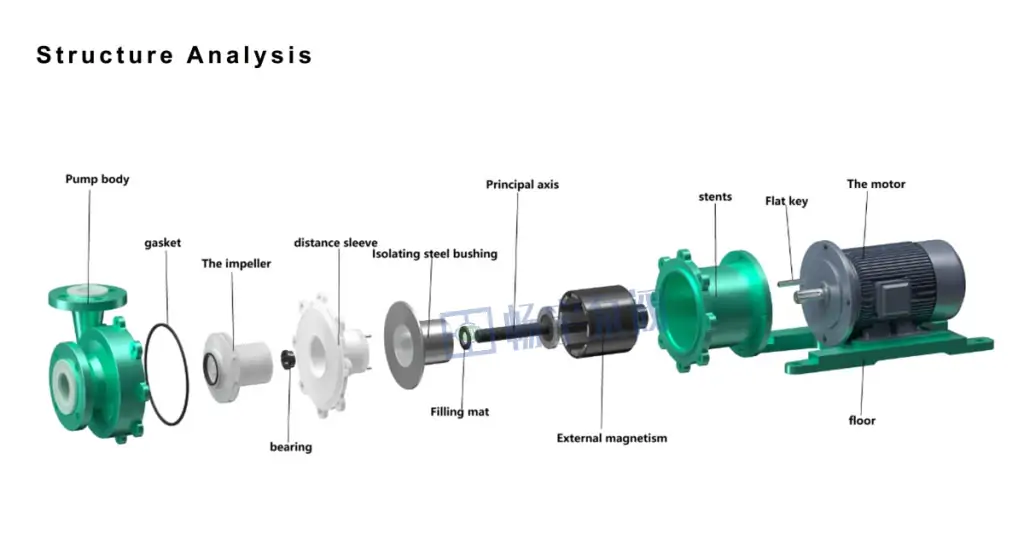

Magnetic drive pump: Magnetic pump mainly consists of two parts: the driving part (including the motor and the external magnet) and the transmission part (including the internal magnet and the impeller). The power transmission is achieved through magnetic coupling between the two parts, without the need for a traditional shaft seal structure, good sealing and leak-free.

Centrifugal pump: Centrifugal pumps are usually composed of impellers, pump bodies, pump shafts, bearings, sealing rings and other parts. Among them, as an important component to block fluid leakage, the seal may fail due to wear or media corrosion during long-term operation, causing leakage problems.

Applications

Magnetic Drive Pumps: Featuring a shaftless design that eliminates leakage risks, magnetic drive pumps offer excellent corrosion resistance. They are particularly suitable for conveying flammable, explosive, toxic, or highly corrosive media. These pumps are widely used in high-risk and high-purity processes such as petroleum refining, fine chemicals, biopharmaceuticals, surface treatment, and environmental engineering.

Centrifugal Pumps: Centrifugal pumps feature robust mechanical construction, stable operational performance, and excellent adaptability to varying conditions, making them one of the most widely used fluid transfer devices. They are extensively applied in industrial processes, agricultural irrigation, municipal water supply and drainage, building fire protection, and HVAC systems.

If you’re unsure how to calculate or select the right model, contact us now. Our professional team will guide you through the selection process and resolve any issues you may be facing.

Email: jade@changyupump.com

Phone: +86-13651913727

FAQs

Q 1: What is the main difference between a magnetic drive pump and a centrifugal pump?

A1: The main difference lies in how power is transmitted and how leakage is controlled.
A magnetic drive pump transfers torque through a magnetic coupling and does not use a shaft seal, which reduces the risk of leakage. A conventional centrifugal pump uses mechanical seals to isolate the fluid, and seal performance largely determines long-term reliability. Both types rely on centrifugal force to move fluids, but their structural designs and risk profiles are different.

Q2: In which situations do engineers typically consider magnetic drive pumps?

A2: Magnetic drive pumps are usually considered when fluid leakage cannot be tolerated.
They are commonly applied in processes involving corrosive, toxic, or hazardous liquids, where even minor leakage may cause safety or environmental issues. In these cases, the seal-less structure is viewed as a risk-control measure rather than a performance advantage.

Q3: Are magnetic drive pumps always more reliable than centrifugal pumps?

A3: Each type has its own advantages, determined more by operating conditions than by pump type alone. While magnetically driven pumps reduce the risk of seal-related failures, they remain susceptible to factors such as dry running, temperature, fluid cleanliness, and cost. Centrifugal pumps are more economical and, when properly selected and maintained, can achieve highly reliable operation in numerous industrial applications. Both pump types offer advantages and require specific conditions for reliable operation.

Q4: How do maintenance requirements differ between magnetic drive pumps and centrifugal pumps?

A4: From a maintenance standpoint, the difference mainly relates to sealing components.
Magnetic drive pumps avoid routine seal replacement, which simplifies maintenance in corrosive environments. However, internal components such as bearings and isolation sleeves still require monitoring. Centrifugal pumps may require periodic seal maintenance, but their structure is familiar to most maintenance teams, and spare parts are widely available.

Q5: Are magnetic drive pumps suitable for all types of fluid transfer?

In practice, magnetic drive pumps are selected for specific operating conditions rather than general-purpose use.
They are well-suited for hazardous or corrosive fluids, while conventional centrifugal pumps are often used for water, low-risk chemicals, and large-flow systems. Pump selection should be based on fluid properties, operating parameters, and system design rather than pump type alone.

If you’re unsure about which option to choose, feel free to contact us. Our professional team will provide you with more suitable recommendations.

Q6: What factors should procurement teams consider when choosing between these two pump types?

A6: From our project experience, procurement decisions are usually based on overall operating risk and lifecycle considerations.
Magnetic drive pumps may reduce leakage-related risks in certain processes, while centrifugal pumps typically offer lower initial costs and broader application flexibility. A balanced evaluation should consider safety requirements, maintenance capability, operating conditions, and total cost of ownership.
