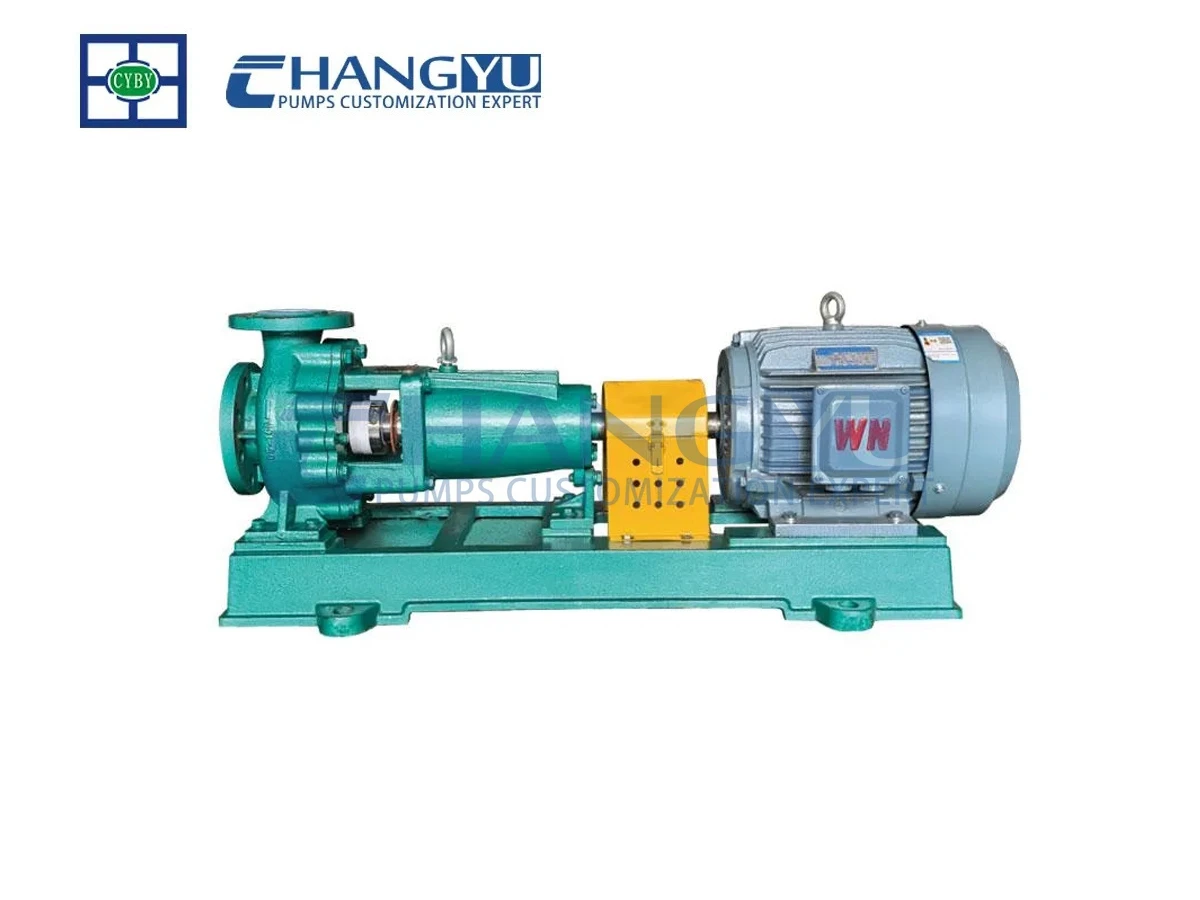

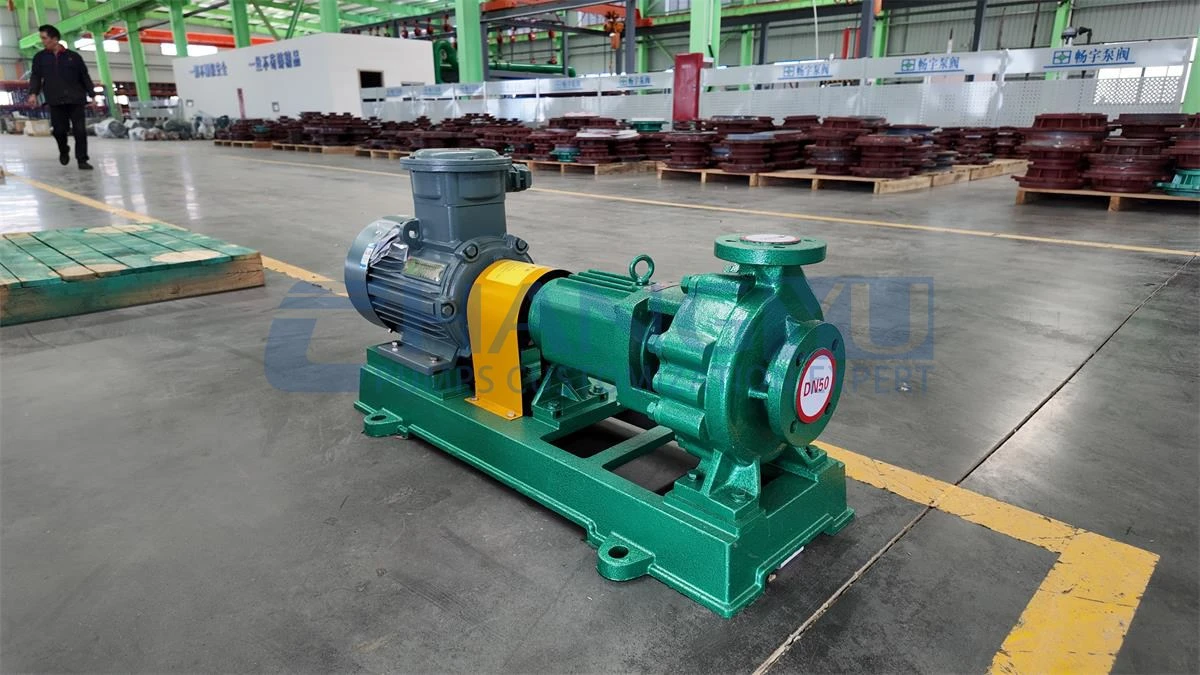

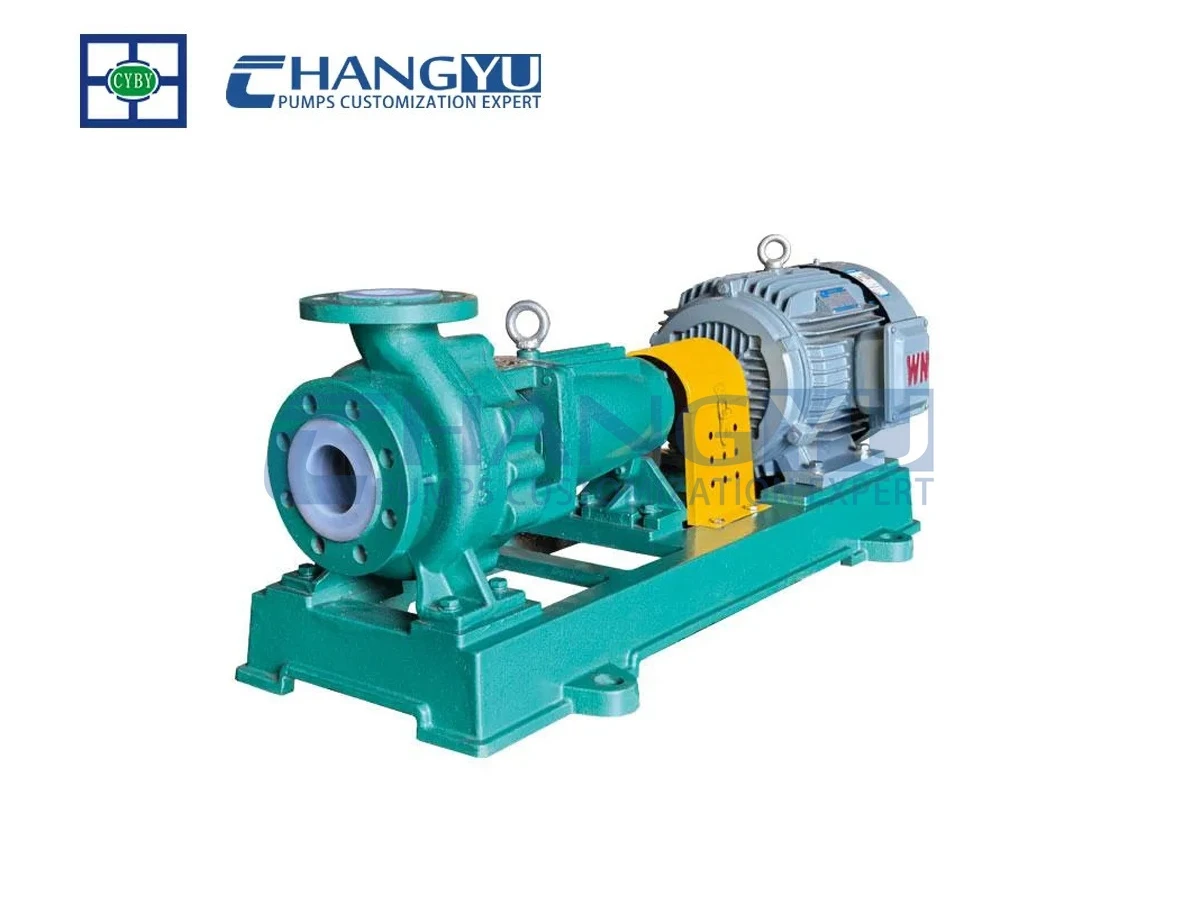

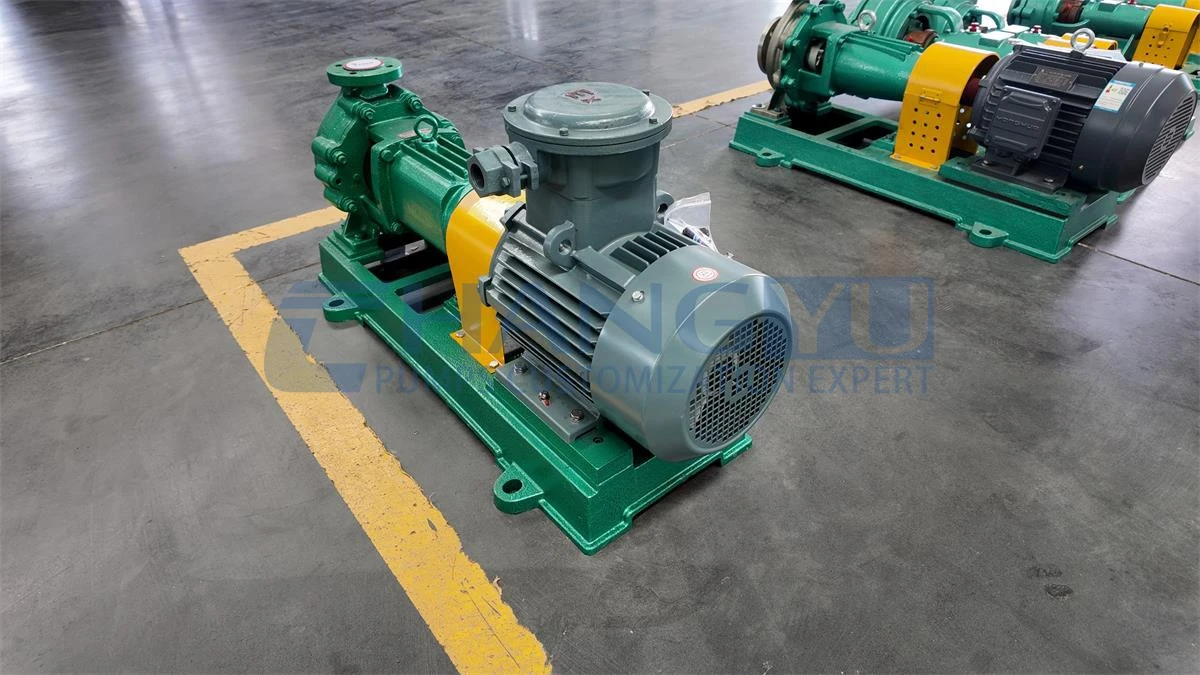

CYF Series Fluoroplastic Centrifugal Pump
Corrosion-Resistant Chemical Pump for Acids, Alkalis & Aggressive Liquids
CYF Series Fluoroplastic Centrifugal Pump is a single-stage single-suction chemical pump designed according to international standards and advanced non-metallic pump technology. Engineered with FEP, PFA, and PTFE fluoroplastic lining, it delivers outstanding corrosion resistance, stable operation, and long service life in highly aggressive industrial environments.
Suitable for transporting sulfuric acid, hydrochloric acid, nitric acid, hydrofluoric acid, alkalis, oxidizing agents, solvents, and corrosive wastewater.
|
Flow Rate Range : |
1.6 m³/h-2600 m³/h |
|---|---|
|
Head Range: |
5 m-130 m |
|
Motor Power : |
1.5 kw-110 kw |
|
Speed: |
1450-2900 r/min |
|
Medium Temperature Range: |
-20°C~180°C |
|
Customizable Materials: |
Steel lined with FEP, PFA, or PTEF |
What Is a Fluoroplastic Centrifugal Pump?
A fluoroplastic centrifugal pump is a corrosion-resistant chemical pump designed for transporting aggressive liquids that conventional metal pumps cannot safely handle. The CYF Series adopts a metal casing lined with high-performance fluoroplastics such as FEP, PFA, and PTFE to provide long-term resistance against highly corrosive chemicals.
Fluoroplastic centrifugal pump impeller, pump body and other flow-through parts all adopt perfluorinated or fluorine-lined corrosion-isolating medium structures. The pump cover, impeller and shaft sleeve are all made of metal inserts wrapped with fluoroplastics and sintered and pressed as a whole. The flow-through pump shaft and sliding bearings adopt corrosion-resistant industrial ceramic structure, which has the characteristics of compact and reasonable structure, strong corrosion resistance, and strict and reliable sealing performance.
The pump is widely used in industries requiring reliable transfer of acids, alkalis, solvents, and chemical wastewater.
CYF Fluoroplastic Centrifugal Pump Structure
Detailed specifications are listed below. For custom configurations or specific requirements, please contact our technical team.
Part of Fluoroplastic Centrifugal Pump
The CYF Series Fluoroplastic Centrifugal Pump adopts a heavy-duty corrosion-resistant structural design specifically engineered for aggressive chemical transfer applications. Each core component is optimized for chemical compatibility, sealing reliability, mechanical strength, and long-term operational stability.
The pump casing adopts a metal shell with fluoroplastic lining for enhanced mechanical strength and corrosion resistance. The impeller and pump cover are molded with fluoroplastics and reinforced with metal inserts.
The shaft seal uses an external bellows mechanical seal design:
- Stationary Ring: 99.9% alumina ceramic or silicon carbide
- Rotary Ring: PTFE-filled material or silicon carbide
This structure provides:
- Excellent chemical resistance
- Reliable sealing performance
- Stable operation
- Reduced leakage risks
- Extended service life
Working Principle
The fluoroplastic lined centrifugal pump operates through centrifugal force generated by the rotating impeller.
When the motor drives the impeller at high speed, liquid enters through the suction inlet and is accelerated outward by centrifugal force. The kinetic energy is converted into pressure energy inside the pump casing, allowing the liquid to be continuously delivered through the discharge pipeline.
The fluoroplastic-lined flow passage protects the pump from corrosion while maintaining efficient and stable liquid transportation.
This design enables the pump to safely handle:
- Strong acids
- Strong alkalis
- Corrosive chemical liquids
- High-temperature chemical media
- Industrial wastewater
Need a Reliable Fluoroplastic Centrifugal Pump Solution?
Contact Changyu today for technical support, pump selection assistance, and customized quotations for your chemical transfer applications.
Email: [email protected]
Phone: +86-13651913727
Technical Specifications of CYF Fluoroplastic Centrifugal Pump
| Model Series | CYF Fluoroplastic Centrifugal Pump |
|---|---|
| Pump Type | Single-stage Single-suction Centrifugal Pump |
| Flow Range | 1.6 m³/h – 2600 m³/h |
| Head Range | 5 m – 130 m |
| Motor Power | 1.5 kW – 110 kW |
| Speed | 1450 – 2900 r/min |
| Temperature Range | -20°C to 180°C |
| Lining Materials | FEP / PFA / PTFE |
| Casing Structure | Metal Shell with Fluoroplastic Lining |
| Impeller Type | Closed / Semi-open |
| Seal Type | External Bellows Mechanical Seal |
| Stationary Ring Material | Alumina Ceramic / Silicon Carbide |
| Rotary Ring Material | PTFE Filled Material / Silicon Carbide |
| Shaft Material | High-strength Alloy Steel |
| Applicable Media | Acids, Alkalis, Solvents, Corrosive Liquids |
| Applications | Chemical, Electroplating, Pharmaceutical, Metallurgy, Wastewater Treatment |
| Installation Type | Horizontal |
| Customization | Material & Seal Customization Available |
Notes
Below are further models of our pumps. If you are unsure how to select this Fluoroplastic Centrifugal Pump, please contact our team now; our technical specialists are on hand to provide you with a solution. Should you have further requirements, our factory also offers custom manufacturing services.
Email: [email protected]
Phone: +86-13651913727
2: Performance curve
Advantages of the Fluoroplastic Centrifugal Pump
Corrosion resistance
The metal housing is lined with FEP, and the metal inserts in the pump cover, impeller, and shaft sleeve are coated with fluoroplastic. The dynamic seal ring is filled with PTFE, providing resistance to various types of corrosion.
High-temperature resistant
The materials and structural design used can withstand high temperatures, meeting the demands of special working environments.
Easy to disassemble and inspect
The design facilitates maintenance, with components that are easy to disassemble and inspect, saving maintenance time and improving efficiency.
Stable performance
Advanced structural design and high-quality materials ensure smooth pump operation and continuous power supply.
Wear-resistant
The stationary ring of the shaft seal is made of 99.9% alumina ceramic or silicon carbide, while the moving ring is filled with PTFE. These materials offer high hardness and low friction coefficients, reducing wear and extending service life.
Long service life:
The use of corrosion-resistant and wear-resistant materials, reasonable structural design, and stable performance extend the pump’s service life and reduce replacement costs.
Application Industries
The CYF Series Fluoroplastic Centrifugal Pump can continuously handle a wide range of highly corrosive and chemically aggressive media, including sulfuric acid, hydrochloric acid, hydrofluoric acid, nitric acid, aqua regia, strong alkalis, oxidizing agents, organic solvents, reducing agents, and corrosive wastewater. Its fluoroplastic-lined flow passages ensure stable operation and reliable corrosion resistance in harsh industrial environments.
Electroplating Industry
Suitable for acid circulation systems, plating chemical transfer, and corrosive wastewater handling.
Chemical Industry
Used for transferring acids, alkalis, solvents, and corrosive chemical solutions in chemical production plants.
Power & Environment
Handles aggressive chemical media in desulfurization, refining, and chemical treatment systems.
Metallurgy & Pickling
Applicable for acid pickling lines and corrosive process liquid circulation.
Field Applications:
Fluoroplastic Centrifugal Pump Supplier In China
Changyu Pump specializes in the design and manufacture of CYF Series Fluoroplastic Centrifugal Pumps, providing high-performance solutions for highly corrosive, high-temperature, and chemically aggressive fluid-transfer applications.
With advanced CNC machining capabilities, precision fluoroplastic lining technology, and strict ISO-based quality control systems, we ensure every pump delivers stable hydraulic performance, excellent corrosion resistance, and reliable long-term operation under demanding industrial conditions.
The CYF series is engineered with a metal shell fully lined with FEP, PFA, or PTFE, combined with corrosion-resistant ceramic and silicon carbide sealing systems, making it suitable for chemical, electroplating, pharmaceutical, metallurgy, power generation, and wastewater treatment industries where conventional metal pumps fail due to corrosion or chemical attack.
Looking for a high-performance Fluoroplastic Centrifugal Pump supplier in China?
Changyu provides reliable corrosion-resistant pump solutions for global industrial applications. Contact our engineering team today for product selection, technical consultation, and customized quotations.
Email: [email protected]
Phone: +86-13651913727
