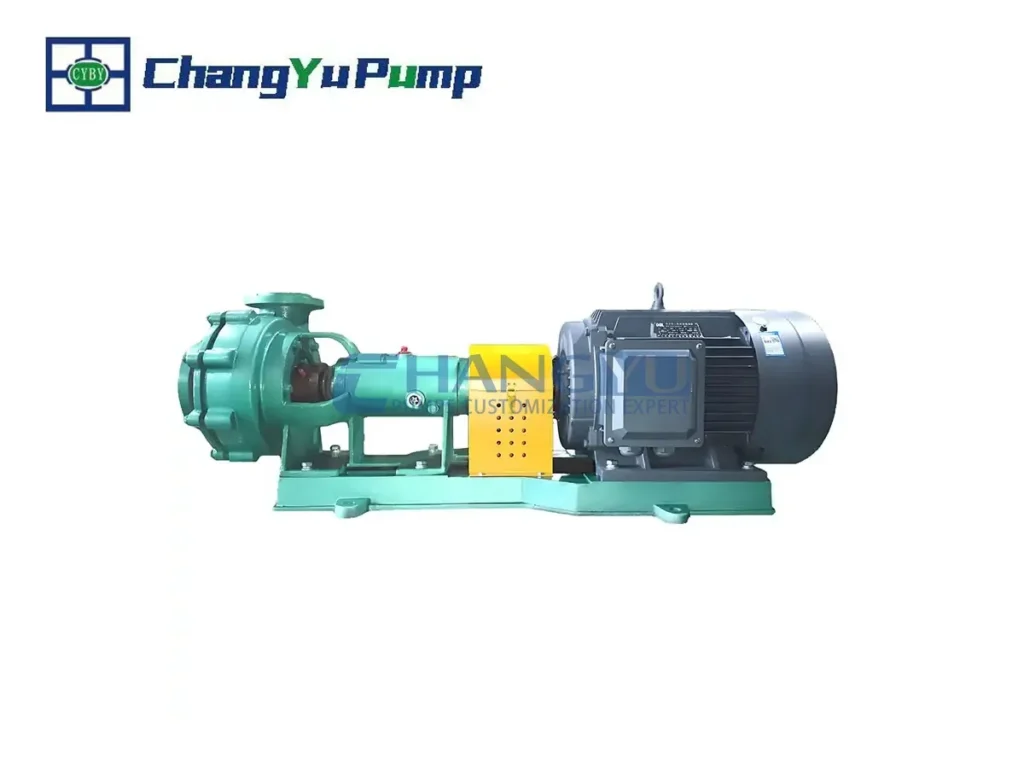

UHB Series UHMWPE Corrosion Resistant Pump

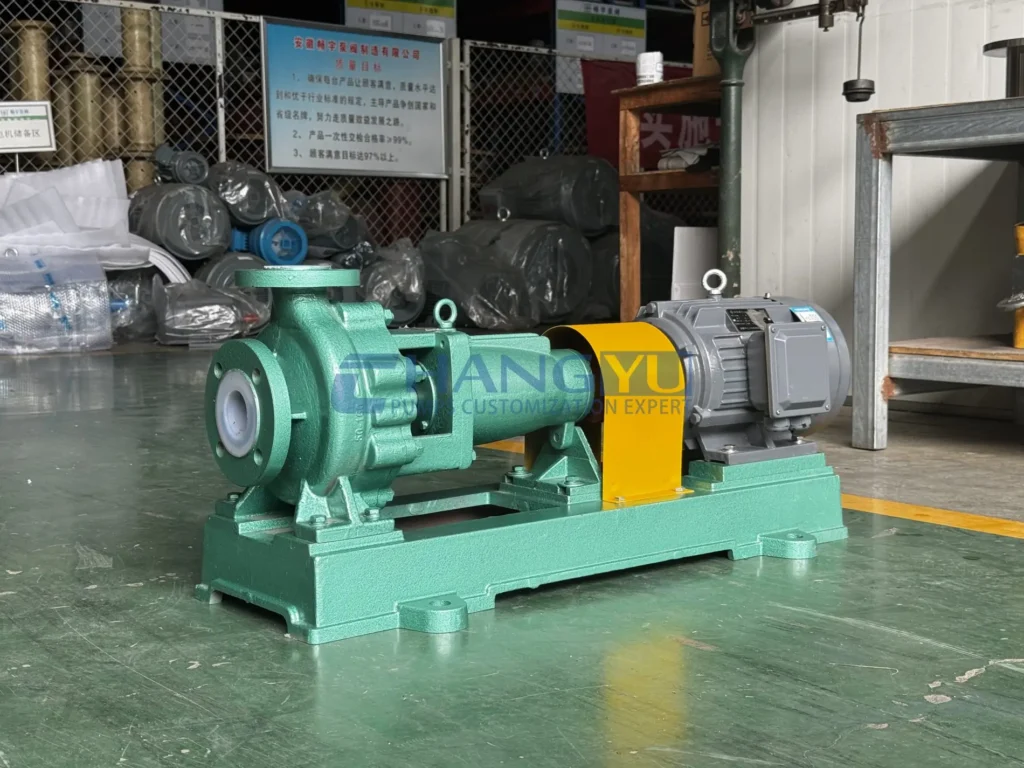

The UHB-type UHMWPE Corrosion Resistant Pump is a cantilevered single-stage, single-suction centrifugal pump. The pump body is constructed using steel-lined ultra-high molecular weight polyethylene (UHMWPE) material, offering excellent corrosion resistance and wear resistance.
|
Flow Range : |
3~2600m³/h |
|
Head Range: |
5~100m |
|
Power : |
0.75~300Kw |
|
Temperature : |
-20-90℃ |
|
Material : |
FEP |
Introduction

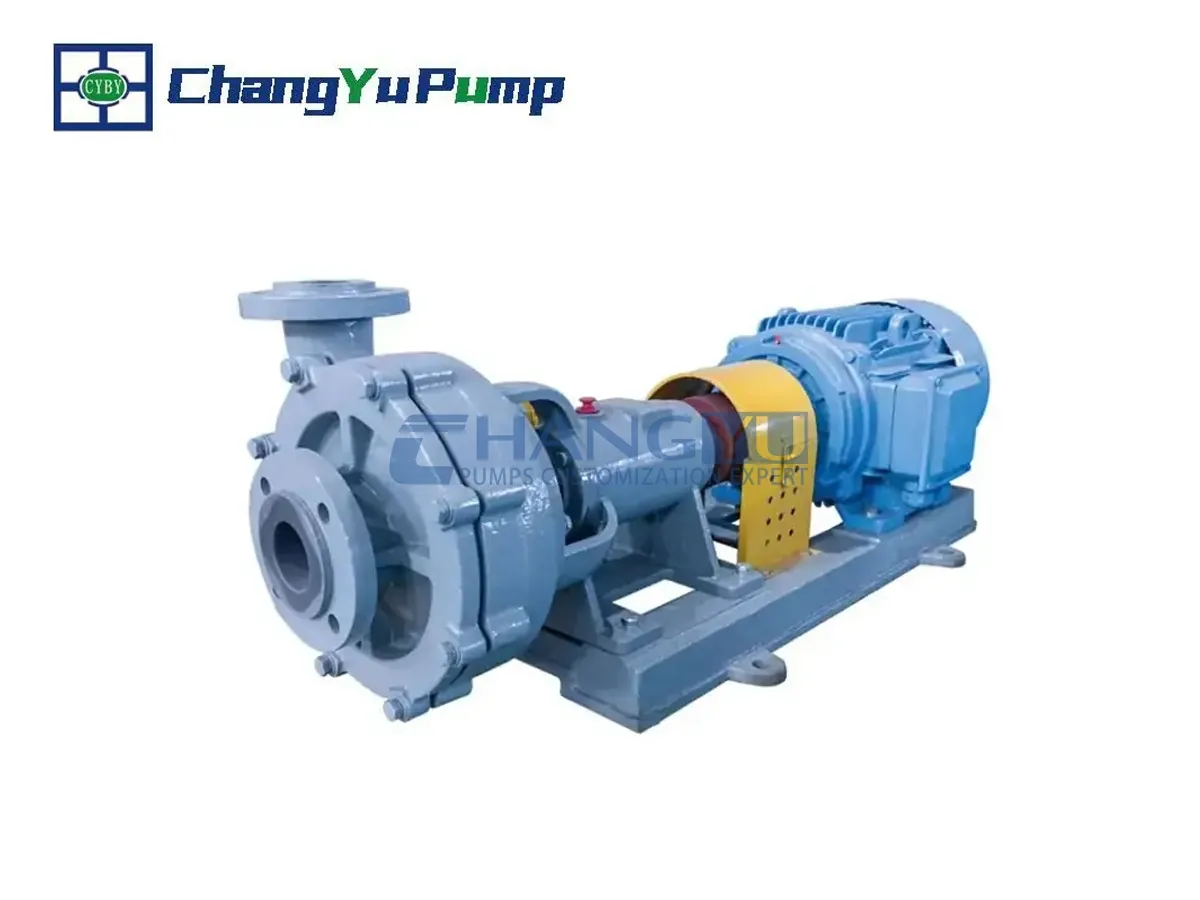

The Corrosion Resistant Centrifugal Pump demonstrates outstanding resistance to various highly corrosive media such as acids, alkalis, and salts, and effectively prevents particle erosion and wear. It is suitable for high-corrosion and high-wear conveying environments in industries such as chemicals, metallurgy, and mining, and can achieve long-term, efficient, and stable operation under harsh conditions.
Parts
The UHB Corrosion Resistant Pump consists of a pump casing, impeller, pump cover, shaft seal, and bearing assembly.

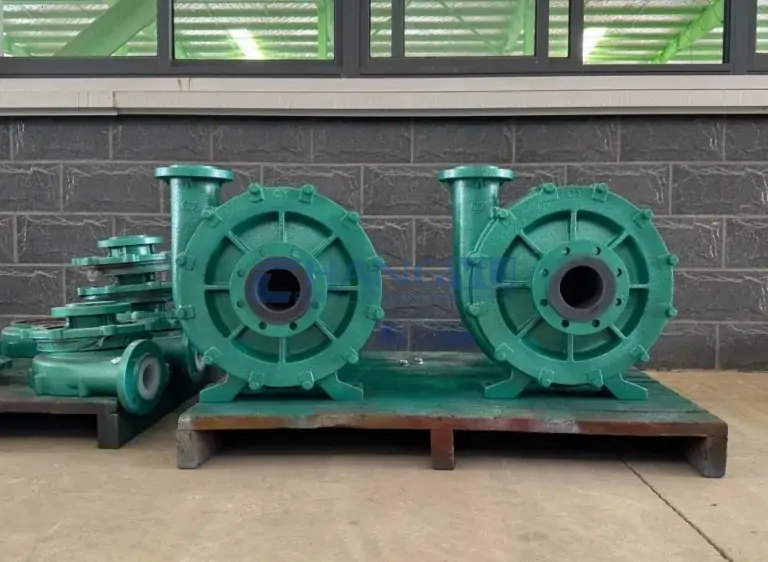

- Pump casing: Made of ultra-high molecular weight polyethylene (UHMWPE) or other corrosion-resistant materials, it offers excellent chemical stability and wear resistance.

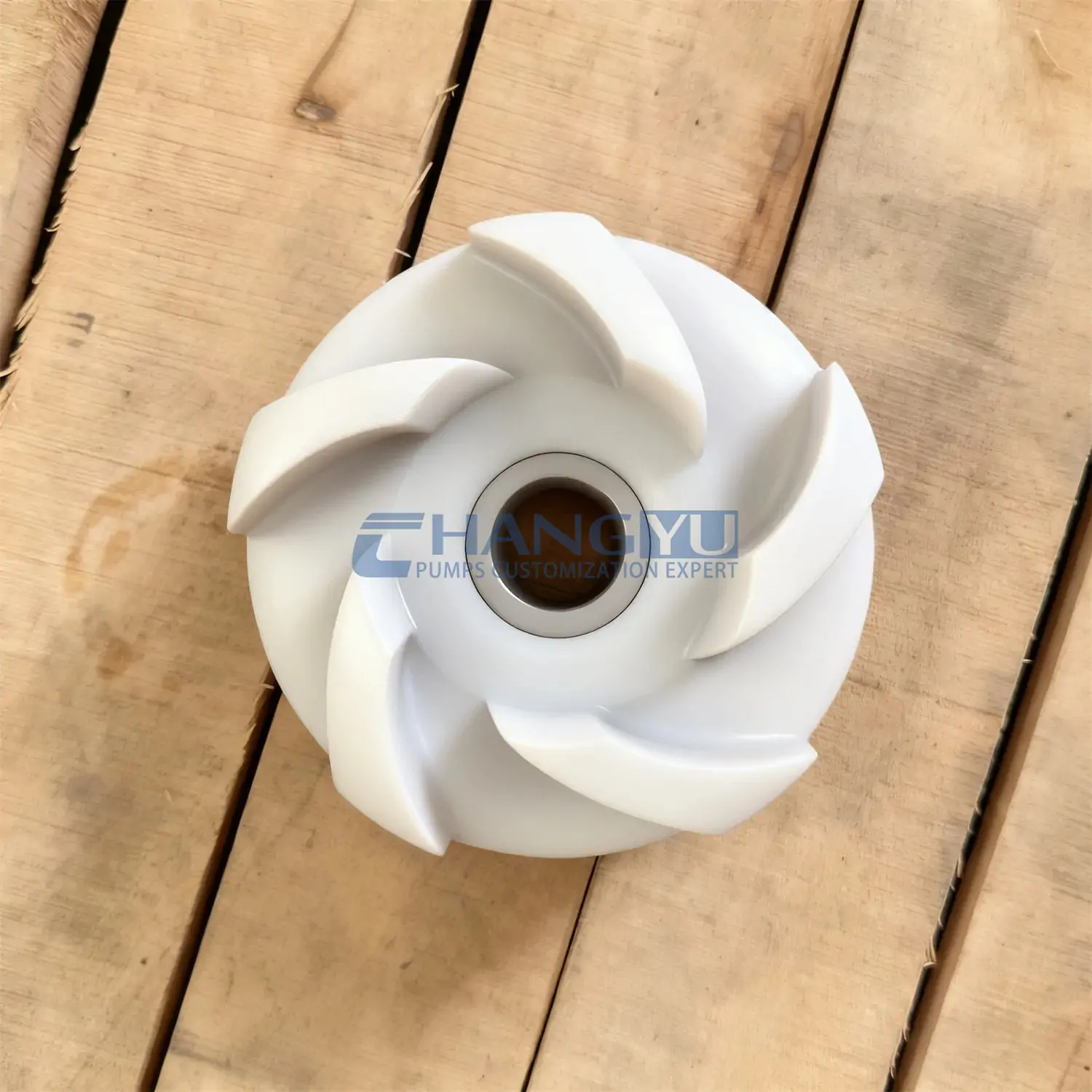

- Impeller: Designed with a high-strength and corrosion-resistant structure, it ensures efficient fluid conveyance while minimizing wear.
- Pump cover: Provides a secure seal to prevent internal components from being contaminated by external factors.

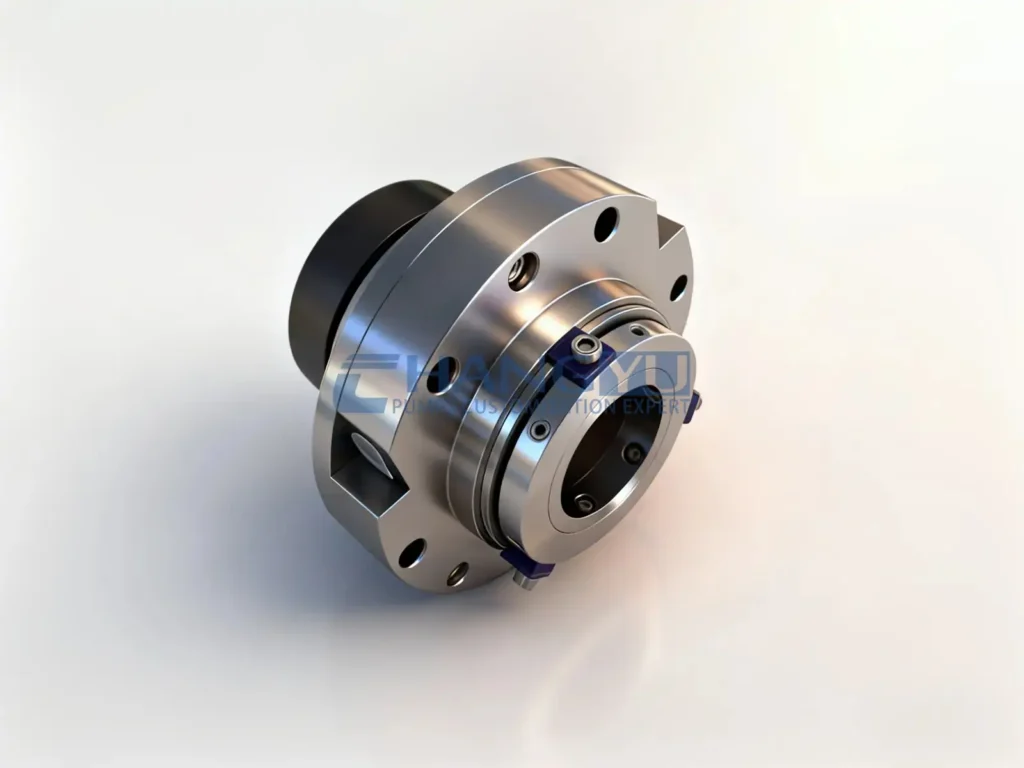

- Shaft seal: Prevents leakage during operation; mechanical seals or packing seals can be selected based on application requirements.
- Bearing assembly: Supports smooth and stable rotation, reduces vibration, and extends service life.

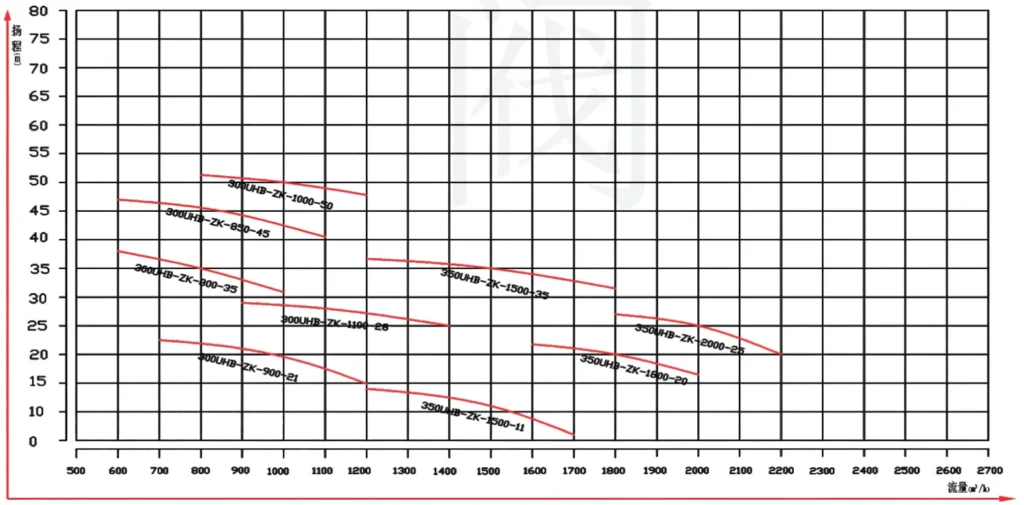

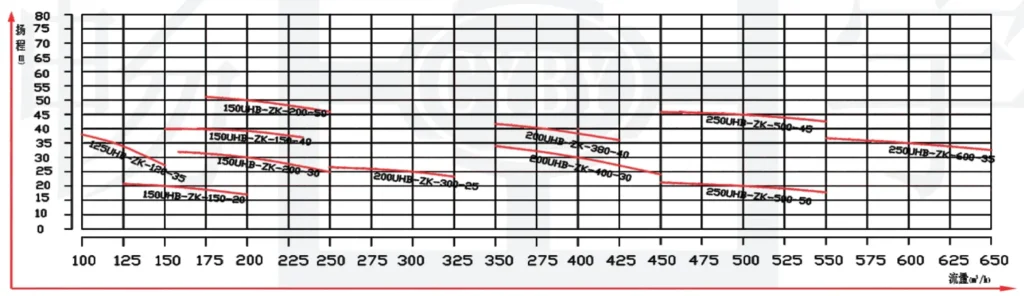

Specifications
| Model | Flow Range (m³/h) | Head Range (m) | Speed (r/min) | Efficiency Range (%) | Power Range | Impeller Diameter Range (mm) |
|---|---|---|---|---|---|---|
| 32UHB | 5 – 10 | 10 – 30 | 2900 | 17% – 28% | 1.1KW-2 – 3KW-2 | 100 – 165 |
| 40UHB | 10 – 15 | 10 – 30 | 2900 | 25% – 35% | 2.2KW-2 – 4KW-2 | 140 – 165 |
| 50UHB | 10 – 20 | 15 – 40 | 2900 | 20% – 35% | 4KW-2 – 7.5KW-2 | 140 – 190 |
| 65UHB | 25 – 30 | 20 – 60 | 2900 | 25% – 35% | 5.5KW-2 – 18.5KW-2 | 155 – 235 |
| 80UHB | 20 – 60 | 10 – 80 | 2900 | 22% – 50% | 5.5kw-4 – 30KW-2 | 145 – 260 |
| 100UHB | 50 – 110 | 10 – 80 | 2900 | 20% – 45% | 15KW-2 – 55KW-2 | 160 – 250 |
| 125UHB | 100 – 140 | 18 – 80 | 2900 | 34% – 48% | 22KW-2 – 75KW-2 | 180 – 268 |
| 150UHB | 150 – 280 | 20 – 50 | 1450 | 40% – 52% | 22KW-4 – 75KW-4 | 260 – 380 |
| 200UHB | 200 – 450 | 6 – 50 | 1450 / 980 | 25% – 58% | 22KW-6 – 90KW-4 | 325 – 380 |
| 250UHB | 300 – 650 | 6 – 60 | 1450 / 980 / 750 | 28% – 65% | 11KW-8 – 160KW-4 | 280 – 420 |
Features
- Outstanding corrosion and wear resistance: The pump body is lined with ultra-high molecular weight polyethylene (UHMWPE), capable of withstanding corrosion from acids, alkalis, solvents, and corrosive slurries. It exhibits exceptional wear resistance and can reliably transport solid-liquid mixtures with solid content as high as 30%.
- Suitable for media with high solid content and particles: It demonstrates excellent conveying capability for media such as slurry, waste acid, and sludge with high solid content, effectively preventing wear caused by particle erosion.
- Anti-clogging structure design: Featuring a semi-open impeller design, it offers superior anti-clogging performance, making it suitable for conveying high-viscosity or fiber-containing media.
- Suitable for various operating conditions: It can operate stably under various complex and harsh corrosive and abrasive conditions, making it suitable for industries such as chemicals, metallurgy, and mining.
- High efficiency and energy saving: The low-speed operation design reduces friction resistance, improves conveying efficiency, and has low long-term energy consumption, thereby reducing operating costs.
- Low maintenance and long service life: The durable materials and structure reduce maintenance frequency and replacement costs, ensuring stable and long-term operation of the equipment.
Videos Show
Application

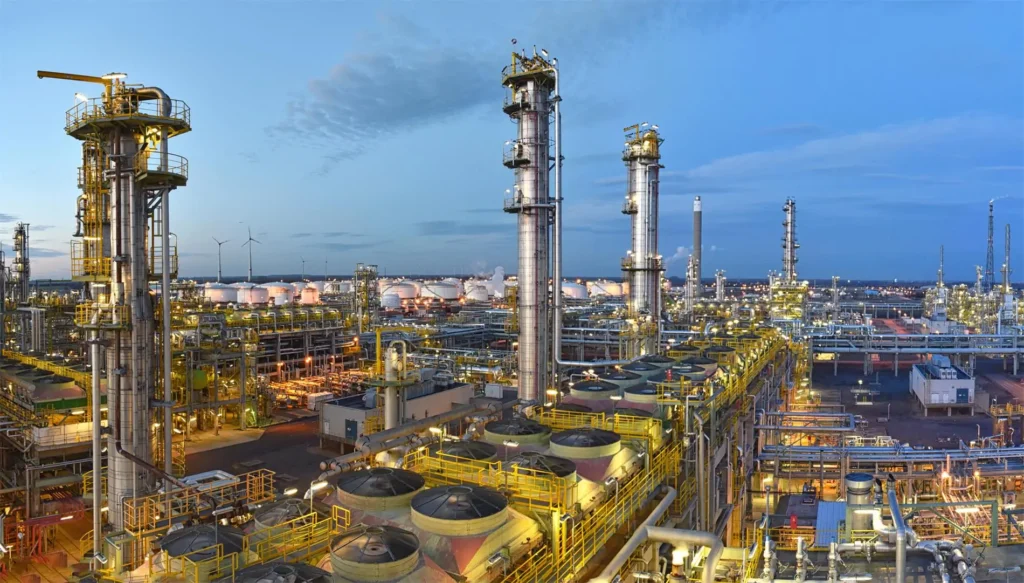

- Chemical and Fine Chemicals: Efficiently transports highly corrosive liquids such as sulfuric acid, hydrochloric acid, and hydrofluoric acid, as well as slurries containing solids, suitable for various process stages including acid leaching, crystallization, and precipitation.

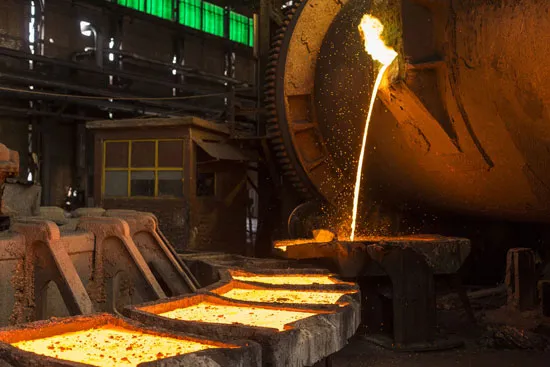

- Non-Ferrous Metal Smelting: Used in wet smelting processes for lead, zinc, and copper to ensure stable transportation of acid solutions, mineral slurries, electrolytes, and wastewater containing impurities.
- Phosphate Fertilizer and Fertilizer Production: Used for conveying dilute acids, phosphoric acid slurry, mother liquor, and corrosive media such as fluorosilicic acid.
- Water Treatment and Environmental Engineering: Used for treating and conveying wastewater from leather, electroplating, chemical, and municipal industries, suitable for desulfurization circulation and waste liquid recovery systems.
- Titanium dioxide and new materials manufacturing: Participates in acid hydrolysis, washing, and precipitation processes, meeting the demands of high-corrosion and high-wear material transportation.
- Steel and metal processing: Used in acid washing production lines to transport sulfuric acid, hydrochloric acid, and solid-containing waste liquids, with excellent corrosion resistance and wear resistance.
- Energy, pharmaceutical, and high-tech industries: Applied in the transportation of corrosive media in industries such as new energy, semiconductors, photovoltaics, and pharmaceuticals, meeting both cleanliness and corrosion resistance requirements.
China Corrosion Resistant Pump Supplier
ChangYu is a professional China-based corrosion resistant pump supplier and manufacturer, specializing in a wide range of acid and alkali pumps designed to meet diverse operating conditions. With strong manufacturing capabilities, advanced production facilities, and a highly skilled service team, we deliver reliable solutions for chemical, industrial, and environmental applications. Whether you require standard models or customized designs, ChangYu ensures exceptional quality, durability, and performance. Contact us today to discuss your specific requirements and request a tailored quotation.
We can according to actual working condition, choose different configuration, provide an accurate solution. Technical consulting, please contact us!
