CYL Type Vertical Inline Centrifugal Pump
The CYL Type Vertical Inline Centrifugal Pump is a vertical single-stage single-suction centrifugal pump designed for efficient fluid transportation. It is specifically engineered for conveying clean water and liquids with physical and chemical properties similar to clean water. Featuring a vertical upright structure, this pump offers compact design, minimal floor space requirements, and smooth operation. It is widely applicable in various scenarios such as industrial water supply, urban drainage, high-rise building pressure boosting, landscape irrigation, and fire protection system pressure boosting.
|
Flow Range : |
4.5-1660m/h |
|
Head Range: |
5.2-150m |
|
Temperature: |
-10°C-85°C |

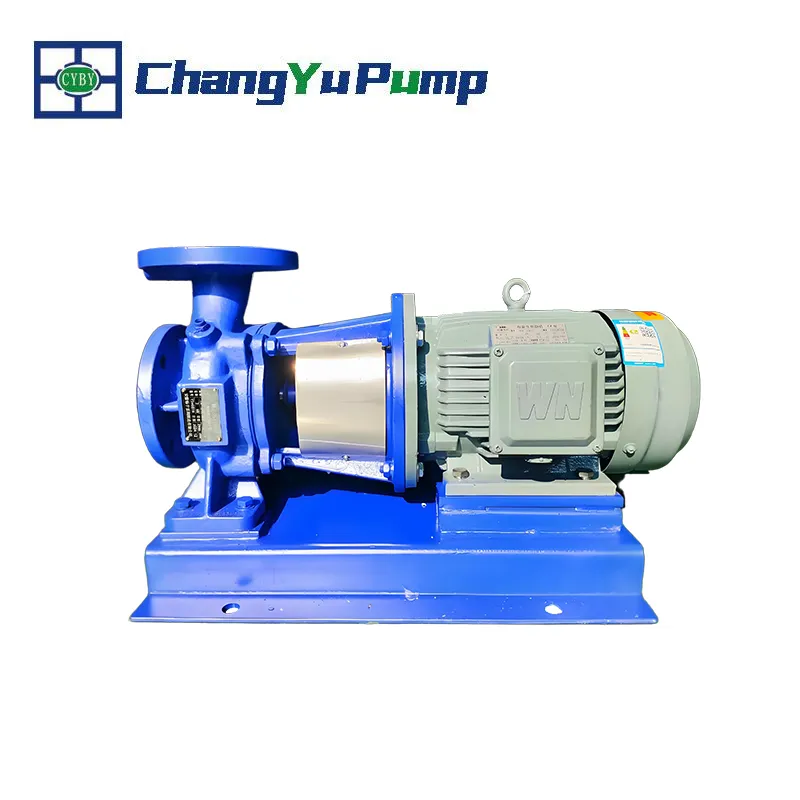

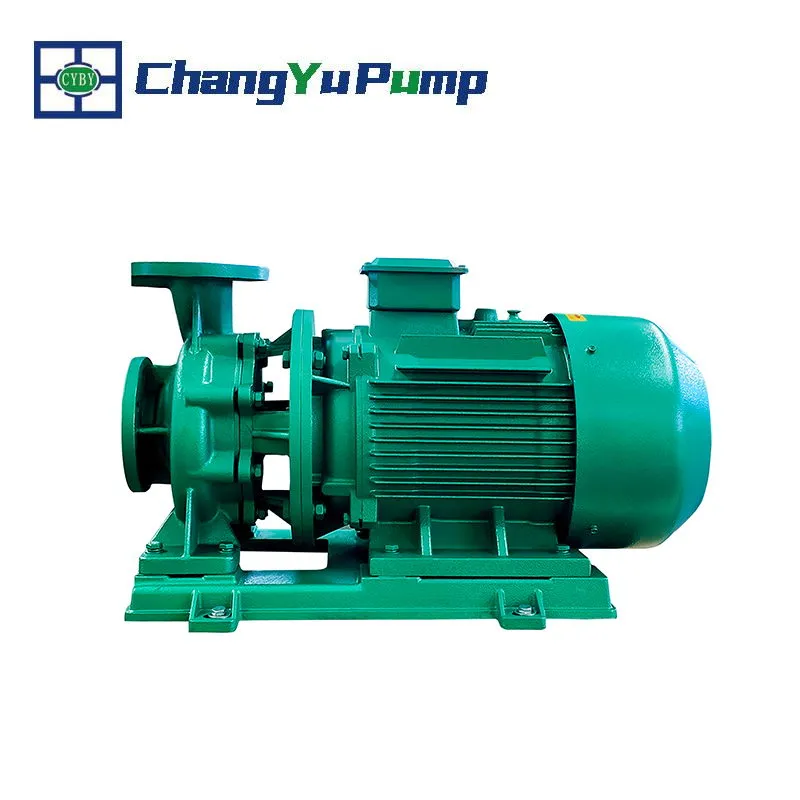

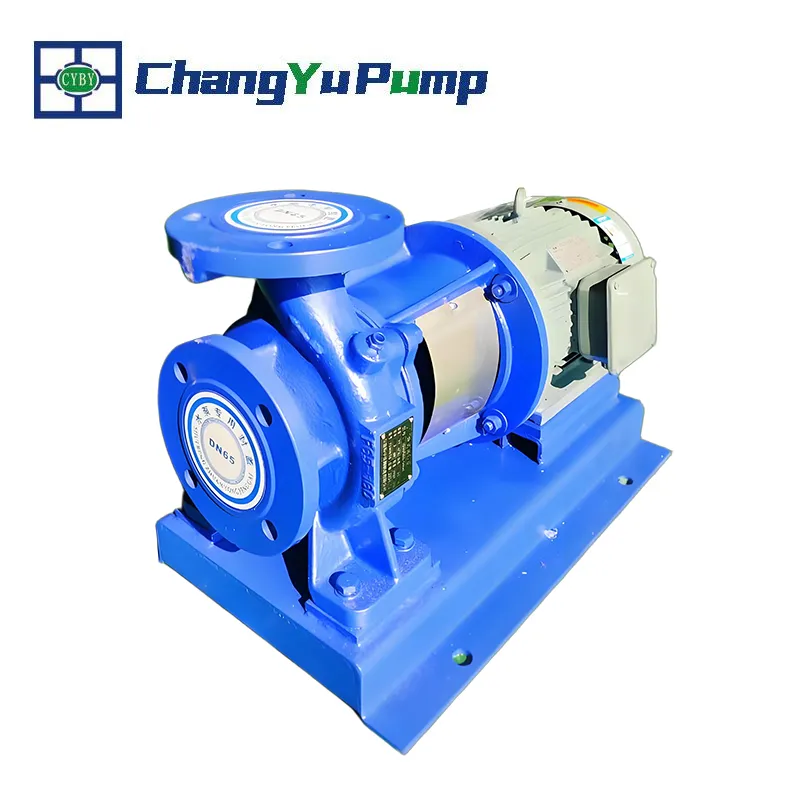

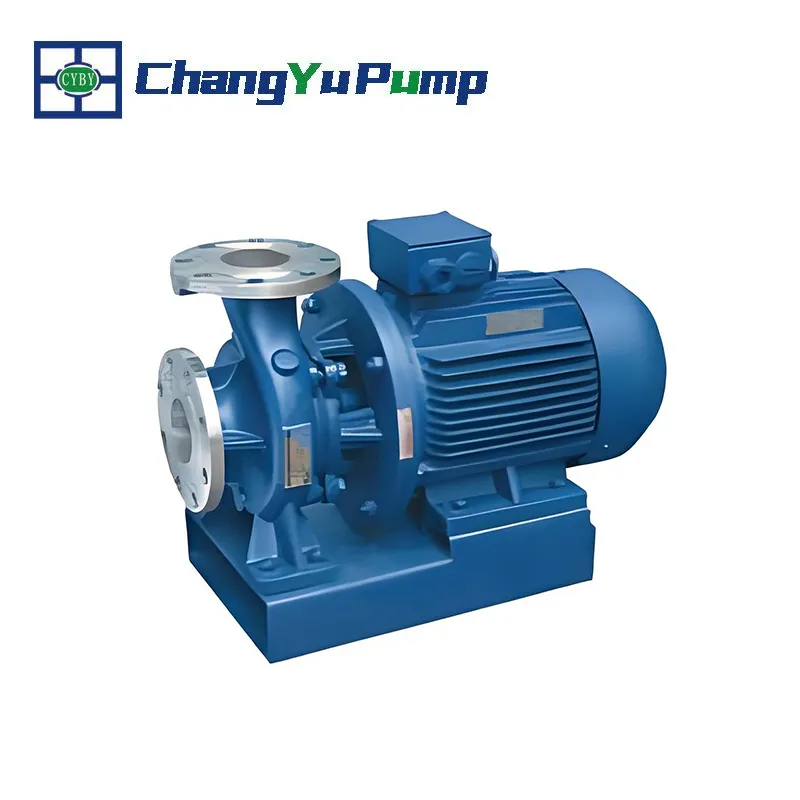

Introduction
The CYW horizontal centrifugal pump is primarily used for conveying clean water and other liquids with physical and chemical properties similar to clean water. It is widely applied in various scenarios such as industrial water supply, urban drainage, building circulation water systems, fire protection water supply, air conditioning systems, and agricultural irrigation.
Horizontal Centrifugal Water Pump Parts

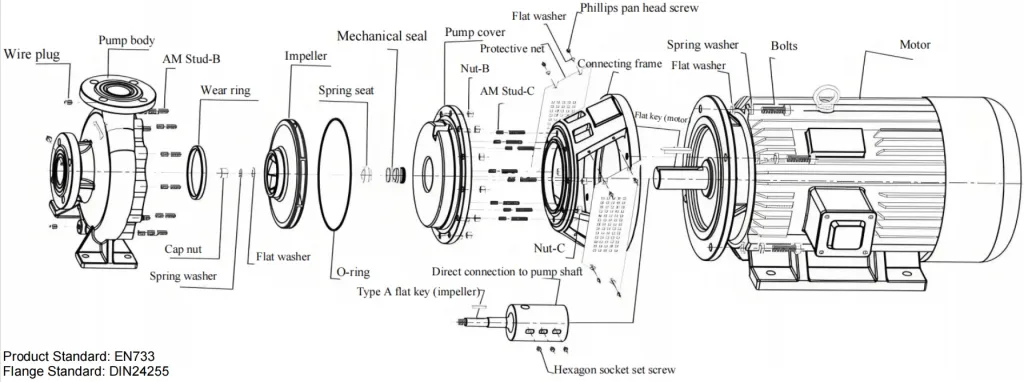

Horizontal centrifugal water pump parts primarily include the impeller, casing, shaft, bearings, and sealing assembly. Please see the following diagram of the Horizontal Centrifugal Water Pump for details:
Horizontal Centrifugal Water Pump Working Principle
Horizontal centrifugal pumps function by transforming mechanical rotation into fluid pressure and flow. As the impeller spins rapidly within its casing, it creates centrifugal force that accelerates the water radially outward. This high-velocity flow is then directed through a gradually expanding volute casing, where its speed is converted into stable pressure, efficiently discharging the liquid through the outlet pipeline.

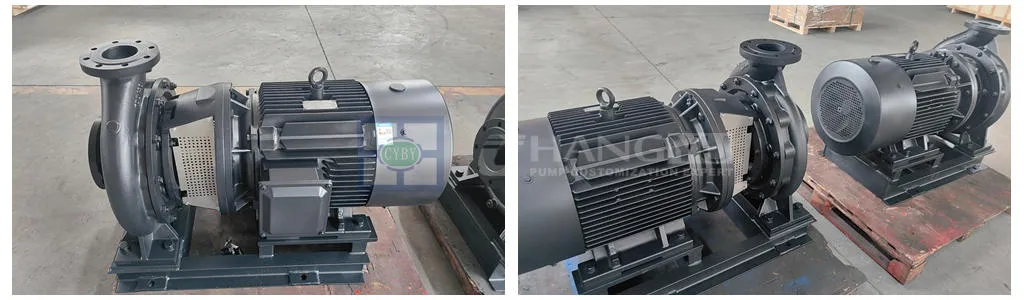

CYW Horizontal Centrifugal Water Pump Specifications
Features
- Equipped with a standard B35 motor, the pump shaft is directly connected to the motor shaft, featuring a compact design that minimizes floor space and facilitates system integration.
- No coaxial alignment adjustment is required after installation, ensuring high coaxial alignment accuracy, smooth operation, low vibration, and low noise levels.
- Features a closed-type fan-cooled three-phase asynchronous motor with excellent heat dissipation and high energy efficiency.
- The pump body and flow components are designed using an efficient hydraulic model, strictly adhering to ISO 2858 standards, ensuring reliable operation and excellent cavitation resistance.
Application
The CYW horizontal centrifugal pump is specifically designed for pumping clean water and liquids with physical and chemical properties similar to clean water. It is widely used in the following industries and applications:
- Municipal and construction sectors: urban water supply and drainage systems, pressure boosting for high-rise buildings, fire protection system pressure boosting, and landscape irrigation;
- Industrial Applications: Long-distance transportation of liquids with water-like quality, such as cooling water and washing water in industrial processes, as well as supply of circulating cooling water for air conditioning systems;
- HVAC and District Energy: Circulation and transportation of water-based media in heating, ventilation, and district energy systems;
- Other Applicable Scenarios: Also suitable for agricultural irrigation, aquaculture water supply and drainage, and general industrial medium transfer.
Custom Horizontal Centrifugal Water Pump
Changyu Pump specializes in the design and production of custom horizontal centrifugal water pumps, offering tailored solutions for a wide range of industrial, commercial, and municipal applications. We have advanced manufacturing capabilities and strict quality control systems, ensure every pump delivers high efficiency, reliability, and durability. Our product line includes various customizable models such as self-priming centrifugal pumps and magnetic driven pumps, capable of meeting diverse operational requirements and medium characteristics.
If you want a best pump solution, please provide details regarding flow rate, head, medium properties, temperature, and intended application. Our technical team will gladly assist you with product selection and customized support. Feel free to contact us for a formal quotation or additional technical information.
Request a free quote
Please fill in the details of your pumped liquid, including flow, head, specific gravity, and temperature, so we can recommend the best pump and provide a precise quote.
